Categories: Light flail mowers, Green Waste and Plant Residue Management Line

LIGHT SERIES TRACTOR FLAIL MOWER — 83 CM WORKING WIDTH, HOBBY USE

TLF 85

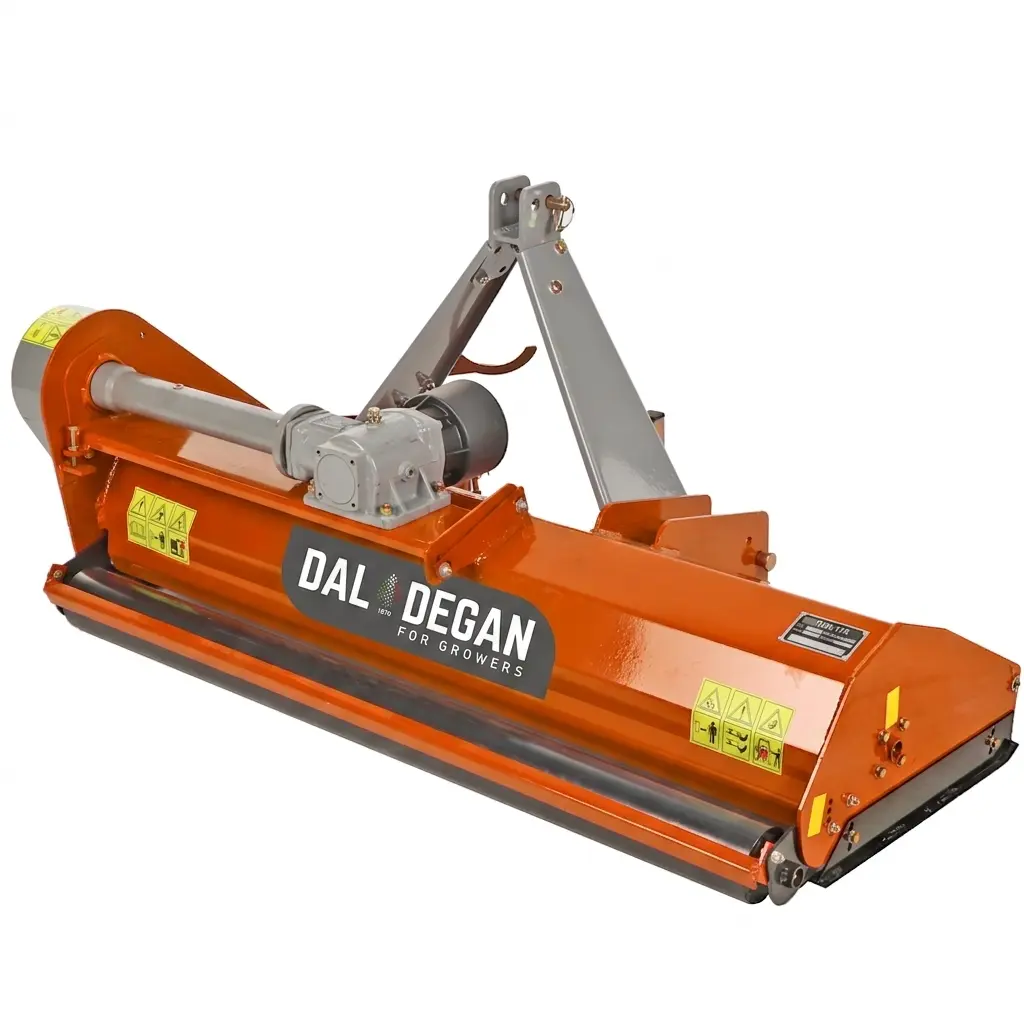

The Dal Degan TLF 85 tractor flail mower is a compact agricultural shredder designed for the maintenance of lawns, gardens, vegetable plots, family orchards, and small rural properties. Thanks to its 83 cm working width, its light weight of 138 kg, and a power requirement of up to 20 HP, it represents the ideal solution for hobbyists, private users, green space maintainers, and small farms looking for a simple, reliable, and easy-to-use machine. Compatible with mini tractors, compact tractors, and low-power agricultural tractors, the TLF 85 offers excellent maneuverability even in the tightest spaces, such as gardens, hobby vineyards, vegetable gardens, residential areas, and tree-lined paths. The cutting system consists of a double-spiral rotor with 12 hammers, designed to ensure uniform shredding of tall grass, spontaneous vegetation, light brush, and small twigs up to 20 mm in diameter. Internal counter-blades further improve the quality of the shredding, favoring an even distribution of plant material on the ground and accelerating its natural decomposition. Unlike many light flail mowers on the market, the TLF 85 is equipped with a robust three-belt side transmission, a solution normally reserved for higher-end models. This system allows for better power distribution and greater transmission durability over time, even during frequent use. The oil-bath gearbox with integrated free wheel protects the PTO shaft, bearings, and transmission from kickbacks generated during PTO shutdown, helping to reduce wear and maintenance. The PTO shaft is supplied as standard to allow for quick connection to the tractor. Standard equipment includes a 5-position adjustable rear roller, adjustable side skids, front protection flaps, counter-blades, transmission guard, and parking stand. An 11 cm manual side shift is also available, useful for working with greater precision along fences, field edges, and trees. The TLF 85 is the ideal choice for those seeking a compact tractor flail mower that is affordable and reliable for the maintenance of lawns, green areas, and small agricultural plots, guaranteeing excellent results with low operating costs.

Fields of Application

Technical Data

TYPE	REAR TRACTOR FLAIL MOWER, LIGHT SERIES, FIXED HITCH
REQUIRED TRACTOR POWER	UP TO 20 HP
STURDINESS / SERIES	LIGHT
NET WEIGHT	138 KG
PRODUCT DIMENSIONS (W × D × H)	96 × 85 × 72 CM
OFFSET	FIXED HITCH WITH 11 CM MANUAL ADJUSTMENT
3-POINT HITCH CATEGORY	CATEGORY 1
PTO ROTATION	CLOCKWISE
CUTTING WIDTH	83 CM
MAXIMUM WOOD CUTTING DIAMETER	UP TO 20 MM
NUMBER OF TOOLS (HAMMERS)	12
HAMMER WEIGHT	0.4 KG
BLADE BOLT DIAMETER	12 MM
ROTOR	DOUBLE SPIRAL
COUNTER-BLADES	SINGLE UNDERBODY ROW
SIDE TRANSMISSION	3-BELT
GEARBOX	OIL BATH GEARS, CAST IRON CASING, HARDENED STEEL GEARS
GEARBOX OIL CAPACITY	0.5 L (SAE 80/90)
FREEWHEEL DEVICE	INTEGRATED IN THE GEARBOX
PTO SHAFT	INCLUDED
POWER TAKE-OFF	1 3/8″ Z6 STANDARD
REAR SUPPORT ROLLER	ADJUSTABLE IN 5 POSITIONS, WITH GREASE NIPPLES
SIDE SKIDS	ADJUSTABLE, STANDARD
FRONT PROTECTION FLAPS	SHAPED STEEL, STANDARD
SUPPORT STAND	STANDARD
INSTRUCTION MANUAL	INCLUDED
PACKAGING	ON PALLET IN IRON CRATE (110 × 75 × 60 CM)
WEIGHT INCLUDING PACKAGING	148 KG
DELIVERY WITH HYDRAULIC TAIL LIFT	YES
ASSEMBLY TIME	APPROX. 15 MINUTES
