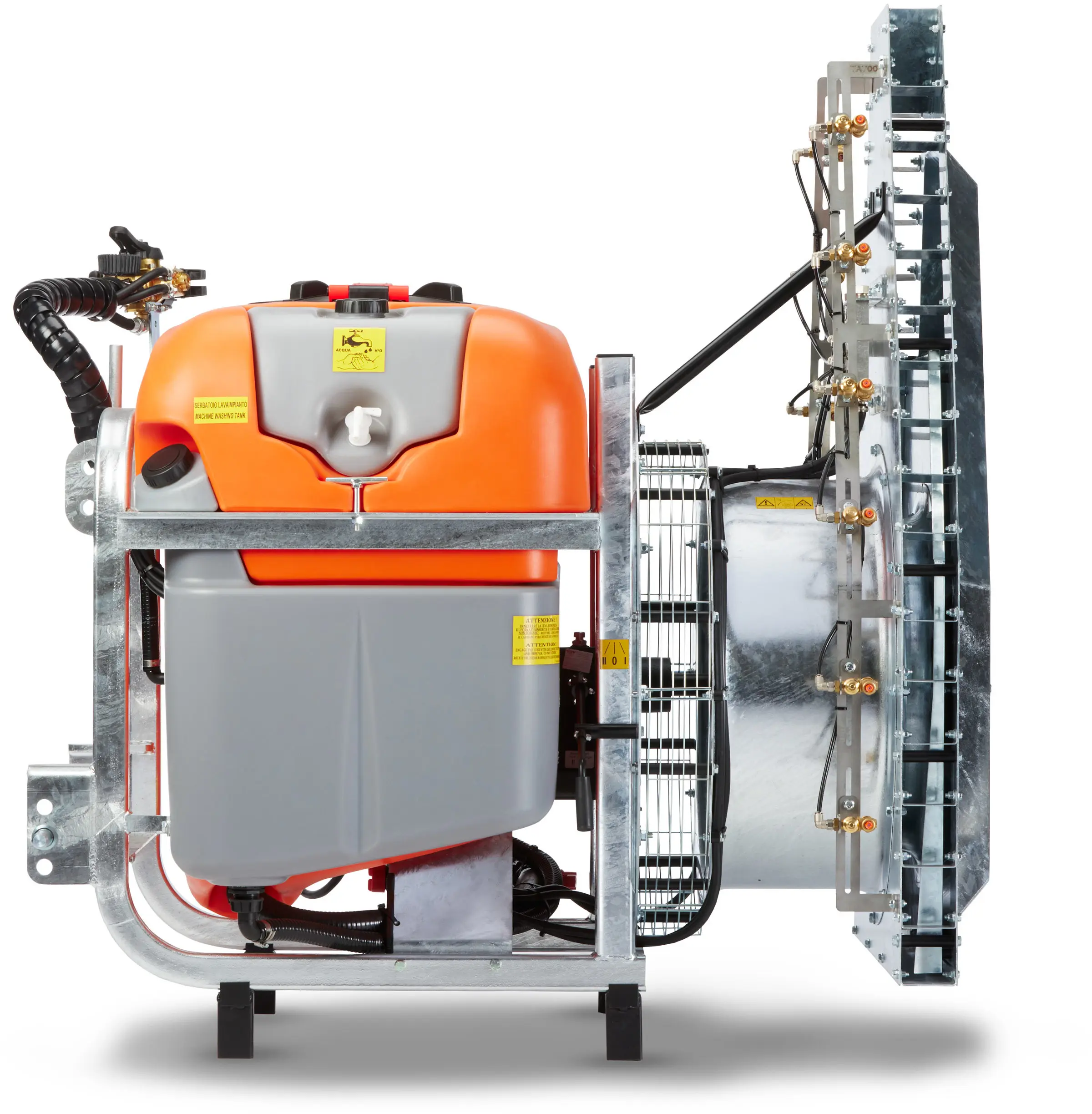

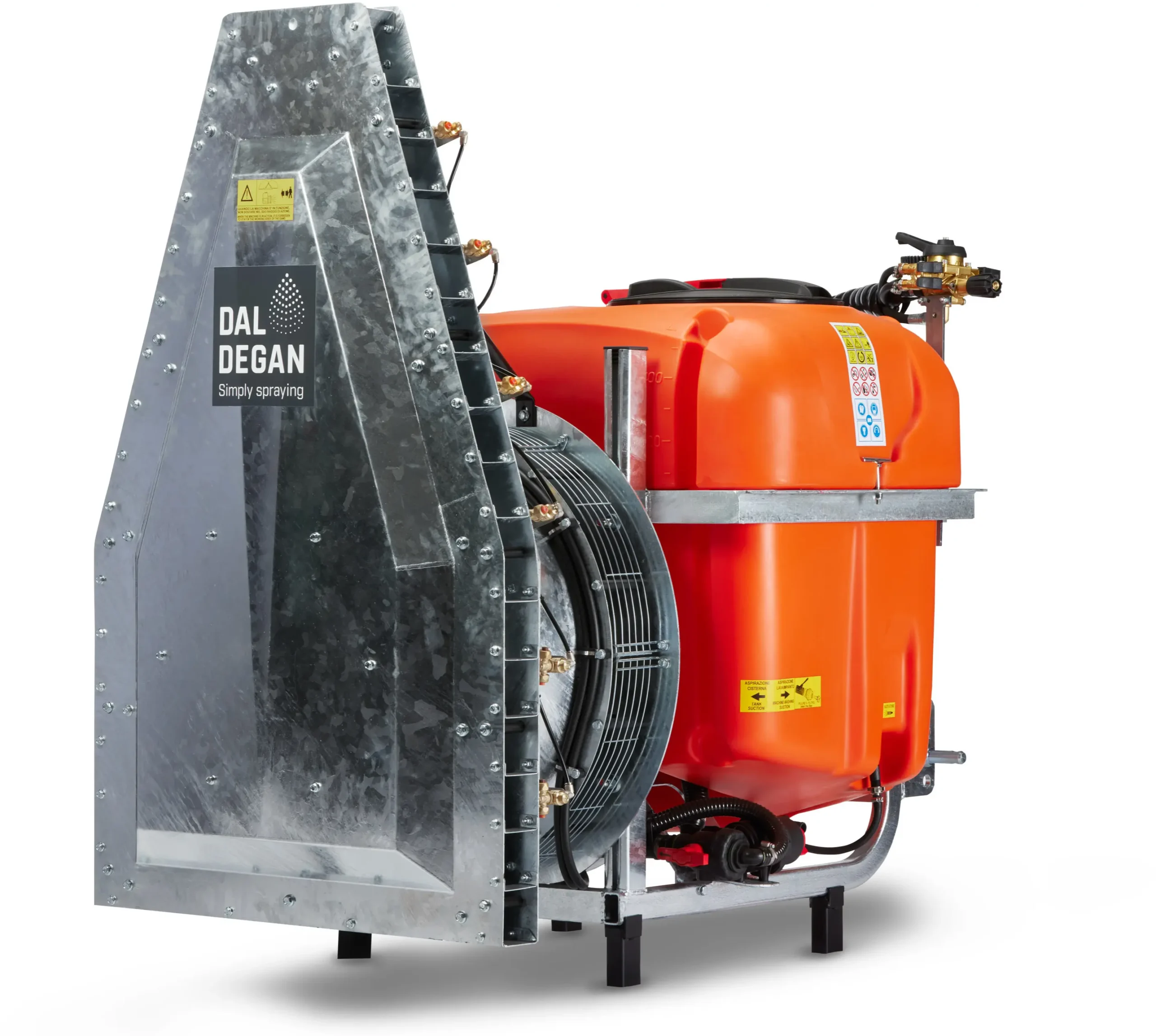

MOUNTED TOWER ATOMIZER WITH AXIAL FAN — 200, 300, 400, 600 LITERS

Iridium MN

The Iridium MN is the Dal Degan mounted atomizer designed for professional phytosanitary treatments in vineyards, orchards, and olive groves, where high distribution quality, waste reduction, and uniform coverage even of the highest parts of the vegetation are required. It is available with 200, 300, 400, and 600-liter tanks, adapting to both small farms and professional operations. The heart of the machine is the special high-efficiency conveyor tower, developed through advanced fluid dynamics simulations and field tests. This system maintains constant air speed and volume throughout the path, ensuring excellent canopy penetration and uniform product distribution even in the upper areas of the plants. Ventilation is provided by a front-suction axial fan with adjustable nylon-glass helical blades. This solution ensures high airflow, lower noise, and reduced power consumption. The blades also use a special antibacterial compound that helps limit the transfer of pathogens between different plots. The two-speed plus neutral gearbox allows the ventilation to be adapted to different crops, optimizing consumption and performance. The distribution system uses double brass nozzle holders with anti-drip system and ATR nozzles positioned outside the main airflow. This configuration improves mist quality, reduces product loss, and increases treatment effectiveness. The machine is completed by the high-resistance galvanized frame and the shockproof polyethylene tank. The Iridium MN represents a professional solution for those seeking a mounted atomizer for vineyards and orchards capable of combining efficiency, reliability, and low operating costs.

Fields of Application

Professional trellised, counter-trellised and pergola vineyards
Row orchards with standard and high canopies
Professional olive groves
Specialized tree crops (kiwi, citrus, pomegranate)
Treatments on high areas of orchards thanks to the tower with channeling
Contractors on different client farms (advantage of antibacterial compound)
Structured farms focused on reducing fuel consumption
Low-volume treatments with off-flow ATR nozzles

Technical Data

TYPE	TOWER-MOUNTED ATOMIZER
TANK CAPACITY	200 – 300 – 400 – 600 L
TANK MATERIAL	COMPACT AND RESISTANT POLYETHYLENE
FRAME	PROPERLY SIZED GALVANIZED STEEL
VENTILATION SYSTEM	AXIAL IMPELLER WITH FRONT INTAKE

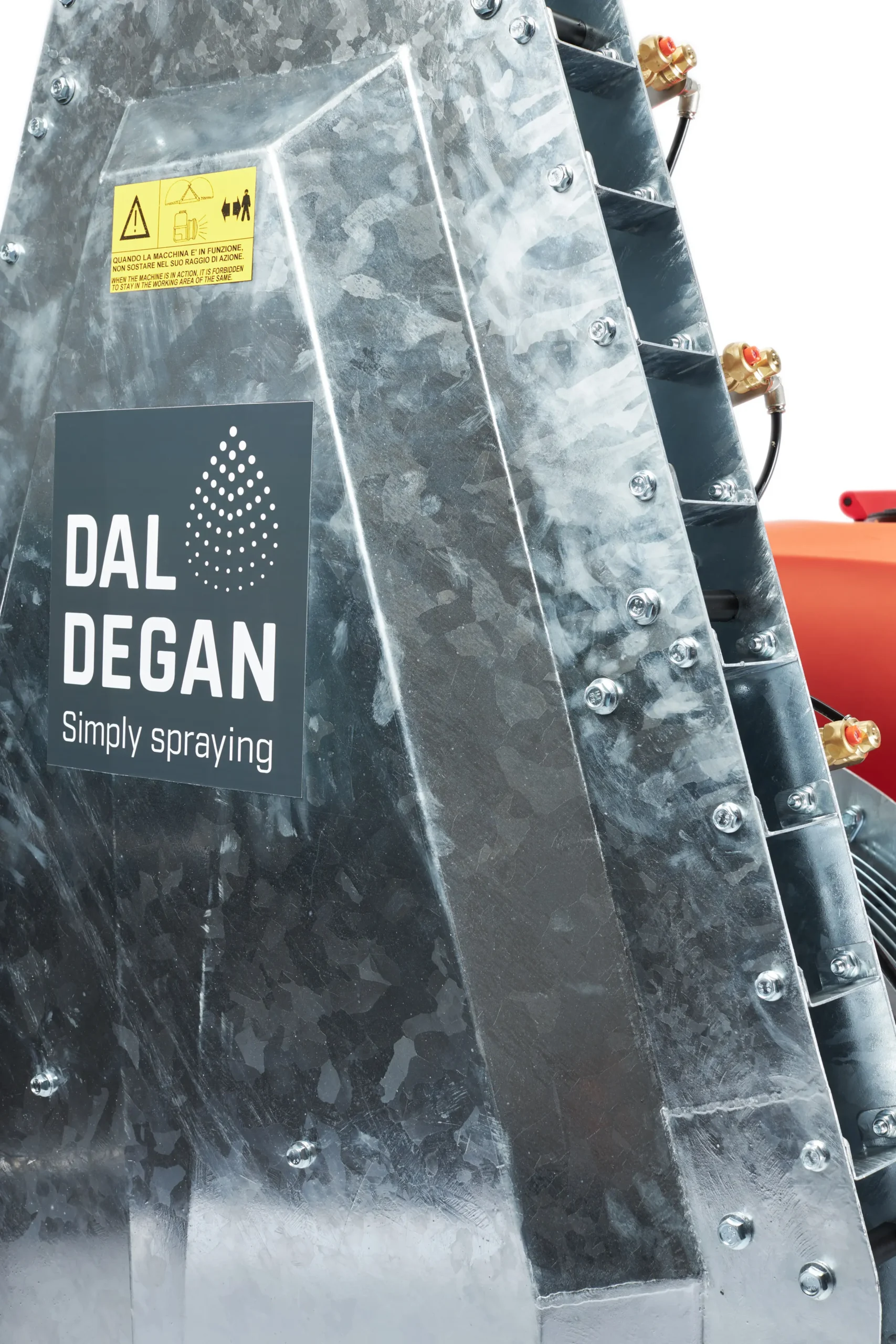

TOWER	WITH CHANNELING SYSTEM AND UPPER FLOW PRESERVATION
AVAILABLE FAN DIAMETERS	600 – 700 – 800 – 900 mm
FAN WIDTH	35 – 45 – 55 – 65 cm (depending on configuration)
BLADES	HELICAL NYLON-GLASS WITH ANTIBACTERIAL COMPOUND, ADJUSTABLE
GEARBOX	2-SPEED + NEUTRAL, WITH CUSTOMIZED GEAR RATIOS
MINIMUM TRACTOR SPEED	FROM 200 L: 10 L/min PUMP AND BASE CONFIGURATION
NOZZLE HOLDERS	DOUBLE BRASS, OFF-FLOW
ANTI-DRIP DIAPHRAGM	YES, STANDARD
NOZZLE TYPE	ATR (TURBULENCE), WITH FINE ADJUSTMENT
FAN RPM	FROM 1,500 TO 2,100 rpm (according to configuration)
EMPTY WEIGHT	FROM 75 TO 140 kg (according to configuration)
WIDTH	FROM 1,480 TO 1,680 mm

Benefits

Four available capacities: 200, 300, 400 or 600 liters for different areas
Tower with flow channeling: perfect spraying even in high areas
Helical antibacterial nylon-glass blades: does not transmit diseases between plants
Reduced noise thanks to the helical geometry of the blades
Easily adjustable blades: air flow adaptable to treatment
2-speed + neutral gearbox: ventilation adjustment and disengagement
Lower power consumption: lower tractor fuel consumption
Double off-flow brass nozzles: optimal distribution and durability
ATR nozzles with fine adjustment: precise calibration of each nozzle
Standard anti-drip diaphragm: no waste during maneuvers
Galvanized steel frame: corrosion resistance and multi-year durability
Italian aesthetics and Dal Degan design based on 150 years of experience
Computer fluid dynamics analysis and dedicated physical testing
