COMPACT MOUNTED MIST BLOWER WITH REAR-SUCTION AXIAL FAN — 200 OR 300 LITERS

Kronos MN 200-300

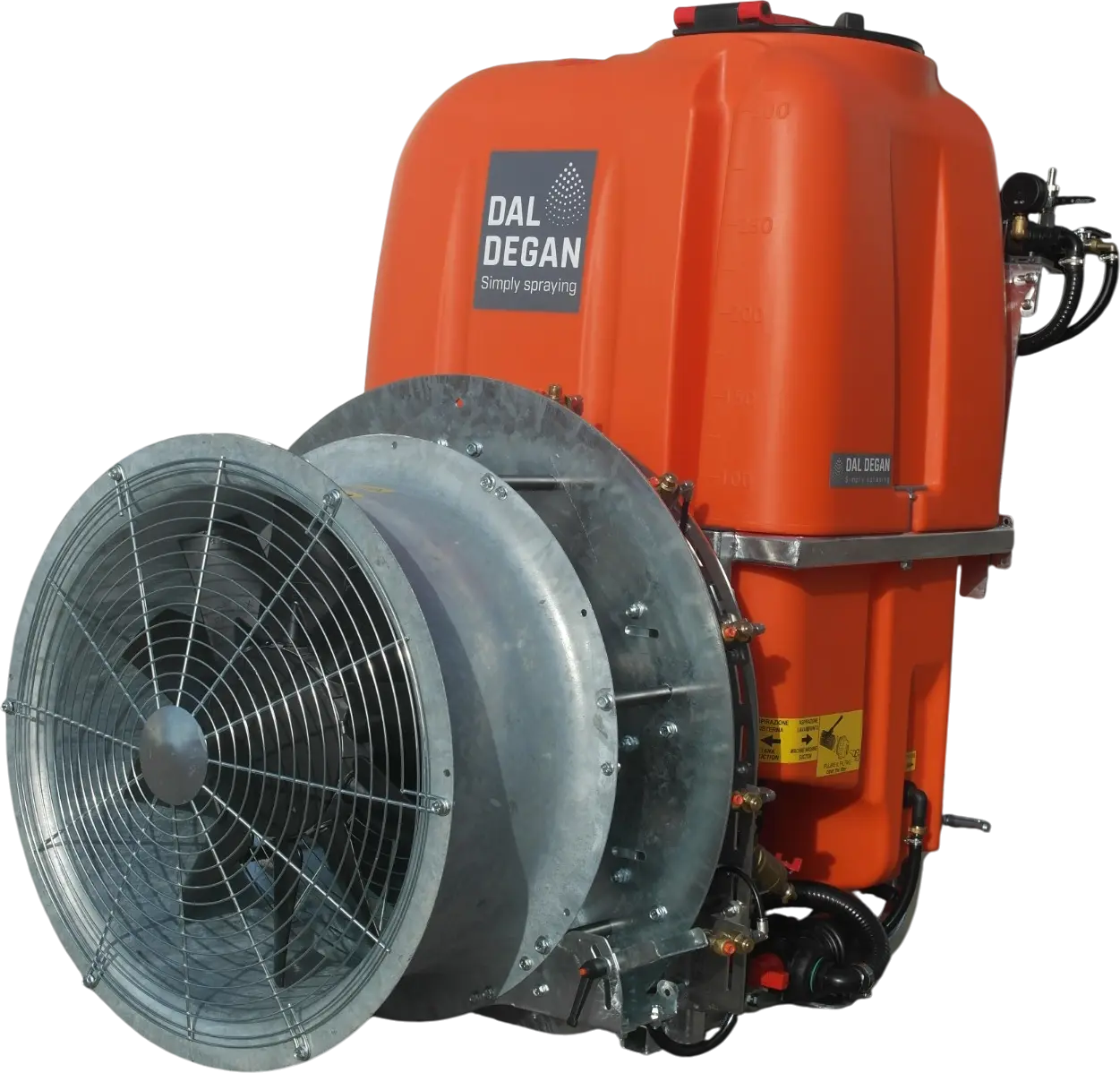

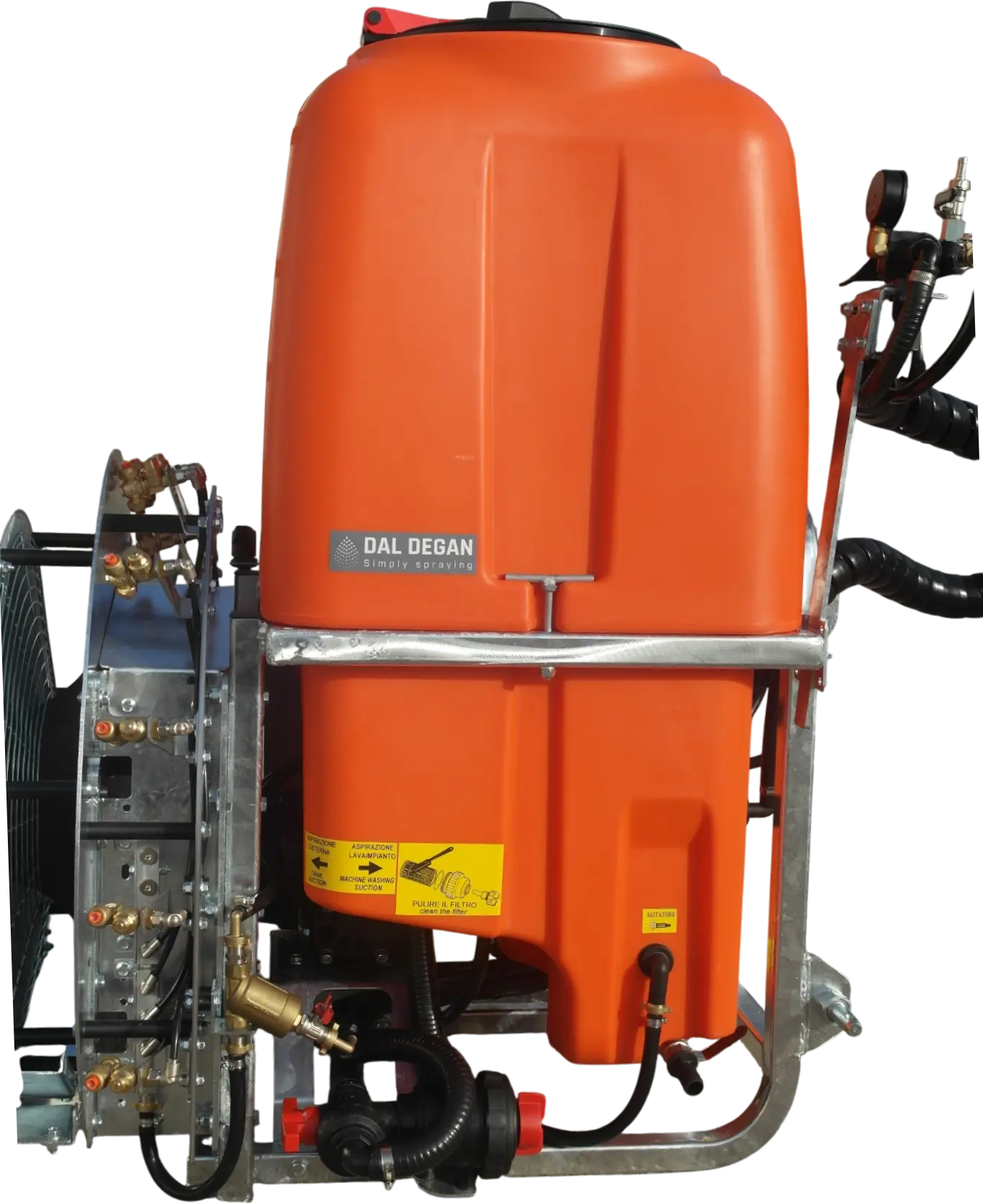

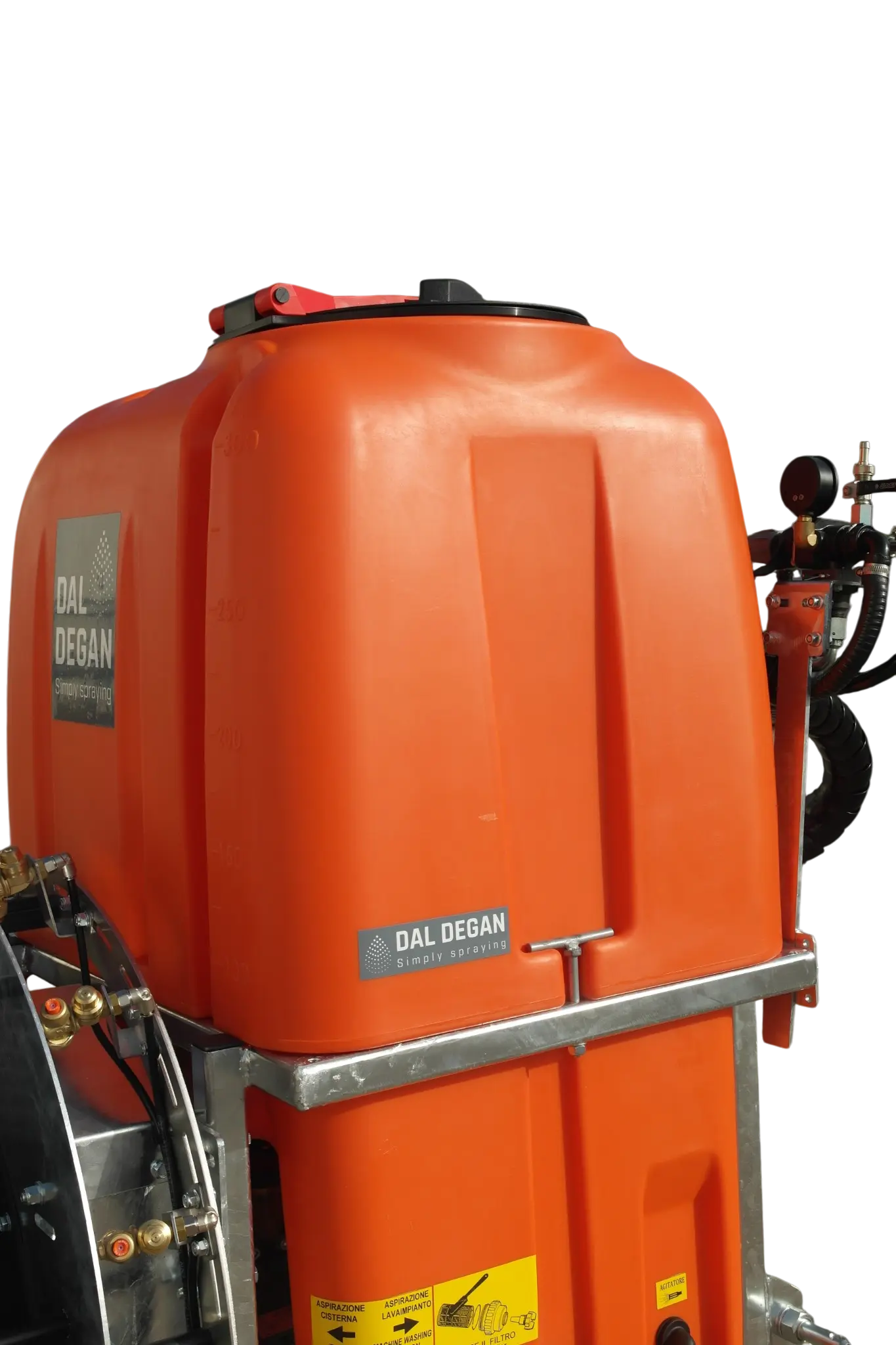

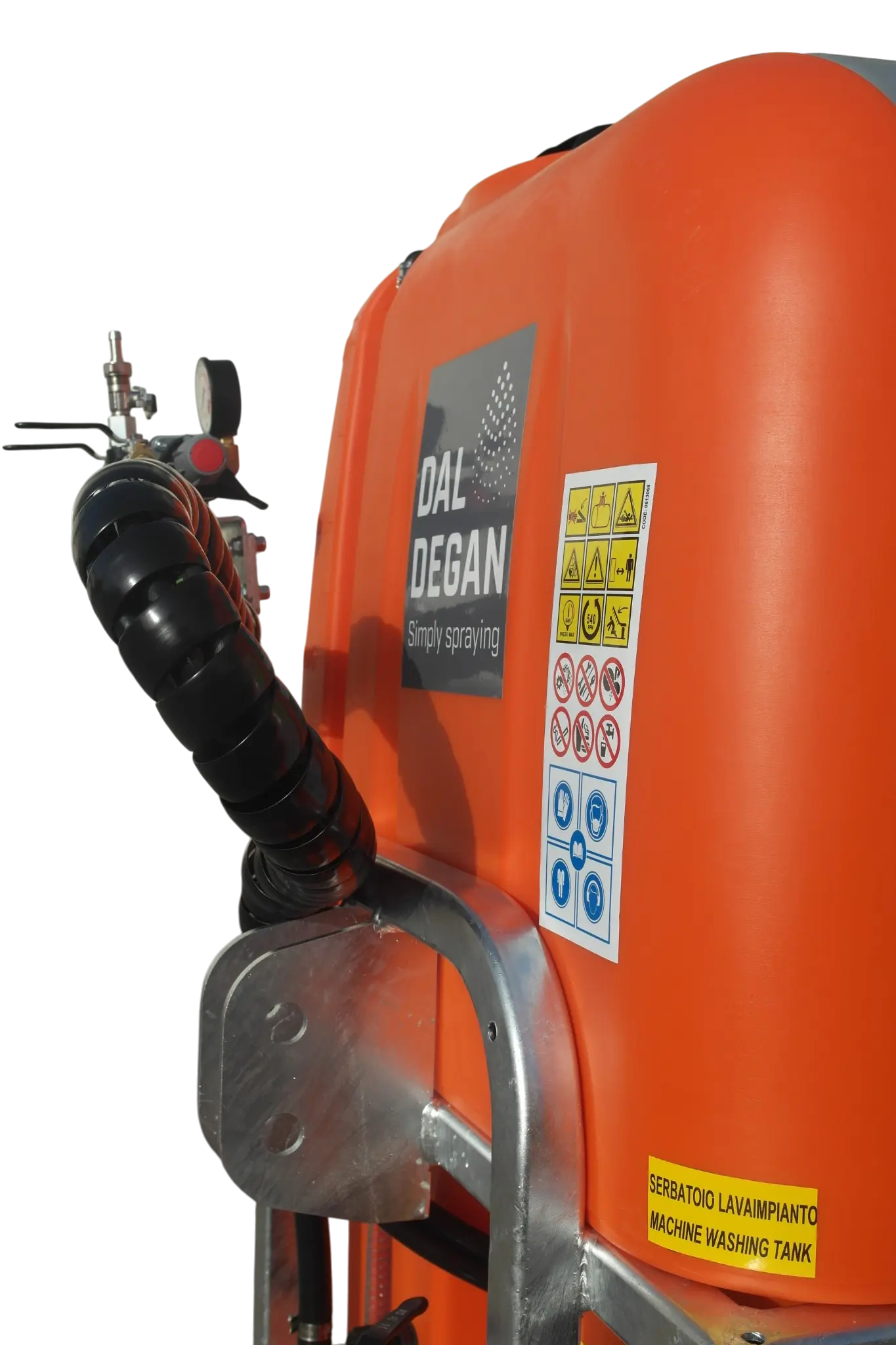

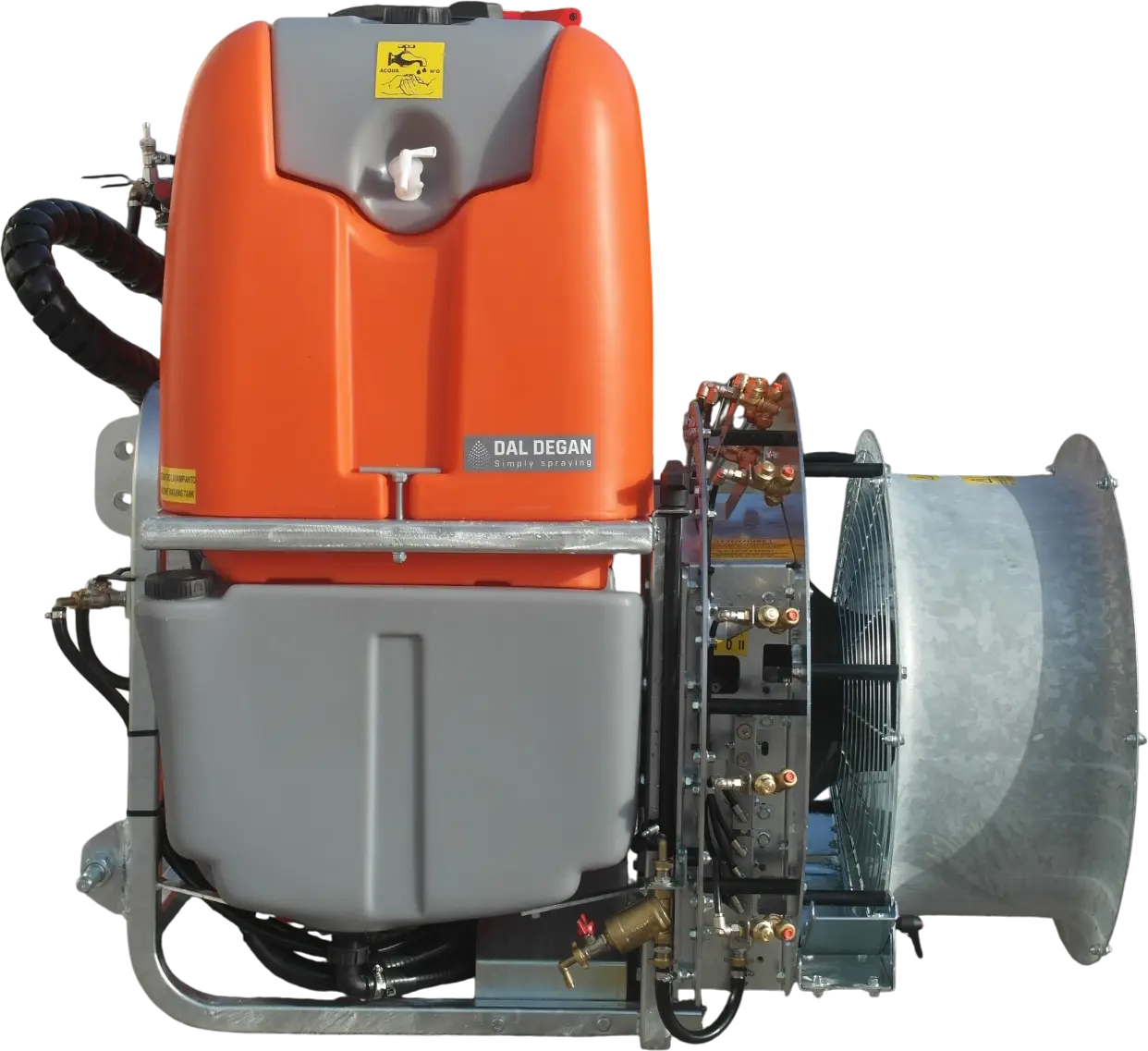

The Kronos MN 200-300 is the Dal Degan mounted mist blower designed for small and medium-sized vineyards, orchards, and olive groves, ideal for farms using specialized or low-power tractors. Thanks to the 200 or 300-liter tank, it represents a compact, maneuverable, and versatile solution for professional phytosanitary treatments. The ventilation system uses a rear-suction axial fan, a solution that reduces overall dimensions and improves maneuverability in narrow rows and hilly terrain. The adjustable helical blades in antibacterial nylon-glass guarantee high airflow, reduced noise, and uniform treatment distribution, while also helping to limit the transfer of pathogens between different plots. The two-speed plus neutral gearbox allows the air volume to be adapted to different crops and vegetative densities, reducing power absorption and fuel consumption. The distribution system is equipped with double brass nozzle holders, ATR nozzles, and an anti-drip system. This configuration ensures precise atomization, homogeneous coverage of the vegetation, and a significant reduction in waste during maneuvers. The galvanized frame and high-resistance polyethylene tank guarantee reliability and long-term durability. The Cat. 1 and 2 three-point hitch allows for pairing with numerous types of agricultural tractors. The Kronos MN 200-300 is the ideal choice for those seeking a compact, efficient, and easy-to-use mounted mist blower for vineyards and orchards, maintaining high quality standards in crop protection.

Fields of Application

Advanced hobby vineyards and small professional vineyards
Small and medium-sized orchards
Small and medium-sized olive groves
Specialized tree crops with compact spacing
Hillside vineyards with close spacing
Small farms with specialized tractors
Phytosanitary treatments on professional vegetable gardens and nurseries
Landscape maintenance on large residential properties

Technical Data

TYPE	COMPACT MOUNTED ATOMIZER
TANK CAPACITY	200 – 300 L

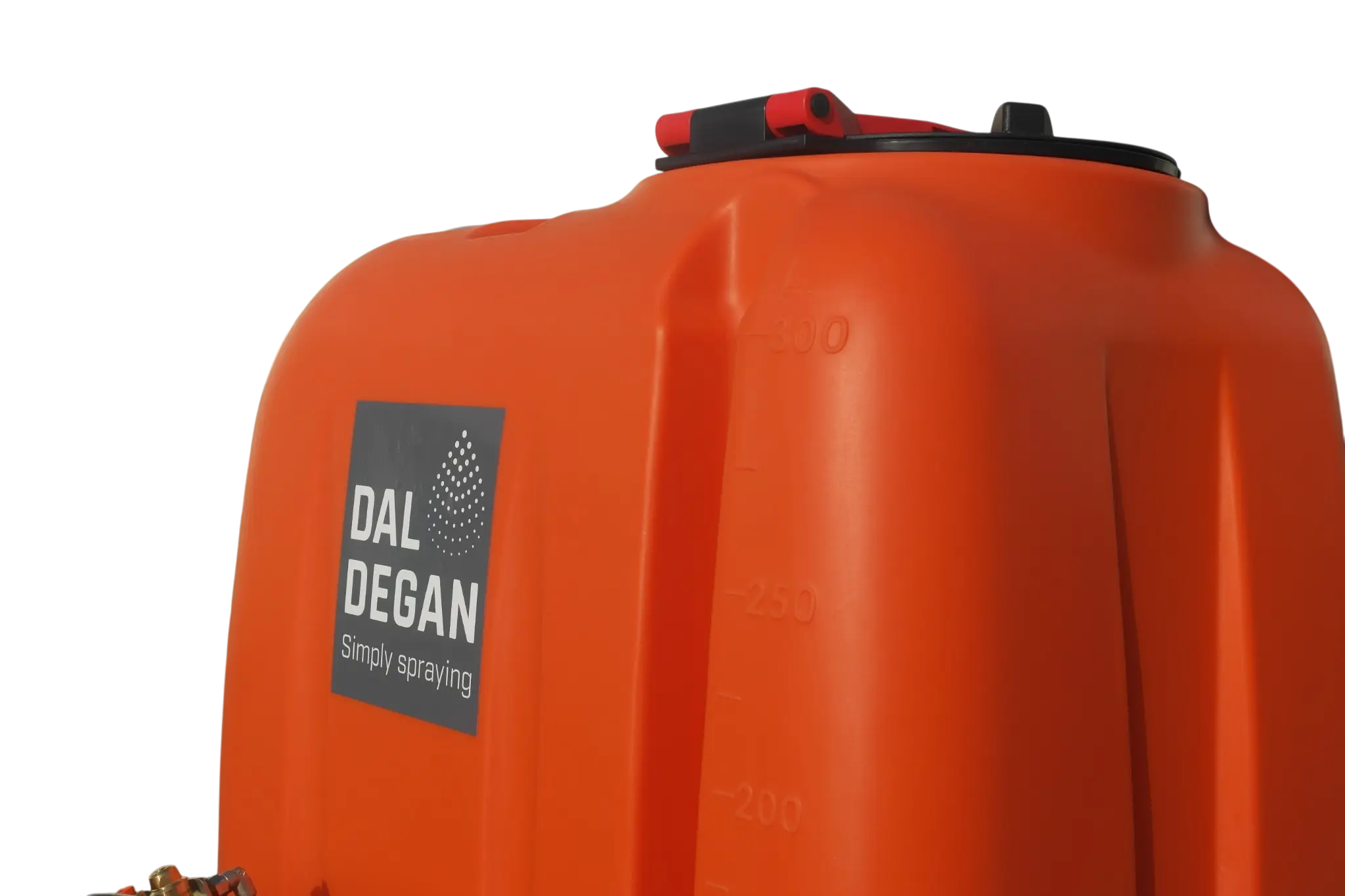

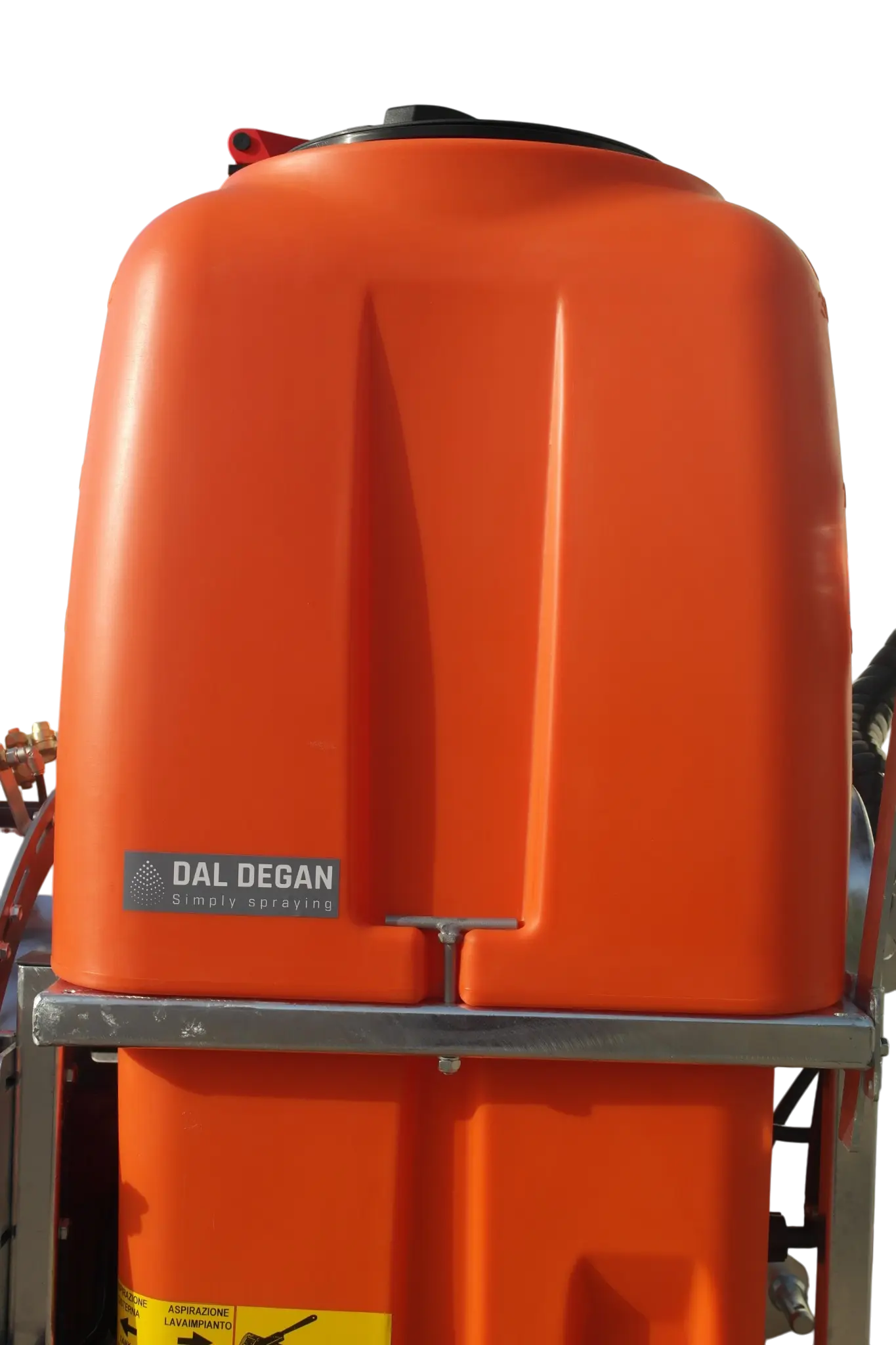

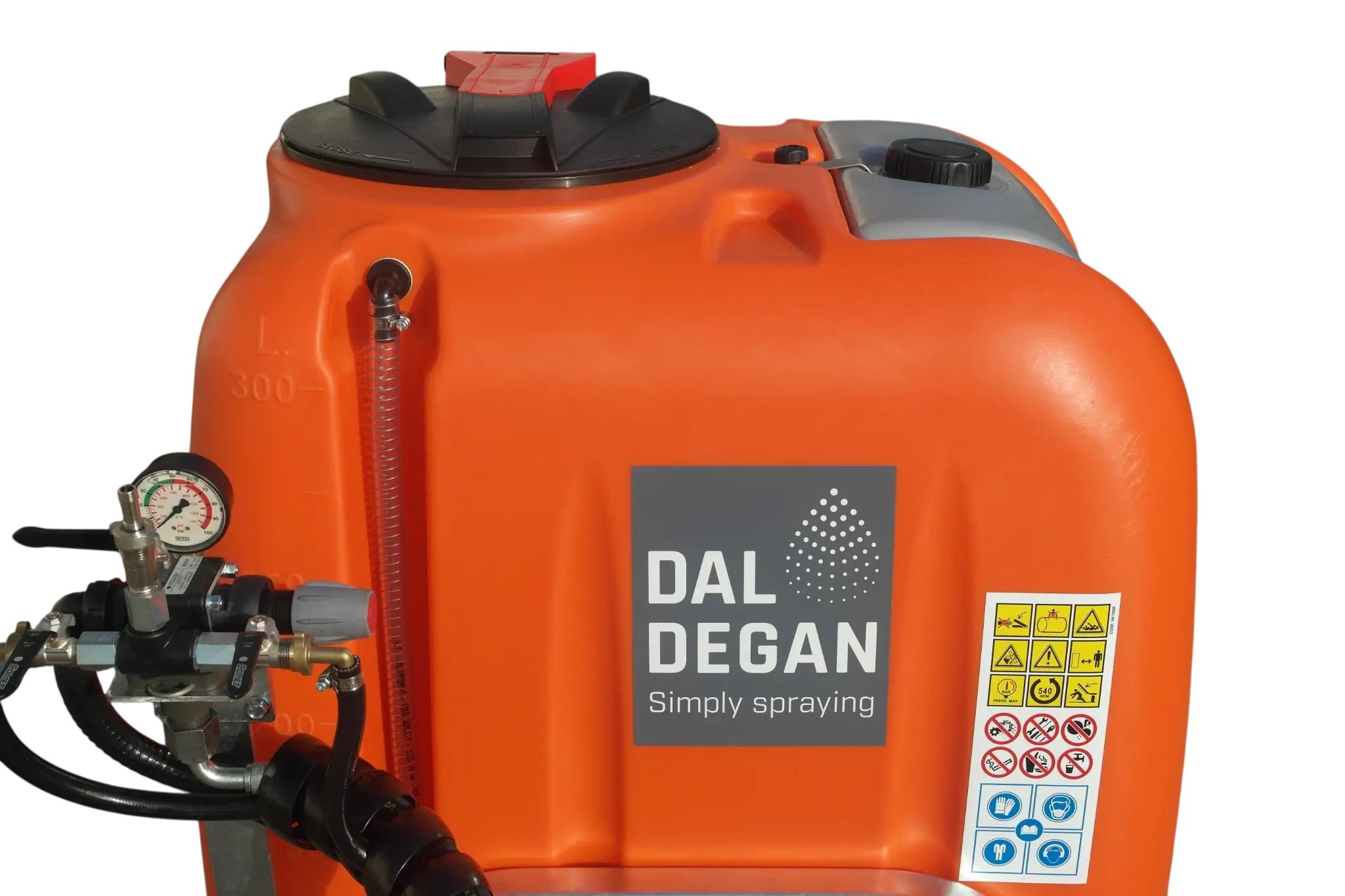

TANK MATERIAL	COMPACT AND RESISTANT POLYETHYLENE
FRAME	PROPERLY SIZED GALVANIZED STEEL

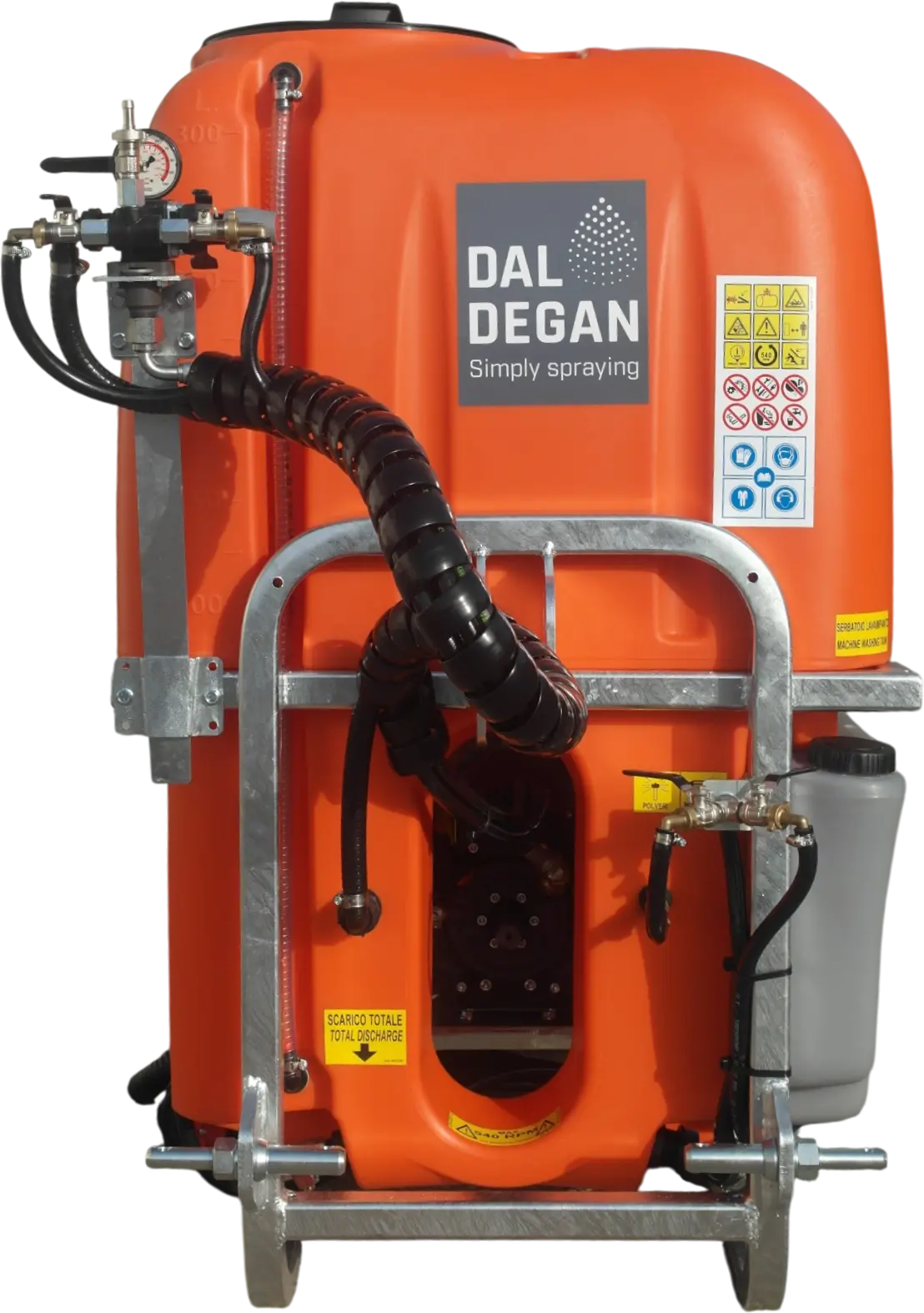

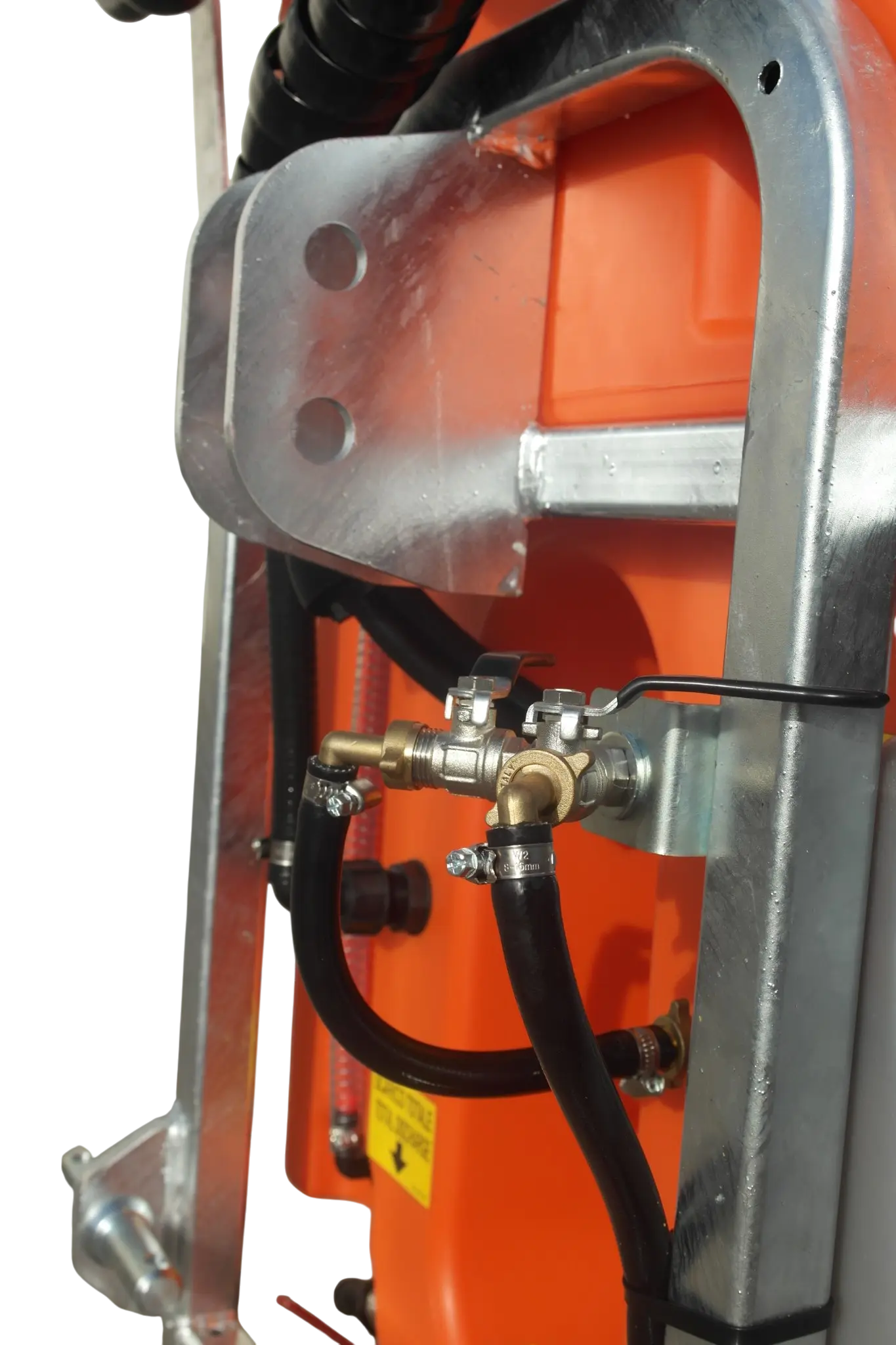

TRACTOR HITCH	THREE-POINT CAT 1/2 WITH DOUBLE PIN 25/28 mm

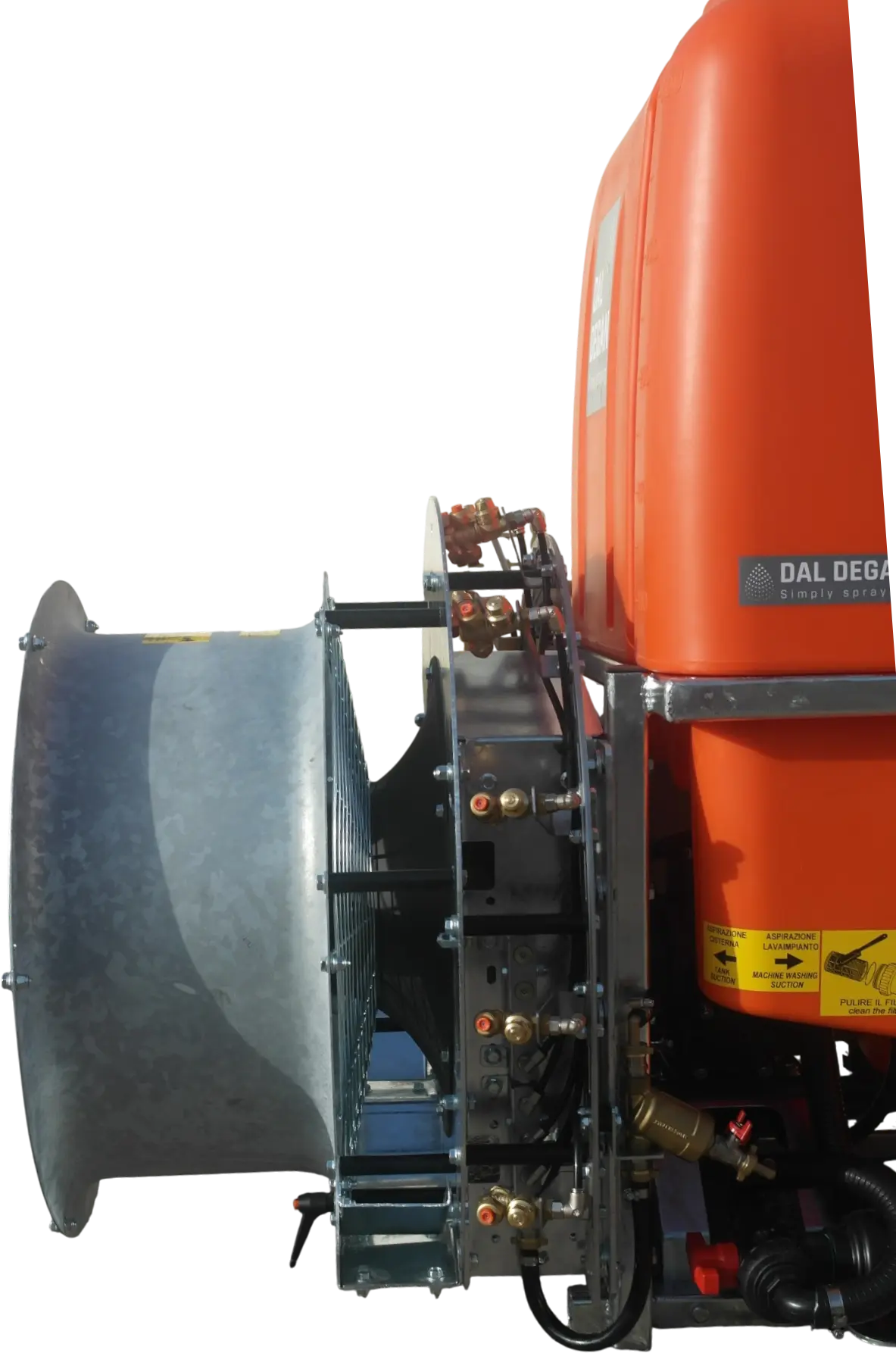

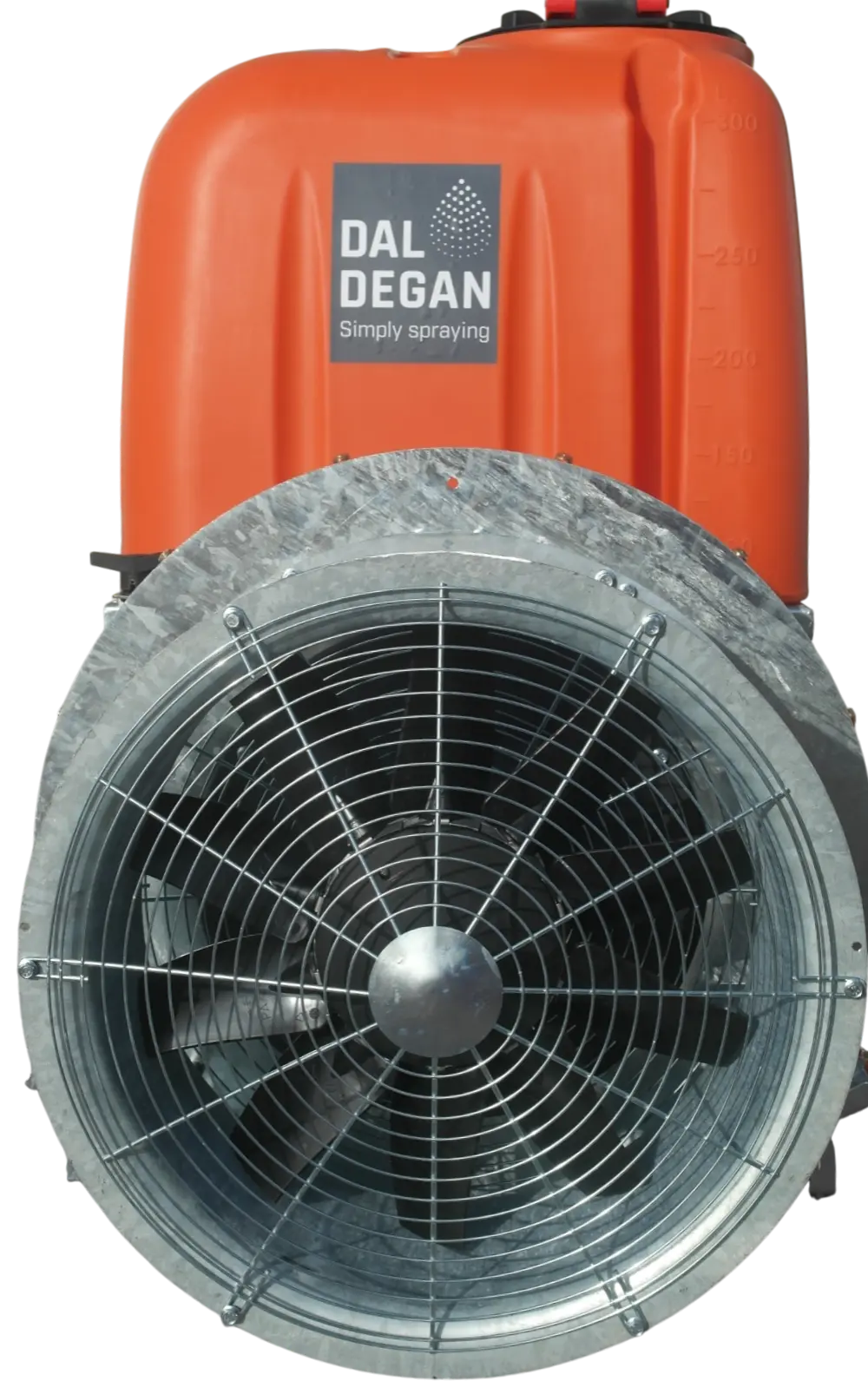

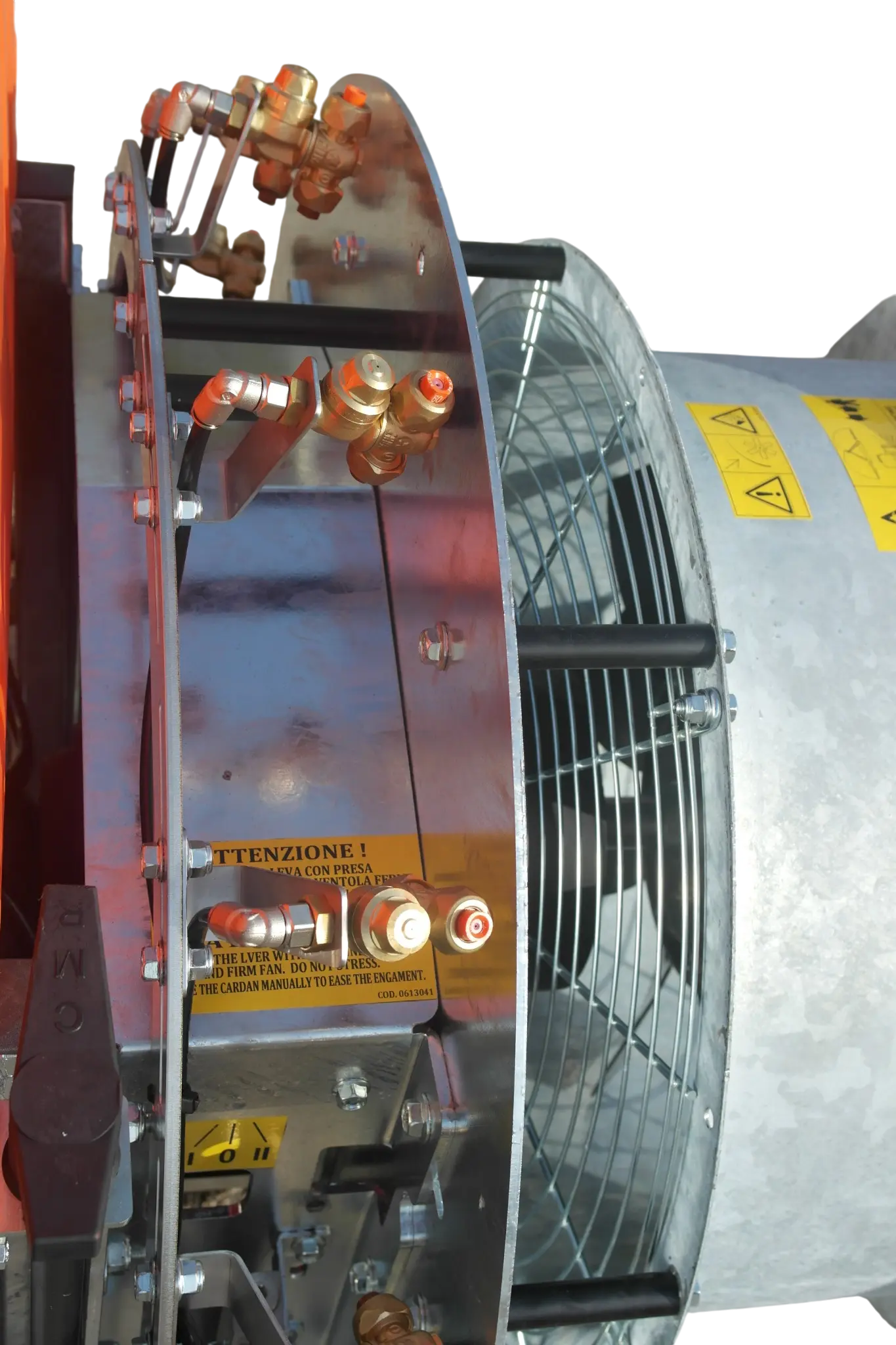

VENTILATION SYSTEM	REAR SUCTION AXIAL IMPELLER
FAN DIAMETER	600 mm (200 L version) – 700 mm (300 L version)
FAN WIDTH	35 (200 L) – 45 (300 L) cm
BLADES	HELICAL NYLON-GLASS WITH ANTIBACTERIAL COMPOUND, ADJUSTABLE
GEARBOX	2-SPEED + NEUTRAL, WITH CUSTOMIZED GEAR RATIOS

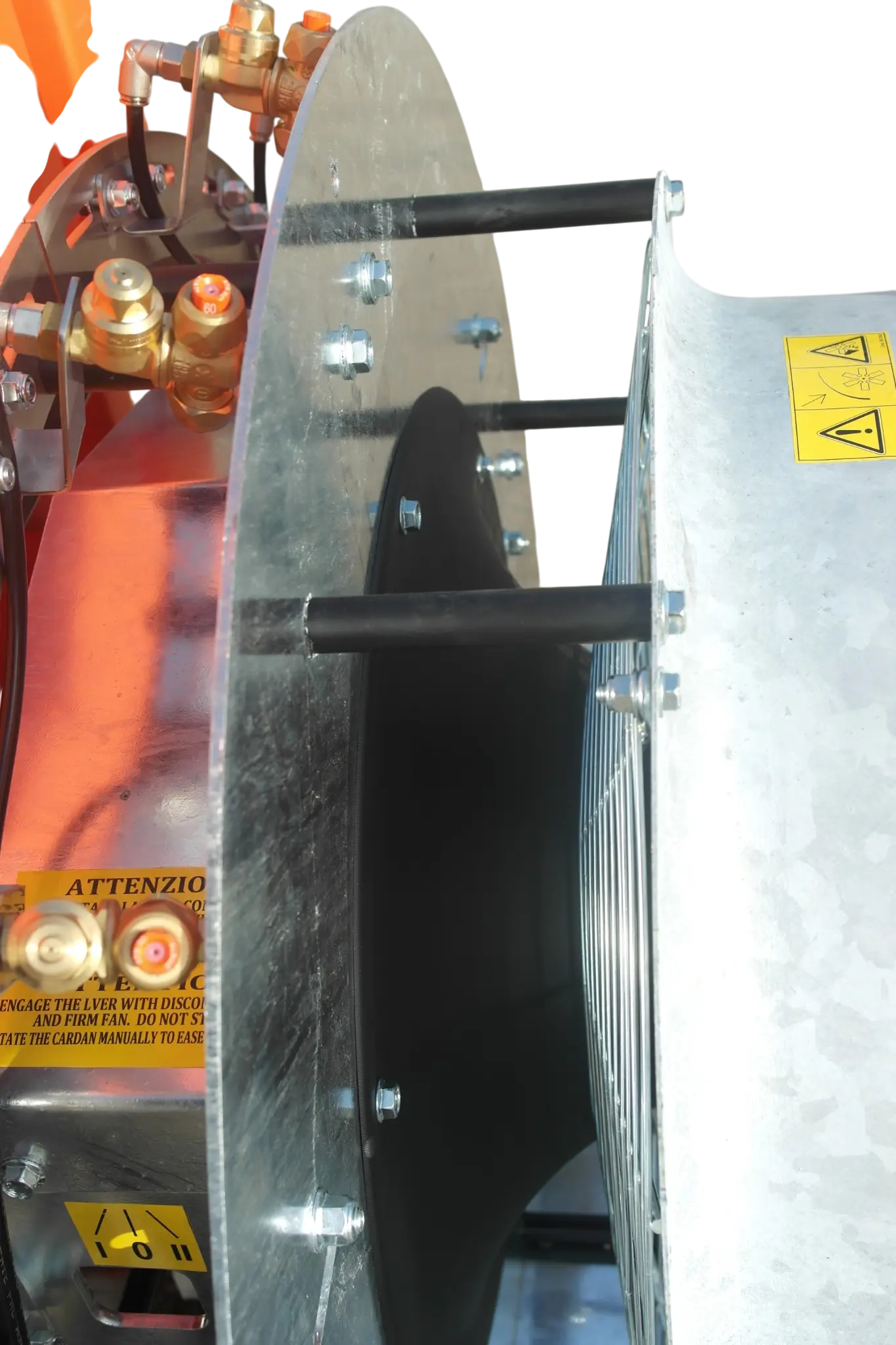

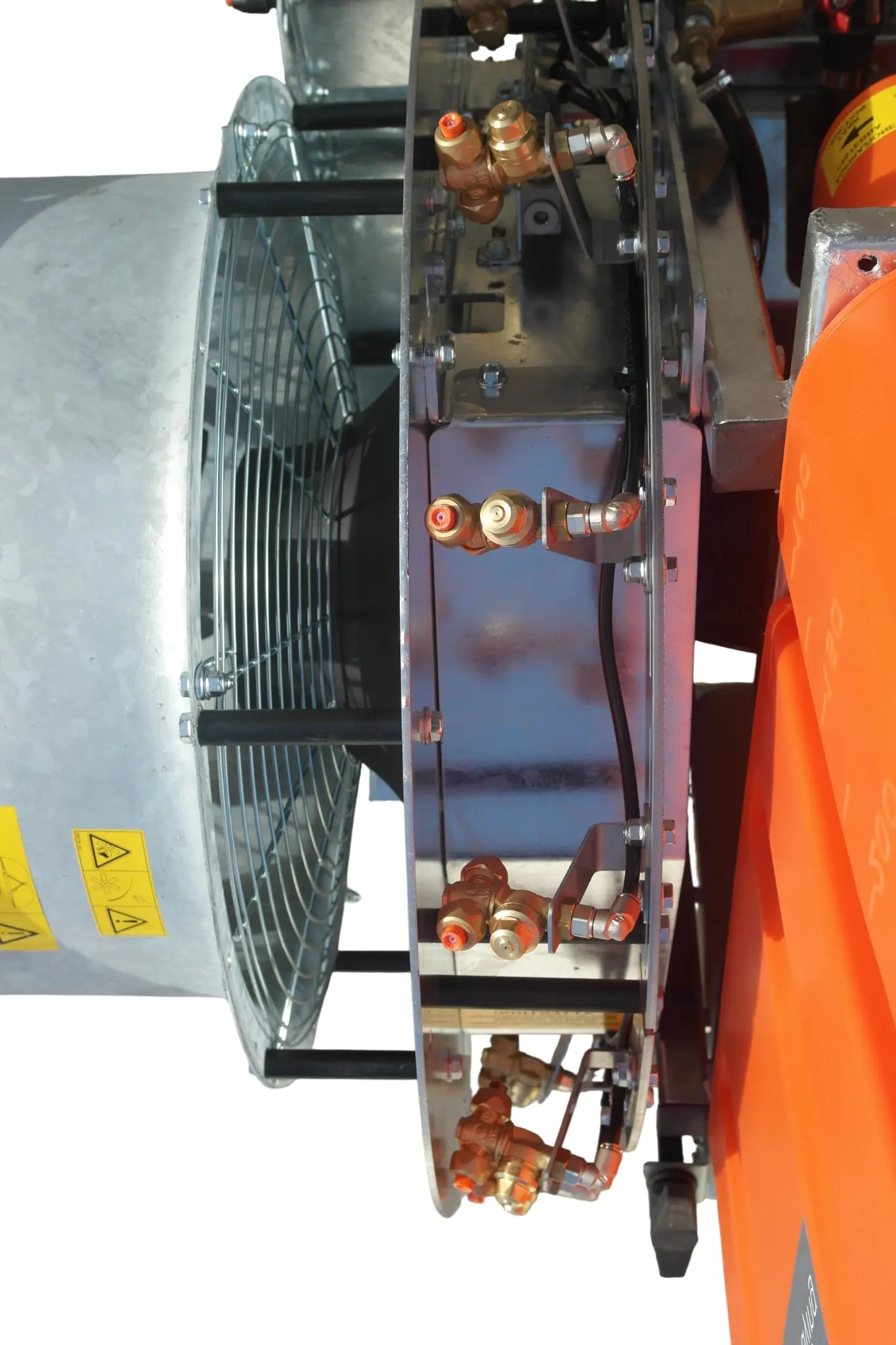

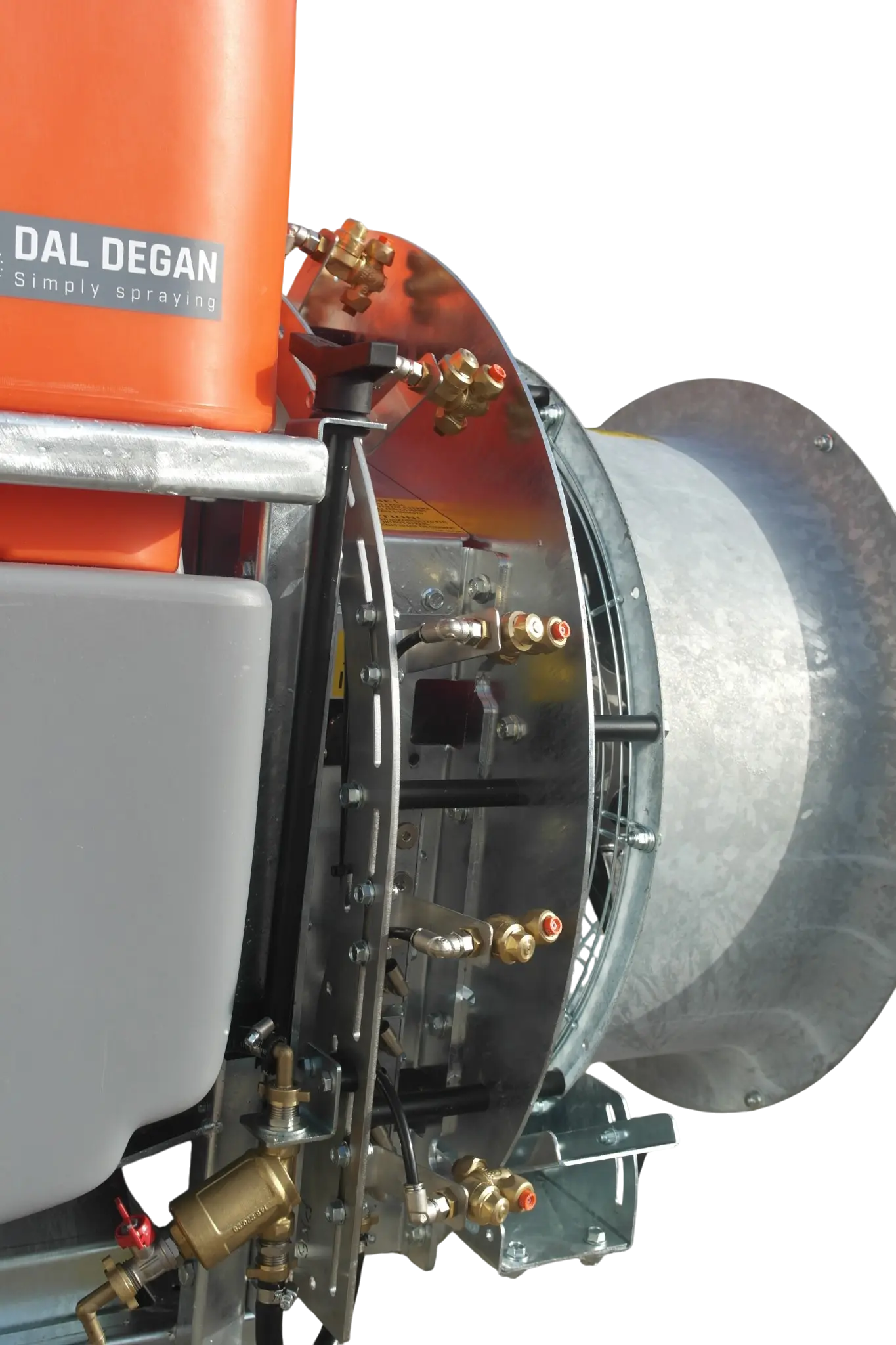

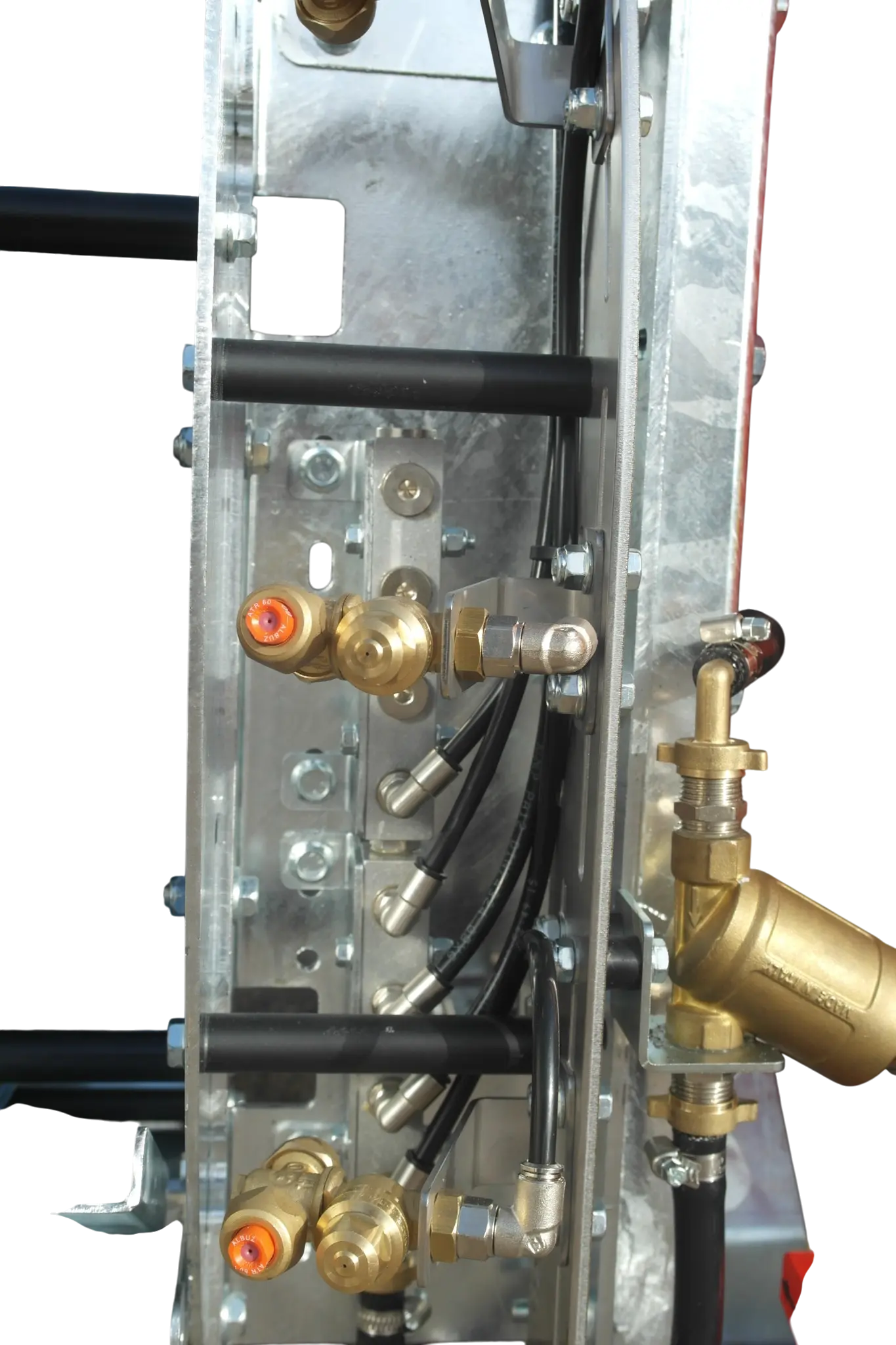

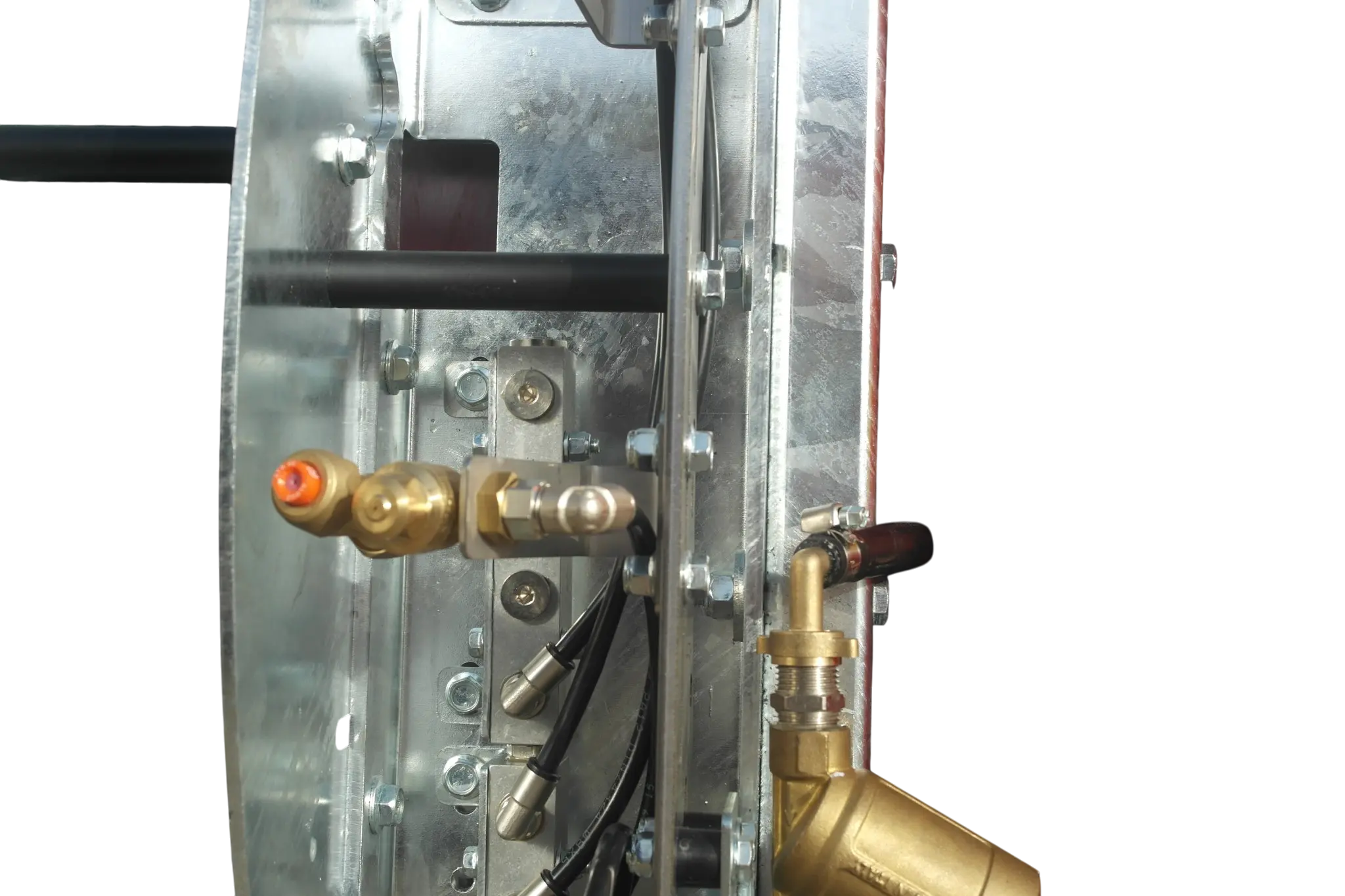

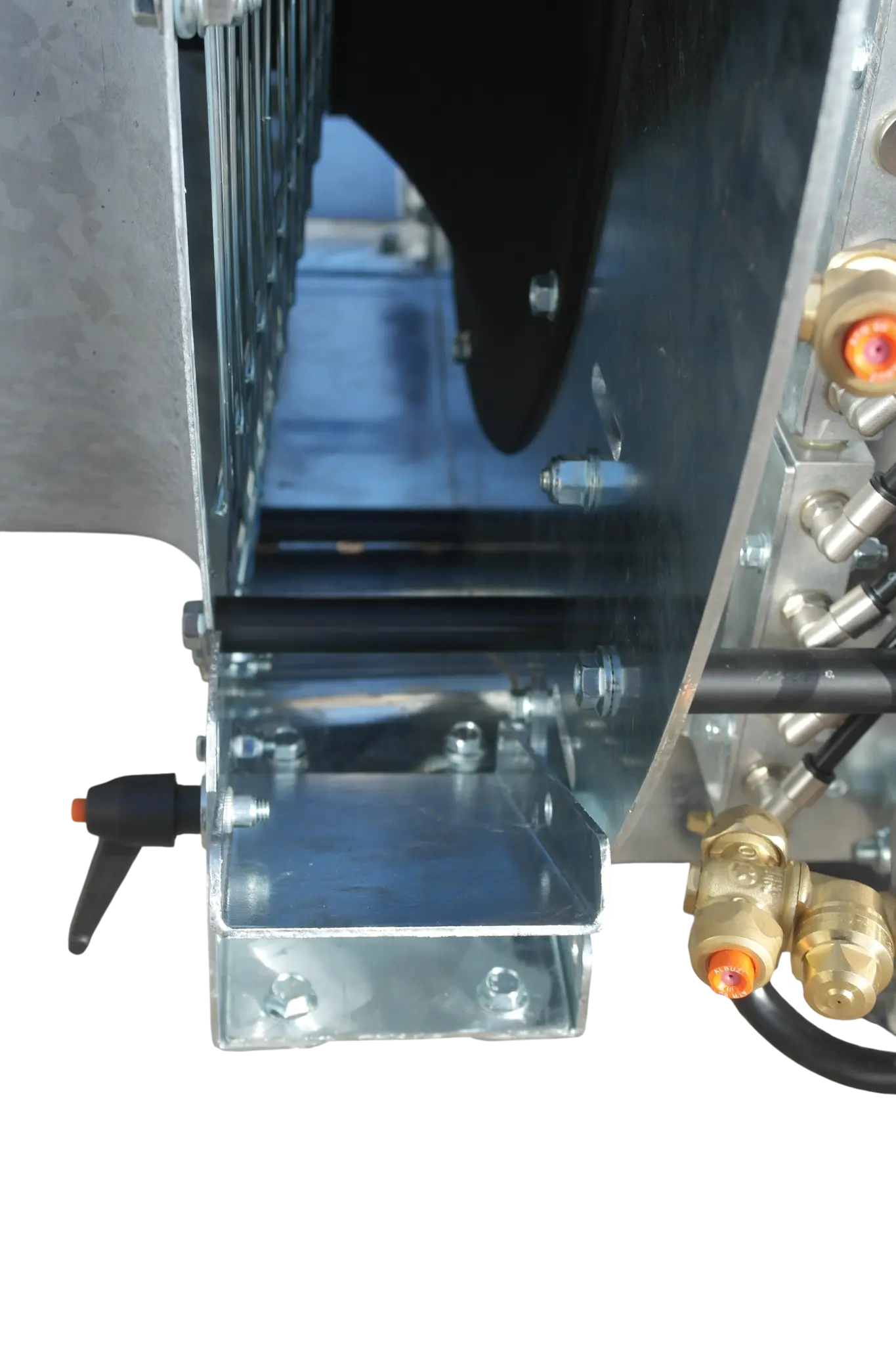

NOZZLE HOLDERS	DOUBLE BRASS, OUT-OF-FLOW
ANTI-DRIP DIAPHRAGM	YES, STANDARD
NOZZLE TYPE	ATR (TURBULENCE), WITH FINE ADJUSTMENT
FAN RPM	1,480 (200 L) – 1,490 (300 L)
EMPTY WEIGHT	FROM 160 kg (200 L) – 190 kg (300 L)
LENGTH	860 mm
WIDTH	1,100 mm (200 L) – 1,300 mm (300 L)

Benefits

Compactness and maneuverability: ideal for hillside vineyards and compact orchards
Rear suction: shorter machine length
Two capacities available: 200 or 300 liters for small and medium farms
Helical antibacterial nylon-glass blades: does not transmit diseases between plants
Reduced noise thanks to helical blade geometry
2-speed + neutral gearbox: ventilation adjustment and disengagement
Lower power consumption: lower tractor fuel consumption
Double brass out-of-flow jets with ATR nozzles
Anti-drip diaphragm standard: no waste during maneuvers
Cat 1/2 hitch with double pin: quick equipment change
Galvanized steel frame: corrosion resistance and durability
Compatibility with low-power specialized tractors
Italian design and Dal Degan engineering based on 150 years of experience
