Categories: Mounted tractor atomizers, Vineyard, orchard, olive grove, and specialized tree crop line

MOUNTED ATOMIZER WITH REAR-SUCTION AXIAL IMPELLER — 400 OR 600 LITERS

Kronos MN 400-600

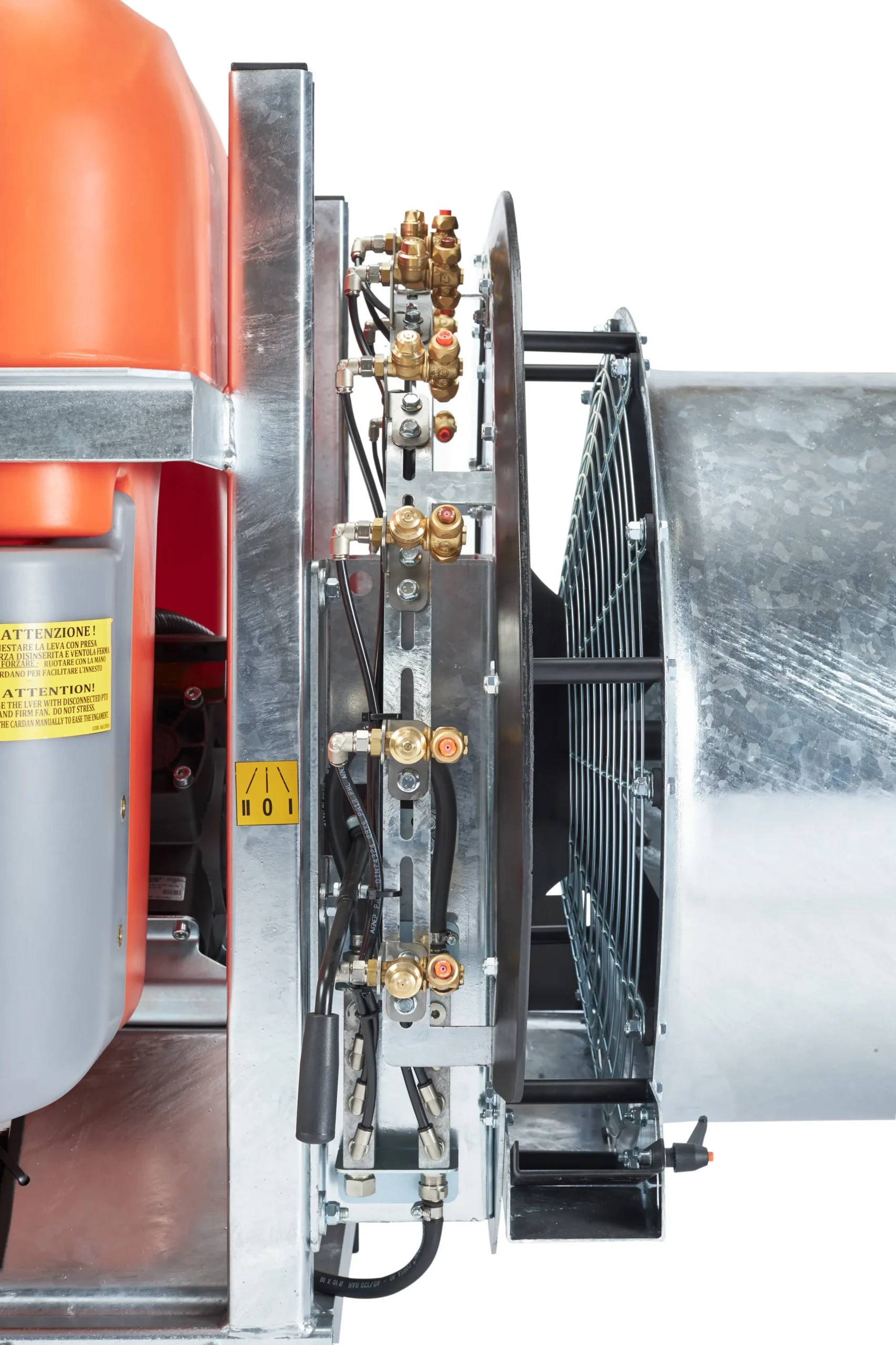

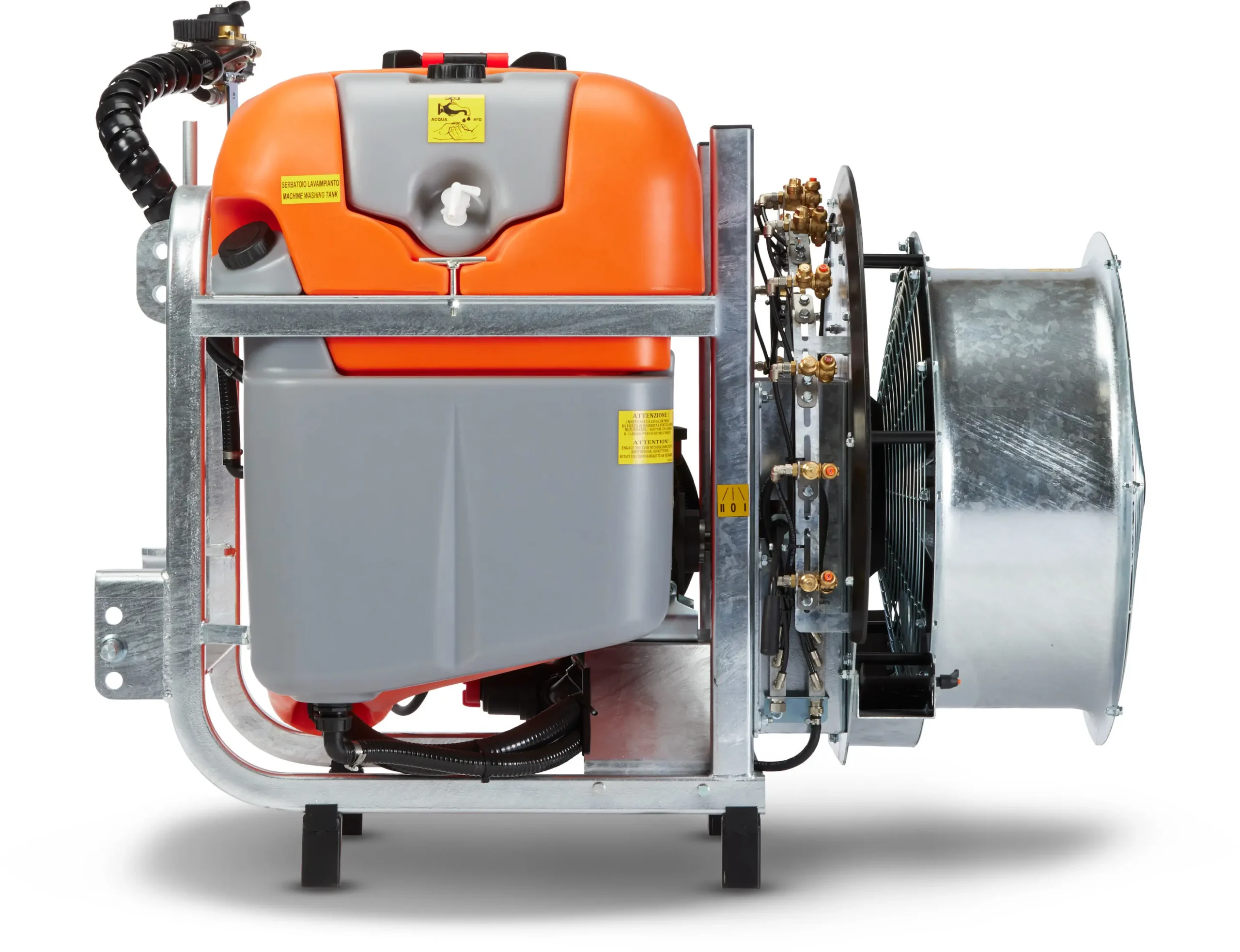

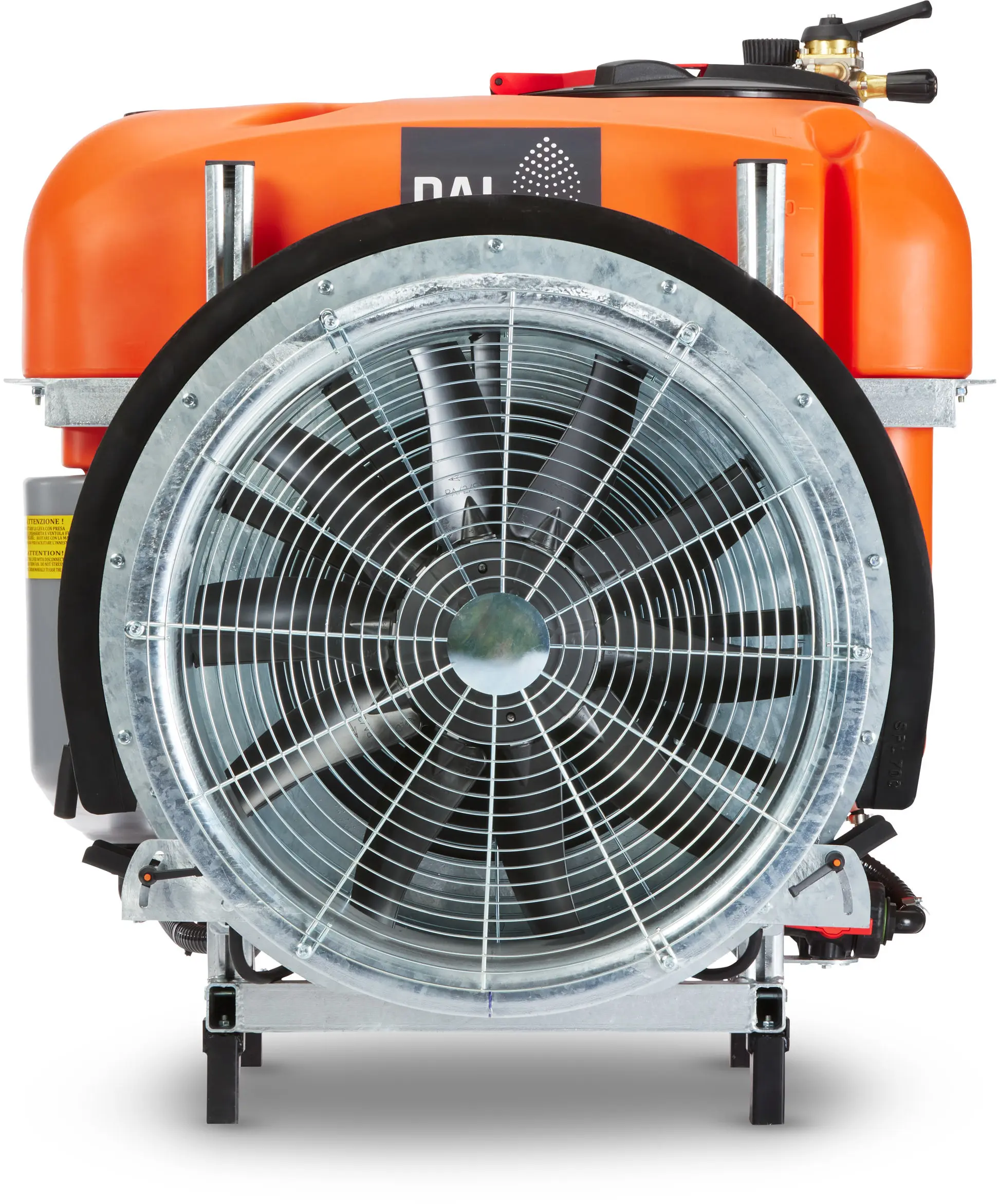

The Kronos MN 400-600 is the mounted atomizer by Dal Degan designed for professional farms requiring greater operational autonomy without sacrificing the compactness typical of mounted machines. Available with 400 and 600 liter tanks, it is ideal for crop protection treatments in vineyards, orchards and olive groves of medium size. The ventilation system uses a rear-suction axial impeller that keeps the machine compact and highly maneuverable even in plantings with closely spaced rows. The adjustable antibacterial glass-nylon helical blades ensure high aerodynamic efficiency, noise reduction and uniform product distribution on the foliage. The two-speed plus neutral gearbox allows airflow to be adapted to different crop requirements, optimizing consumption and performance. The distribution system is equipped with double brass nozzle holders with anti-drip diaphragm and ATR nozzles, a configuration that improves atomization quality and reduces product loss. To adapt to different types of plantings, the Kronos MN 400-600 can be equipped with:

700 mm fan
800 mm fan

The 800 mm fan version is particularly suitable for more developed canopies, high-volume orchards and high forward speeds. The galvanized frame and high-strength polyethylene tank ensure robustness and long-term durability, while the Cat. 1-2 three-point hitch allows coupling with most specialized tractors. The Kronos MN 400-600 represents the ideal solution for those seeking a professional mounted atomizer for vineyards and orchards, with high distribution quality and excellent working autonomy.

Fields of Application

Professional medium and medium-large vineyards
Commercial row orchards
Professional olive groves with medium planting distances
Specialized tree crops
Phytosanitary treatments on medium-large surfaces
Structured farms with medium-power tractors
Contractors on medium-sized plots
Professional landscaping services for large parks

Technical Data

TYPE	MOUNTED MIST BLOWER
TANK CAPACITY	400 – 600 L

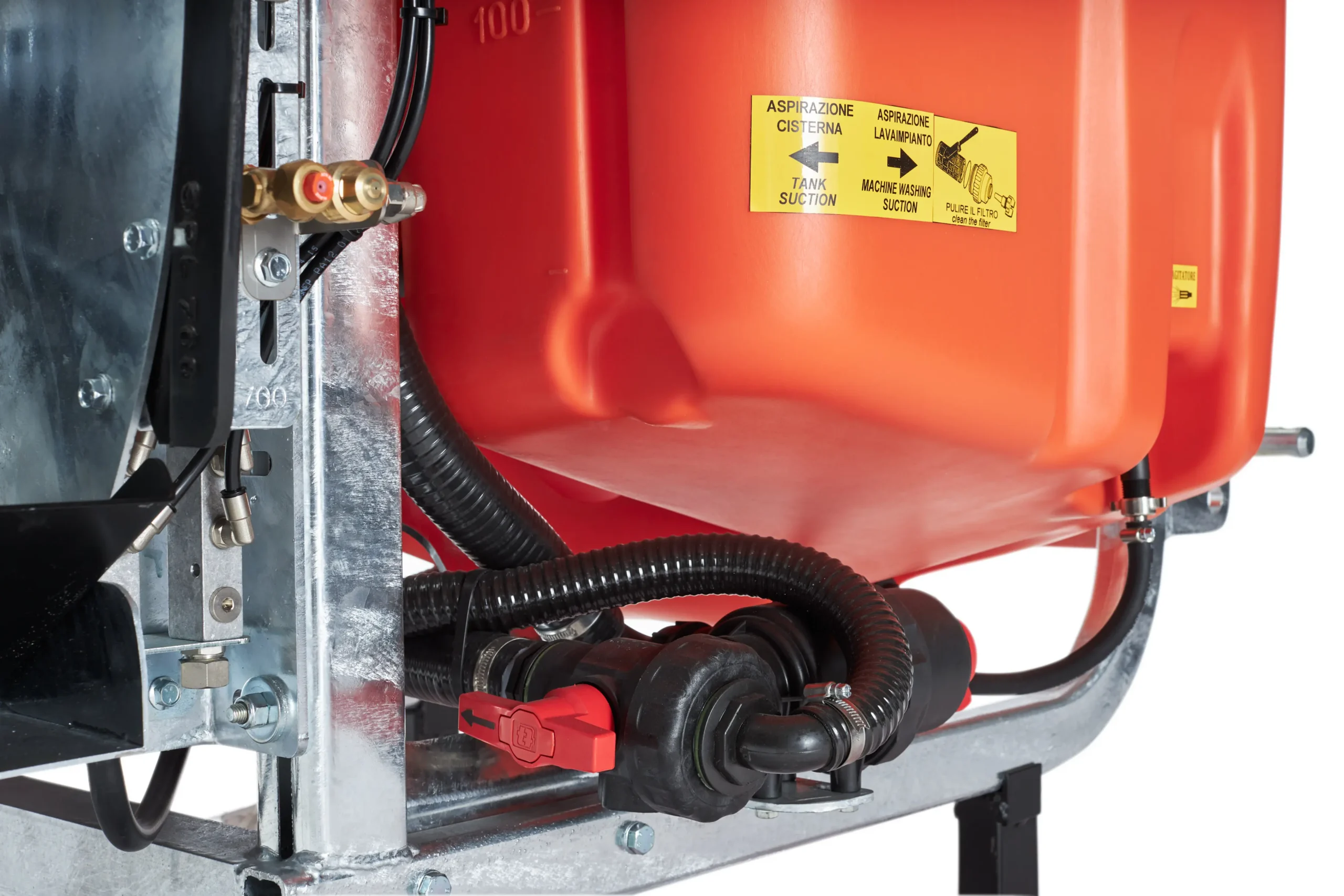

TANK MATERIAL	COMPACT AND RESISTANT POLYETHYLENE
FRAME	ADEQUATELY SIZED GALVANIZED STEEL
TRACTOR HITCH	THREE-POINT CAT 1/2 WITH DOUBLE PIN 25/28 mm
VENTILATION SYSTEM	REAR SUCTION AXIAL FAN
AVAILABLE FAN DIAMETERS	700 (standard) – 800 (enhanced) mm
FAN WIDTH	45 (standard) – 55 (enhanced) cm
BLADES	ADJUSTABLE HELICAL NYLON-GLASS WITH ANTIBACTERIAL COMPOUND
GEARBOX	2-SPEED + NEUTRAL, WITH CUSTOMIZED GEAR RATIOS

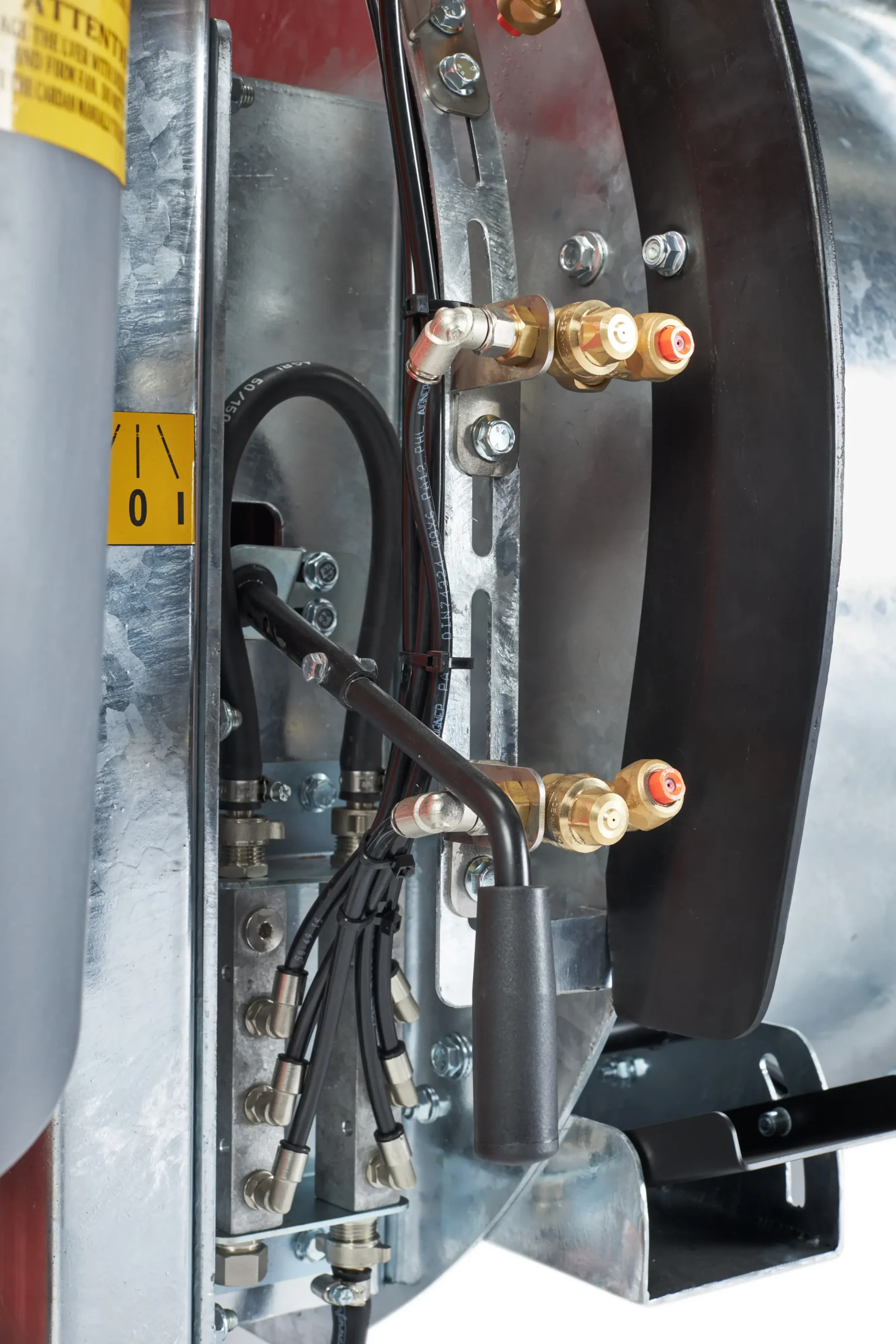

NOZZLE HOLDERS	DOUBLE BRASS, OUTSIDE THE AIRFLOW
ANTI-DRIP DIAPHRAGM	YES, STANDARD
NOZZLE TYPE	ATR (HOLLOW CONE), WITH FINE ADJUSTMENT
FAN RPM	1,660 / 1,670 rpm
DRY WEIGHT	FROM 215 TO 250 kg (depending on configuration)
LENGTH	1,230 mm
WIDTH	FROM 1,200 mm (400 L) – 1,400 mm (600 L)

Benefits

Two capacities available: 400 or 600 liters for medium and medium-large farms
Rear suction: shorter machine length
Two fan configurations: standard or enhanced for dense foliage
Antibacterial nylon-glass helical blades: does not transmit diseases between plants
Reduced noise levels thanks to the helical blade geometry
2-speed gearbox + neutral: ventilation adjustment and disengagement
Lower power absorption: reduced tractor fuel consumption
Double brass nozzle holders outside the airflow with ATR nozzles
Standard anti-drip diaphragm: no waste during maneuvers
Cat 1/2 hitch with double pin: quick equipment change
Galvanized steel frame: corrosion resistance and durability
Italian aesthetics and Dal Degan design based on 150 years of experience
