SMALL-MEDIUM MOUNTED SPRAYER FOR OPEN-FIELD CROPS — FROM 600 TO 1,200 LITERS

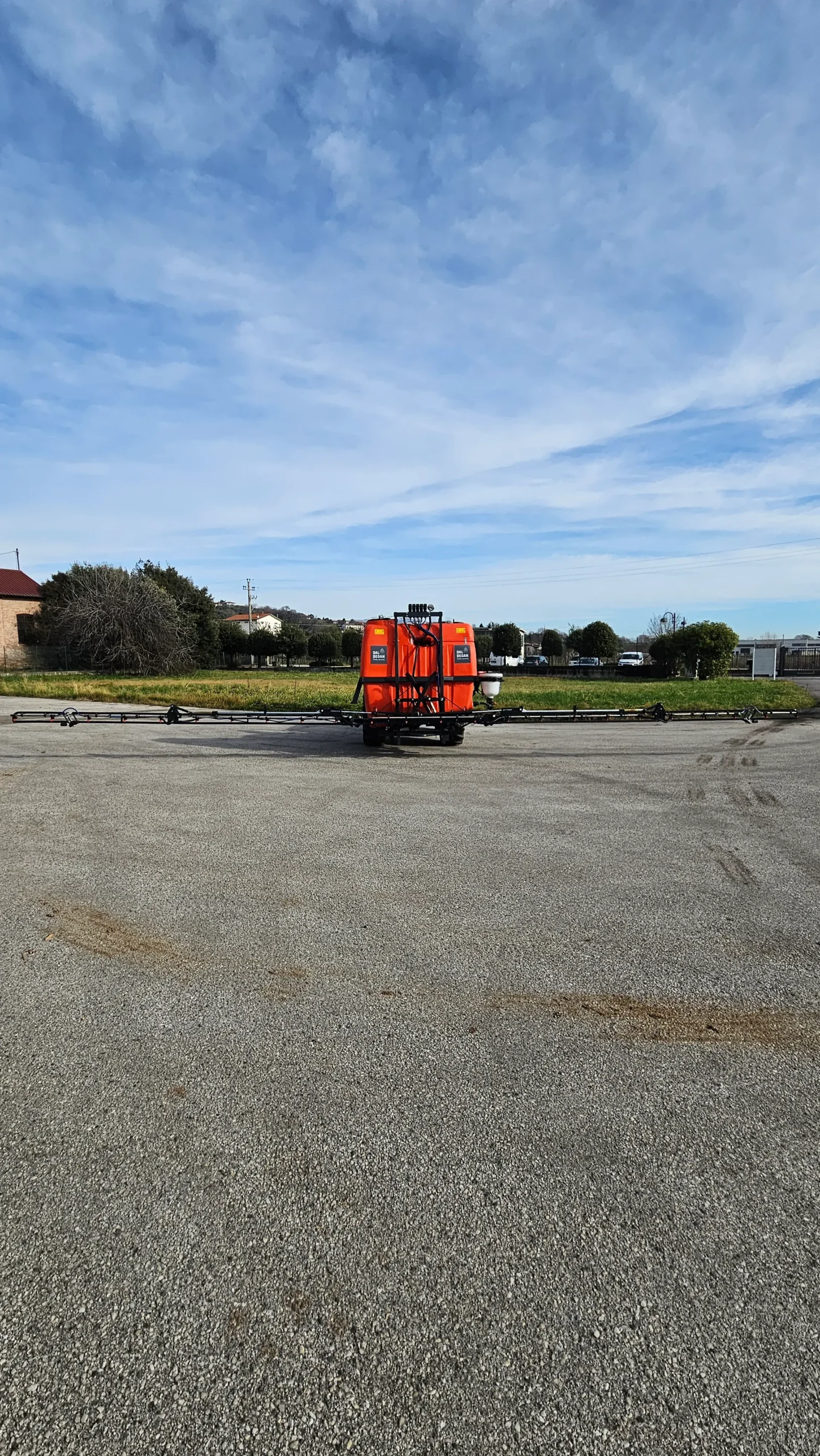

Teseo X

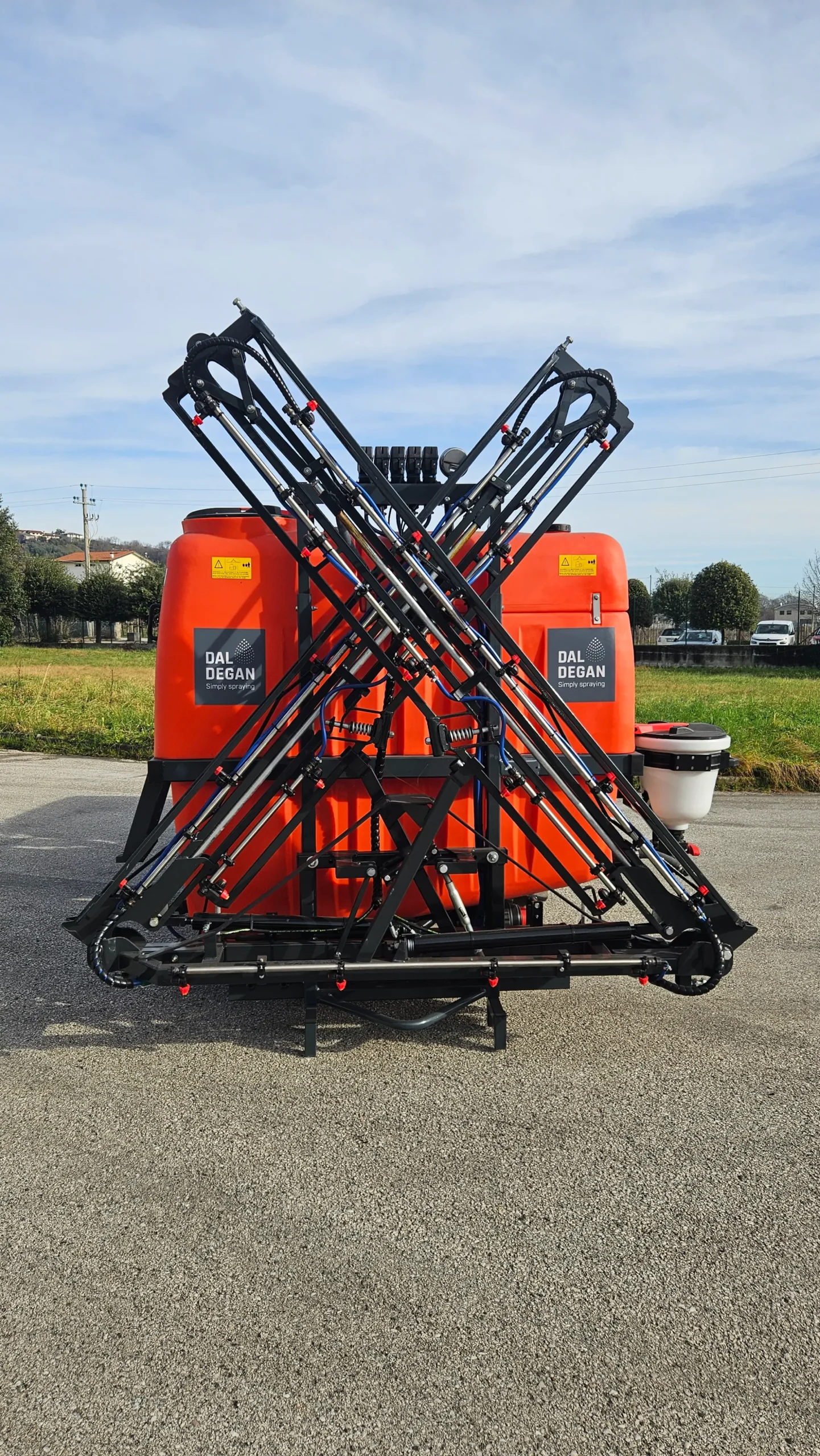

Teseo X is the Dal Degan mounted sprayer designed for professional weeding and open-field phytosanitary treatments on cereals, corn, soy, sunflower, and other extensive crops. Compact, versatile, and compatible with medium-power tractors, it represents the ideal solution for small and medium-sized farms, advanced hobbyists, and multi-crop operators looking for a reliable and easy-to-use machine. Available with tanks of 600, 800, 1,000, and 1,200 liters, it offers high operational flexibility and allows working autonomy to be adapted to farm needs. The main total-drainage polyethylene tank facilitates cleaning operations and reduces the risk of contamination between different products. Dedicated hand-wash and system-wash tanks are also integrated, improving operator safety and simplifying system rinsing after treatment. The hydraulic system is equipped with a 135 or 160 L/min diaphragm pump, designed to ensure uniform product distribution and consistent performance throughout the work. The constant pressure control unit can be configured in manual or electric versions, allowing the operator to choose the most suitable level of automation. Continuous mixture agitation keeps the product homogeneous inside the tank, improving distribution quality and treatment effectiveness. Teseo X is fitted with the KRN hydraulic boom, available in working widths of 12, 14, and 15 meters, ideal for treating arable land and open-field crops. The structure integrates self-leveling, safety systems on the ends, and stainless steel nozzle-holder piping. XR Teejet ceramic nozzles guarantee high distribution precision and long life even under intensive use. The hot-dip galvanized metal parts ensure excellent corrosion resistance and a long service life for the machine. The category 1 and 2 three-point hitch ensures compatibility with a wide range of agricultural tractors. Thanks to its modular configuration, Teseo X can be equipped with a pre-mixer, external water filling, additional sections, and precision farming systems. Compatibility with Bravo computers, GPS guidance, and AEF-certified ISOBUS technologies allows for optimized treatments, reduced overlaps, and improved operational efficiency. A professional weeding sprayer designed to offer reliability, precision, and ease of management in daily operations.

Fields of Application

Professional weeding on arable crops: cereals, maize, soy, sunflower, rapeseed
Phytosanitary treatments on extensive vegetable crops
Small and medium-sized cereal farms
Multi-crop operators with medium-power tractors
Advanced hobbyists with their own cultivated land
Treatments on lawns and turf
Maintenance of public green areas and parks
Companies seeking a first step into modular precision weeding

Technical Data

TYPE	SMALL-MEDIUM MOUNTED SPRAYER FOR OPEN FIELD
MAIN TANK CAPACITY	600, 800, 1,000 OR 1,200 L
TANK MATERIAL	TOTAL DRAINAGE POLYETHYLENE, HIGHLY WASHABLE
HAND-WASHING TANK	IN POLYETHYLENE

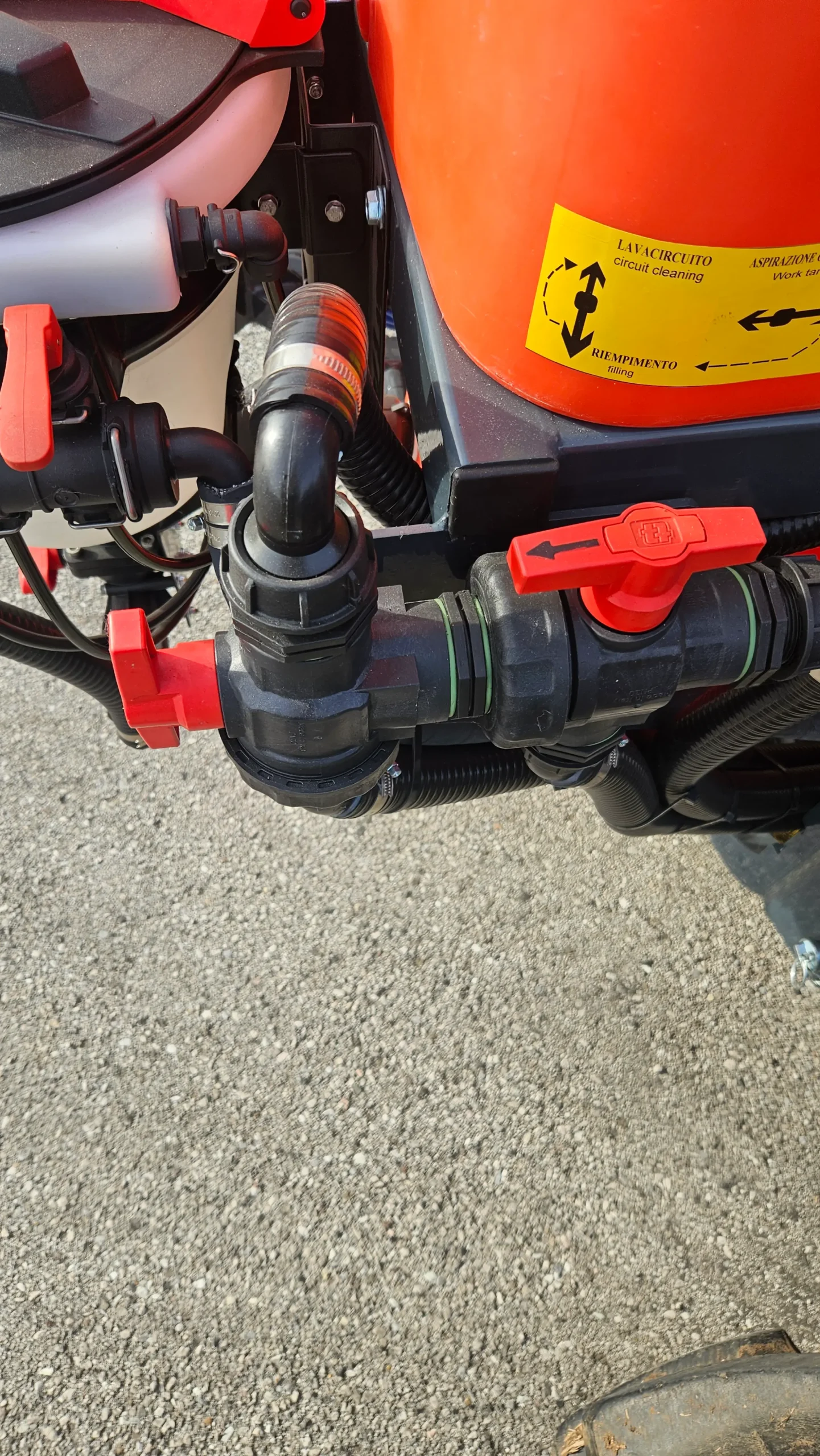

SYSTEM-WASHING TANK	IN POLYETHYLENE WITH DEDICATED WASHING SYSTEM

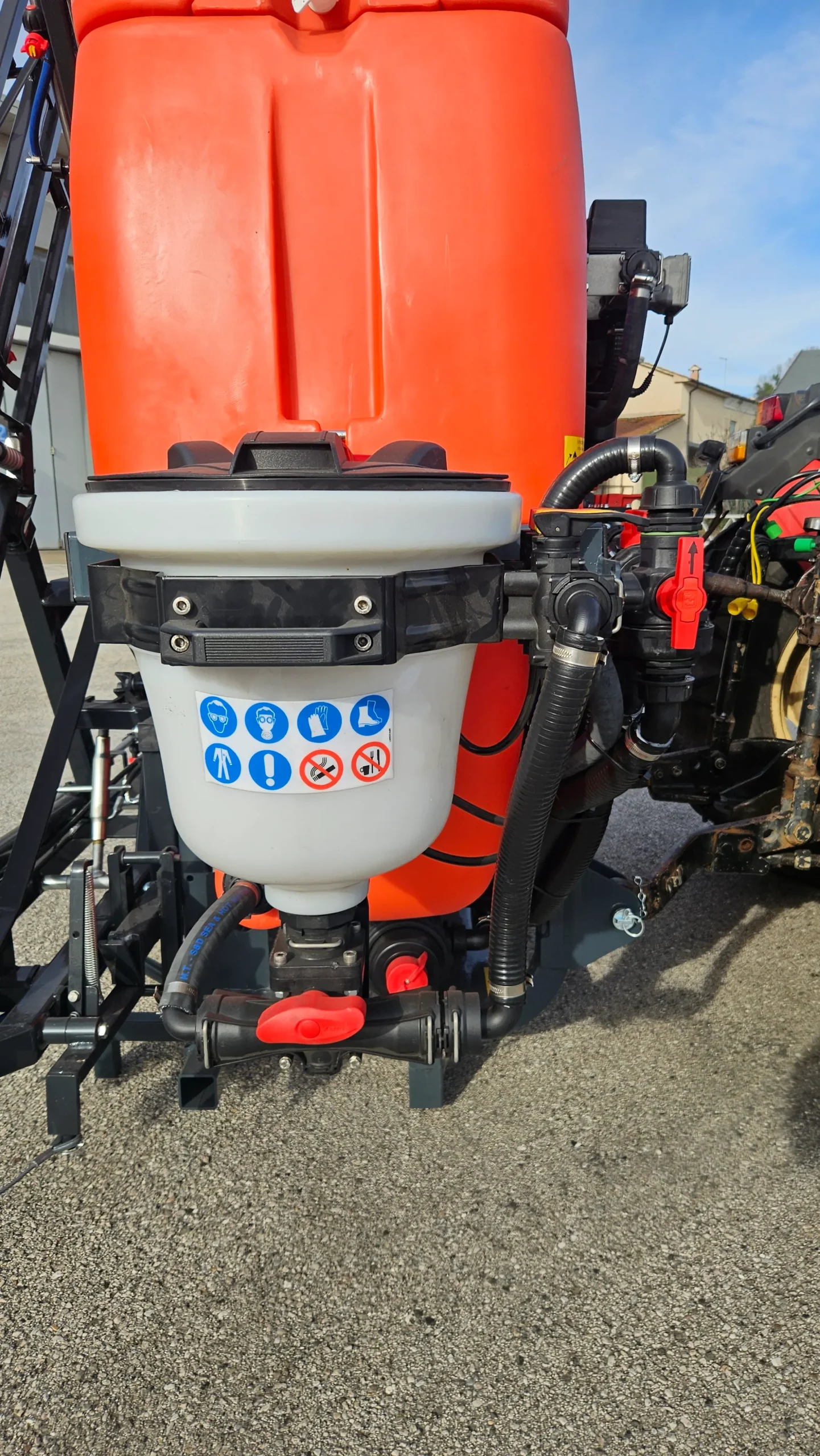

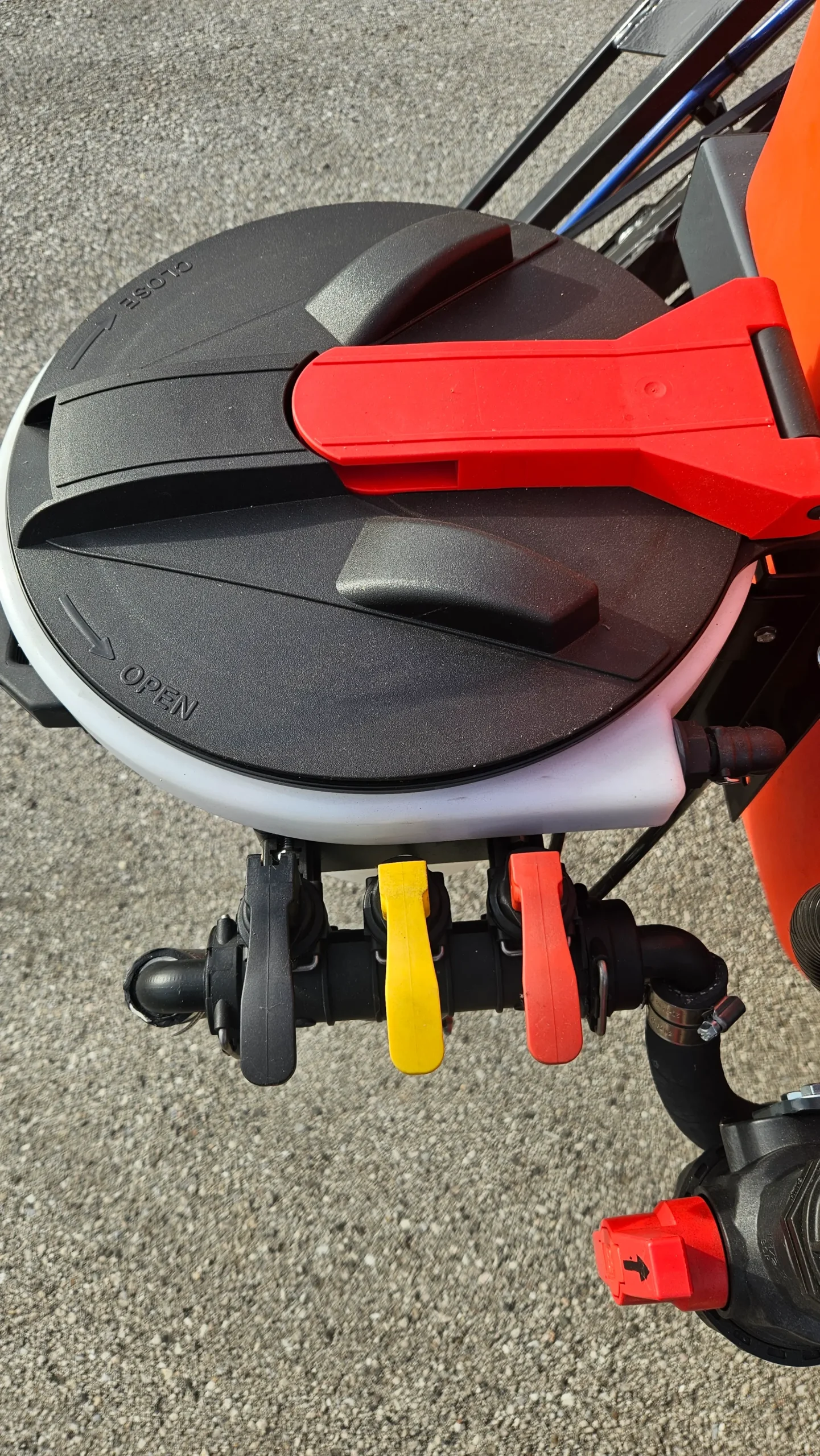

PRE-MIXER	25 L WITH BOTTLE WASHER, FAST HOPPER, HOPPER WASHING (UPON REQUEST)
EXTERNAL FILLING HOSE	8 M (UPON REQUEST)
SUCTION FILTER	STANDARD
PUMP TYPE	LOW-PRESSURE DIAPHRAGM PUMP
PUMP FLOW RATE	135 OR 160 L/min

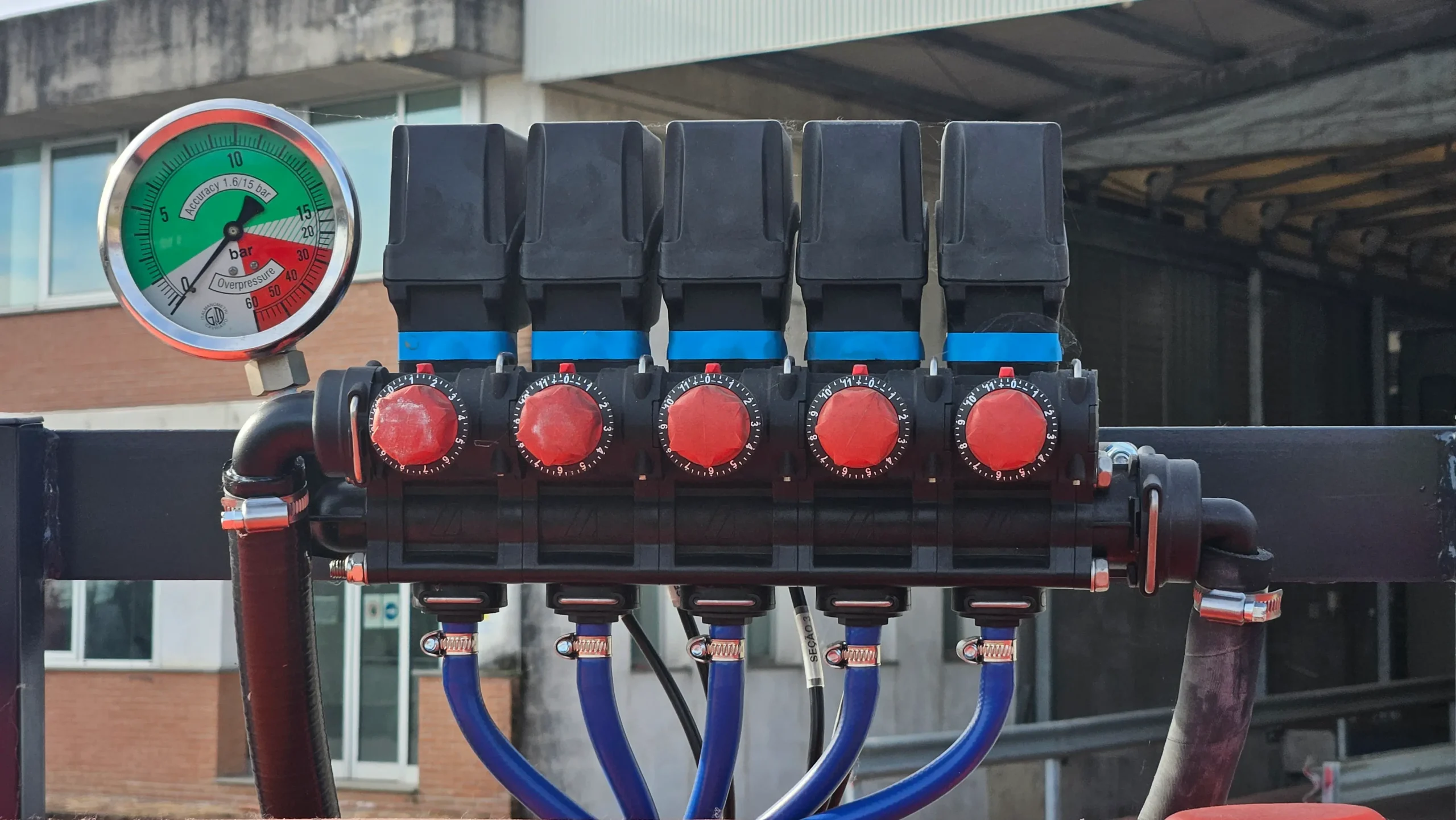

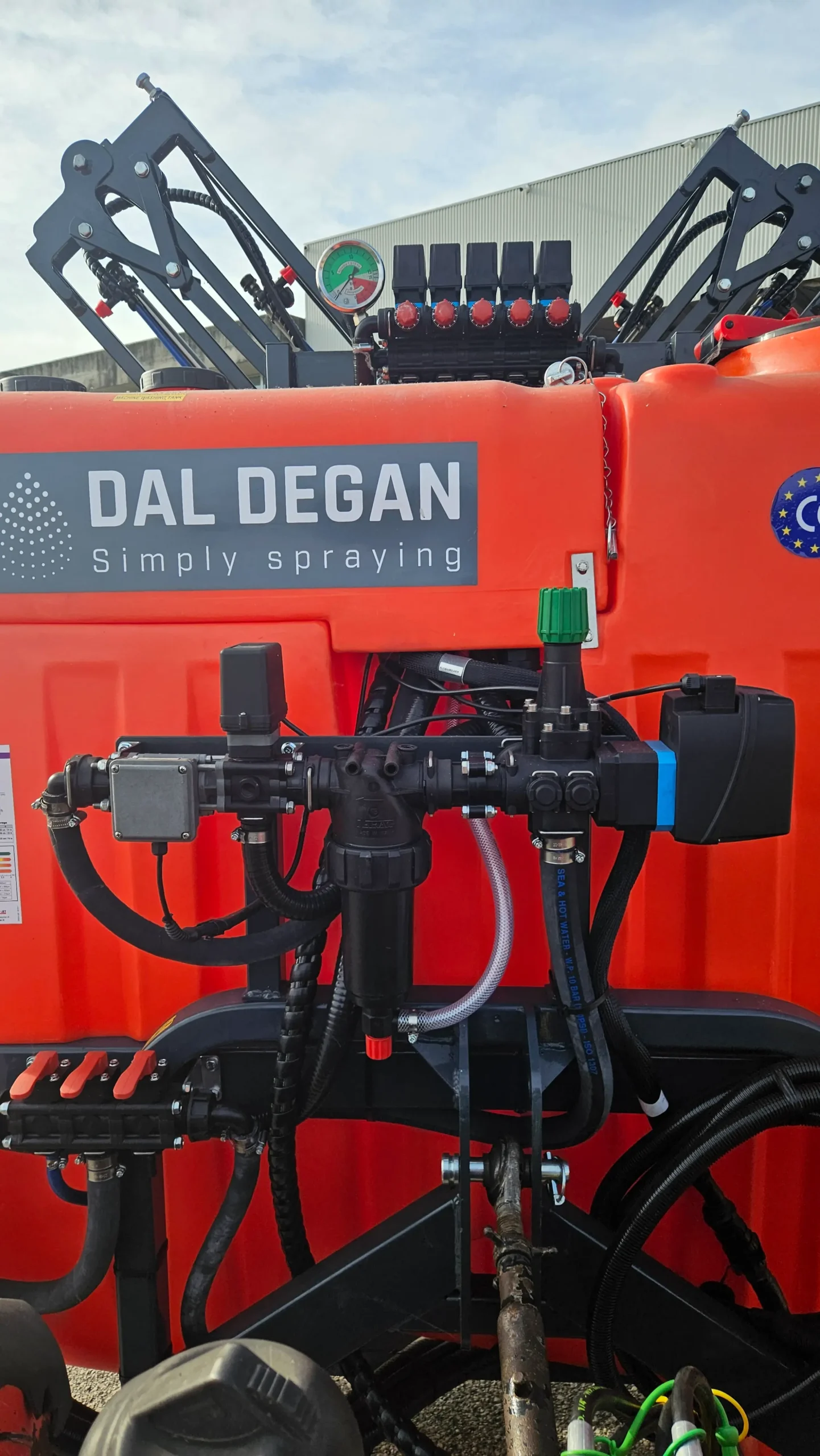

WATER CONTROL UNIT (STANDARD)	DPC MANUAL CONSTANT PRESSURE, 5 SECTIONS WITH ADJUSTABLE PANTOGRAPH
CONTROL UNITS UPON REQUEST	DPM MANUAL PROPORTIONAL 5 SECTIONS OR DPM ELECTRIC PROPORTIONAL 5 SECTIONS WITH CAB CONTROL PANEL
AGITATION	PROPORTIONAL ON TANK RETURNS

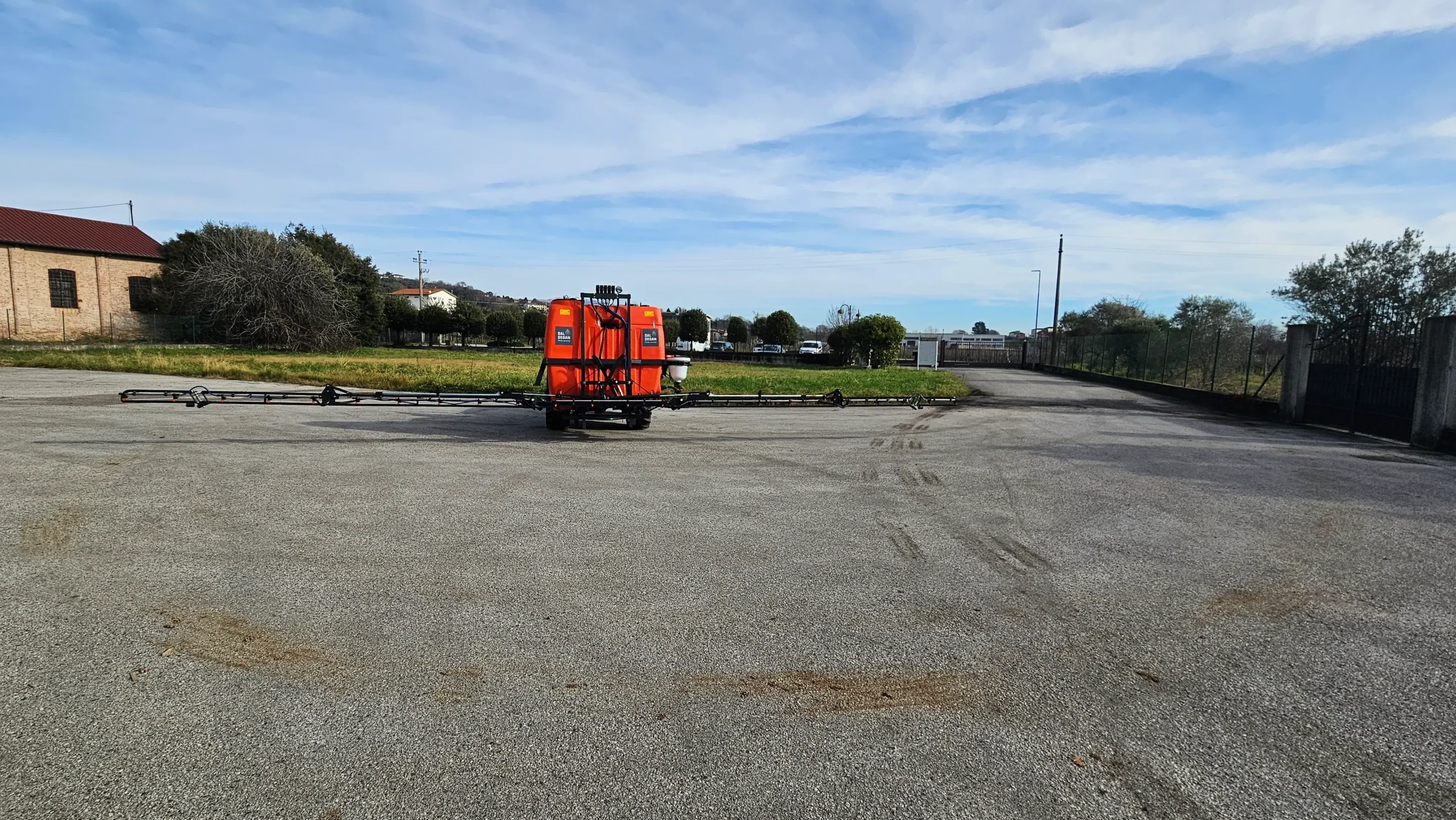

AVAILABLE BOOM LENGTHS	12, 14 OR 15 M
BOOM MODEL	KRN (DAL DEGAN HYDRAULIC)

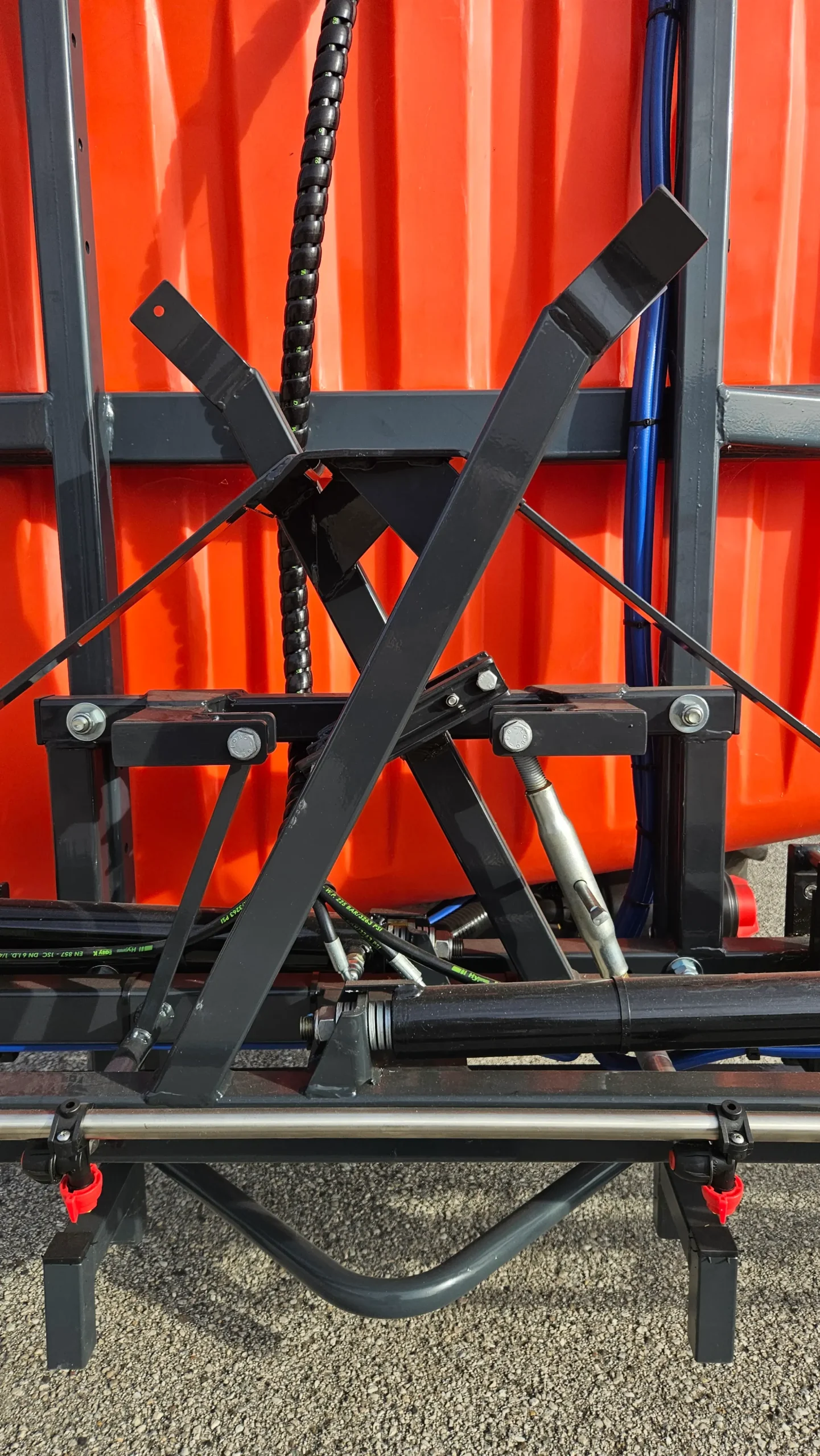

ARM CLOSURE	TWO DEDICATED PISTONS
SELF-LEVELING	INTEGRATED WITH MANUAL CORRECTION (HYDRAULIC CORRECTION UPON REQUEST)
SELF-LEVELING LOCK	AUTOMATIC

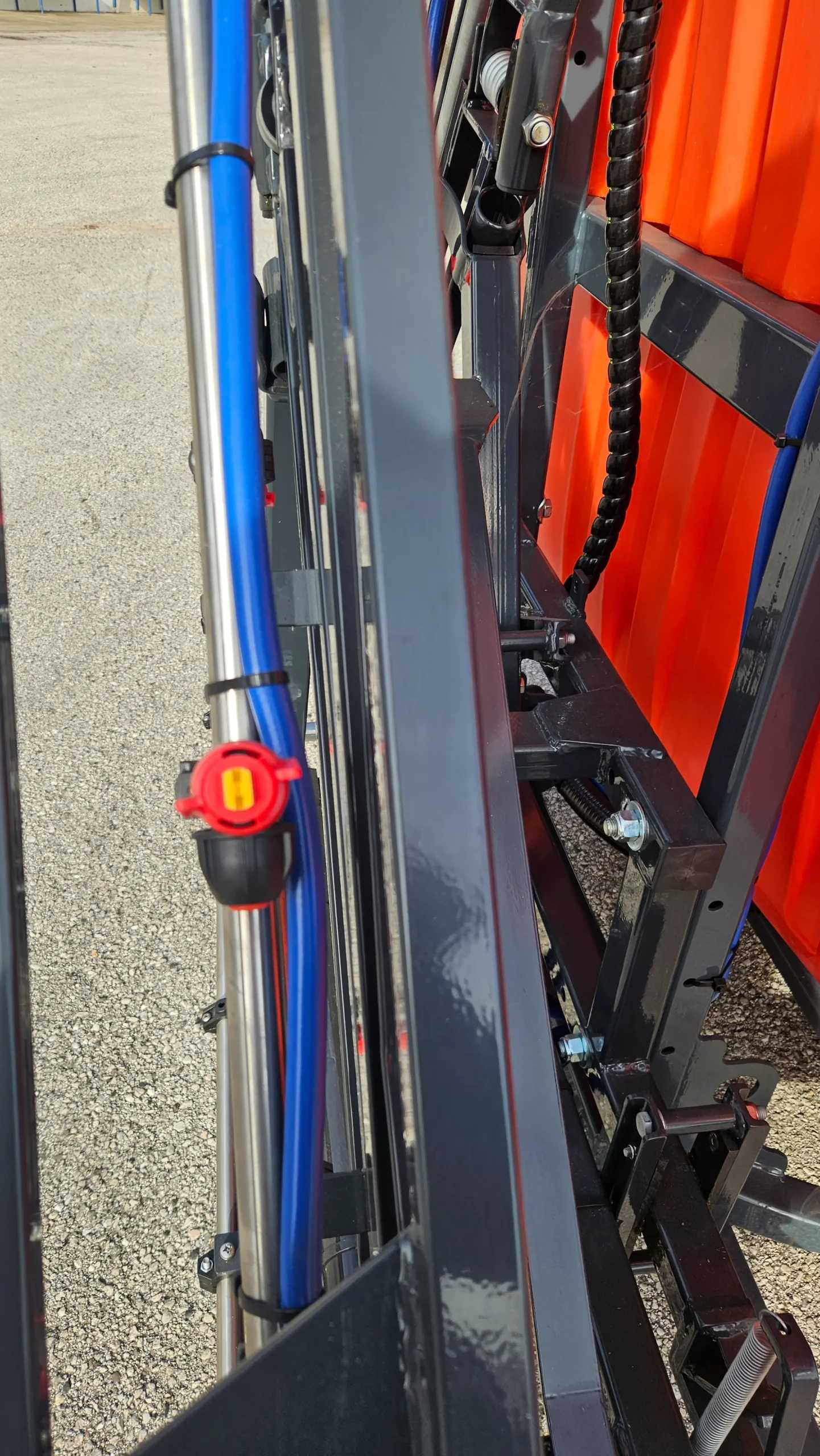

NOZZLE HOLDER PIPES	STAINLESS STEEL

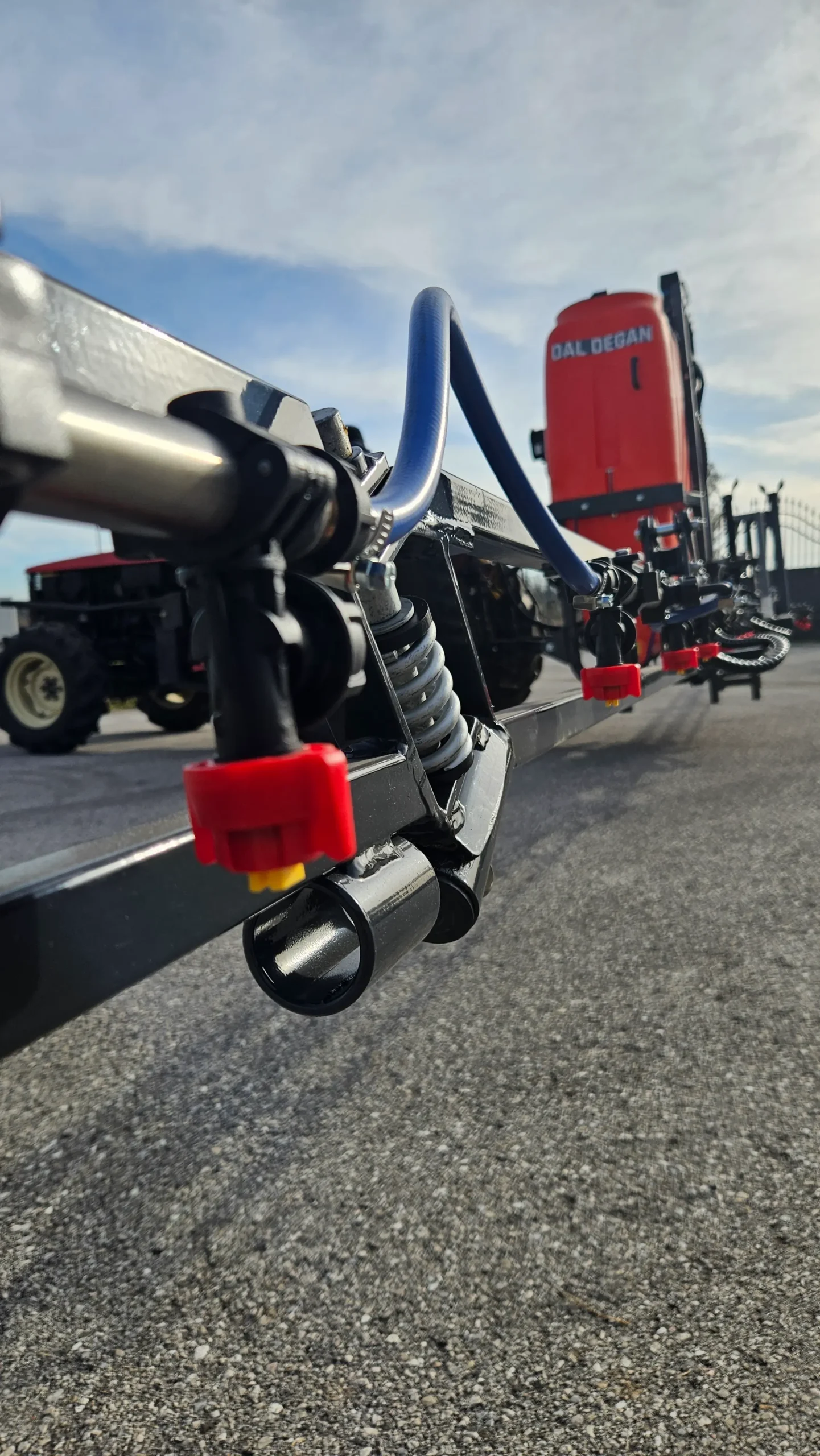

NOZZLE HOLDERS	SINGLE PLASTIC DIAPHRAGM WITH QUICK-COUPLING CAP
NOZZLES	XR TEEJET CERAMIC FAN NOZZLES
NOZZLE SPACING	50 CM
SAFETY BREAKAWAY	ON END SECTIONS
BOOM LIFT (STANDARD)	FIXED HEIGHT
LIFTS UPON REQUEST	MANUAL WINCH OR HYDRAULIC 1 M STROKE
TRACTOR HITCH	3-POINT HITCH CATEGORY 1 AND 2
METAL PARTS	HOT-DIP GALVANIZED (POWDER COATED OVER SANDBLASTING UPON REQUEST)
OIL SUPPLY	DIRECT TO PISTONS
MINIMUM TRACTOR POWER	60 HP
EMPTY WEIGHT	450-650 KG
AVERAGE DIMENSIONS WITH CLOSED BOOM	240 × 160 × H260 CM

Benefits

Four tank capacities available: 600, 800, 1,000 or 1,200 L
Highly washable total drainage tank: no residue, easy cleaning
Dedicated hand-washing and system-washing tanks
135 or 160 L/min diaphragm pump: constant flow and professional reliability

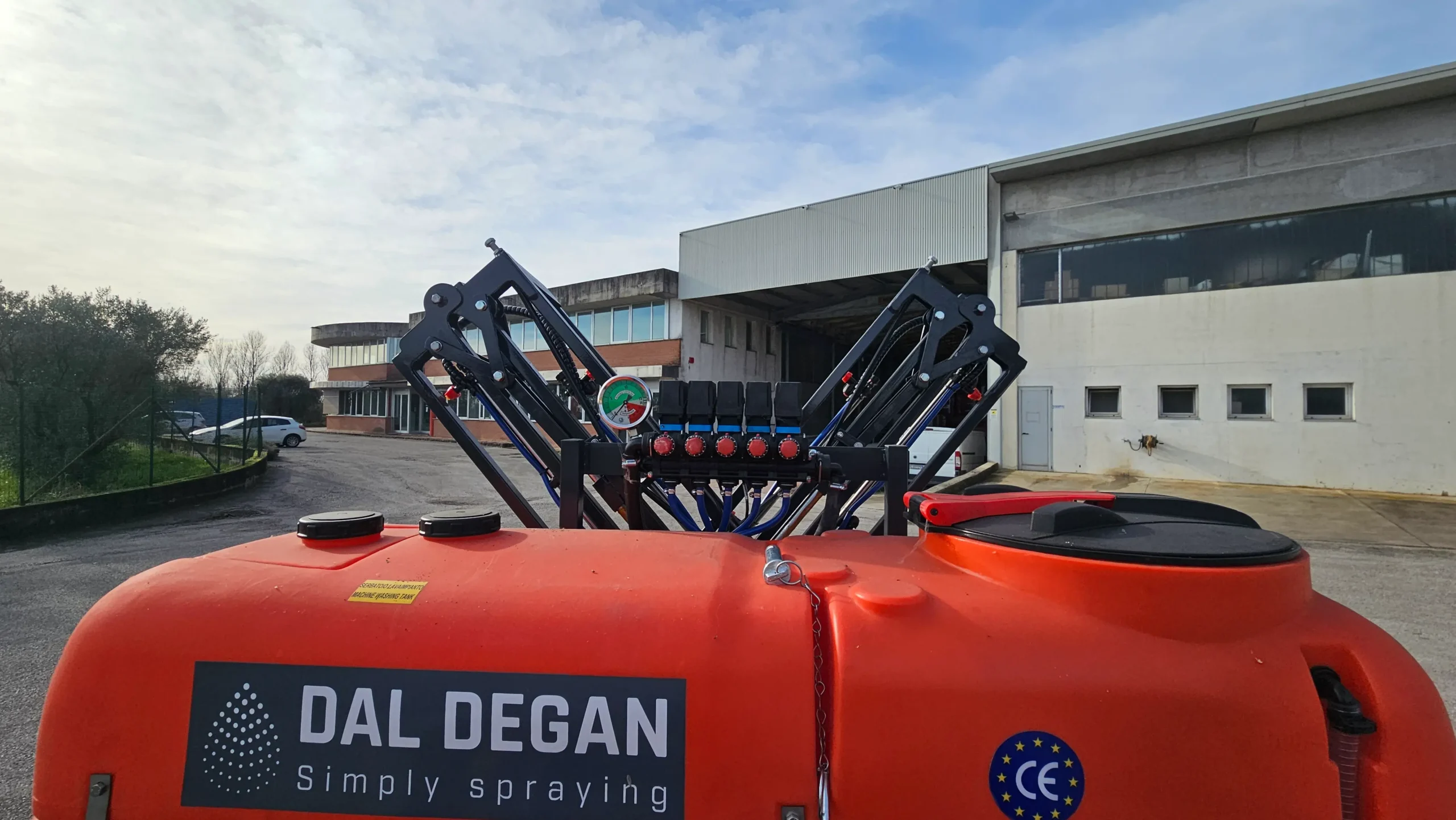

Standard 5-section DPC control unit with adjustable pantograph
Expandable with DPM manual or electric proportional control unit with compensated returns
Proportional agitation: always a homogeneous mixture during work
Suction filter: protection for pump, control unit, and nozzles

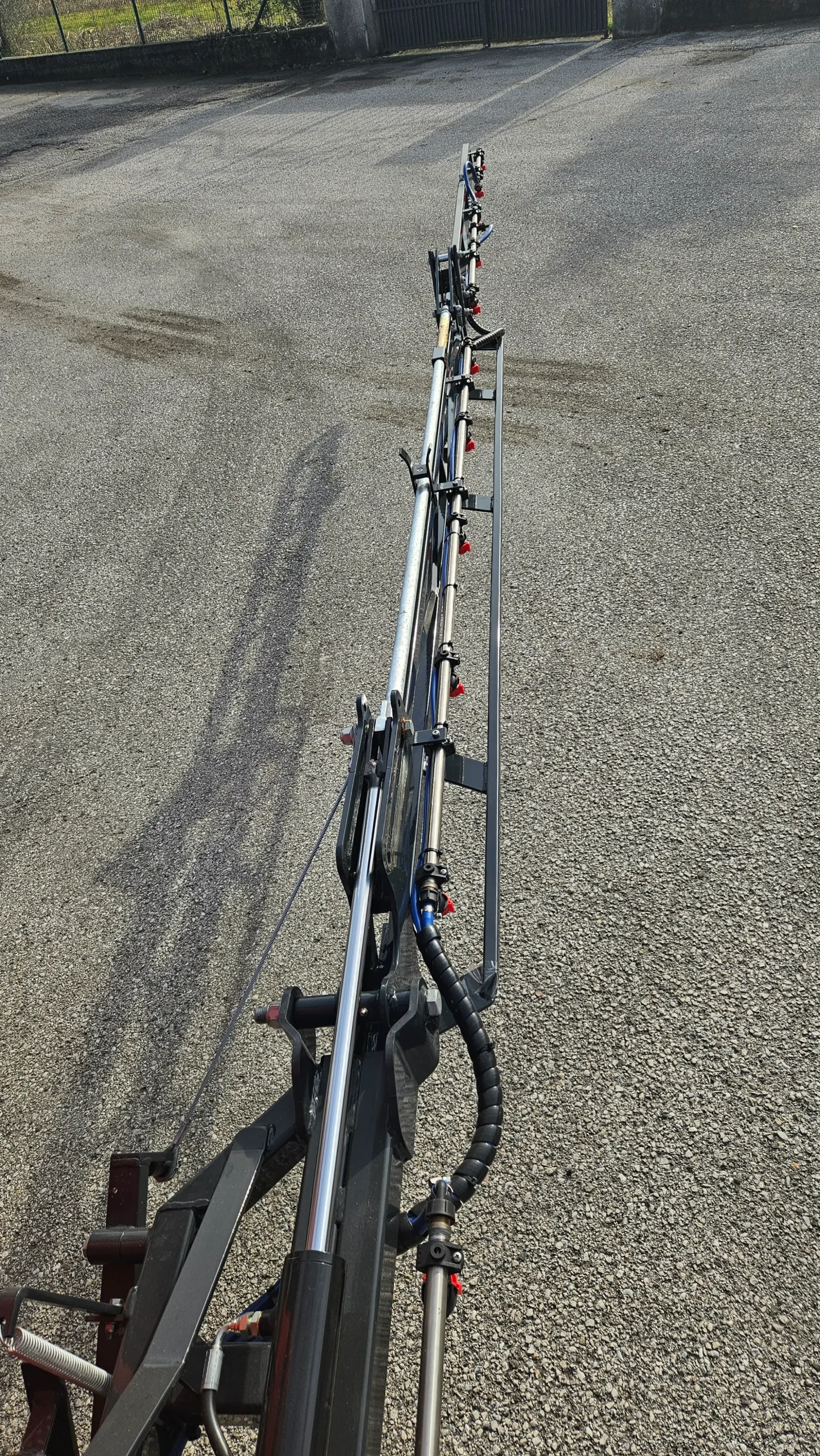

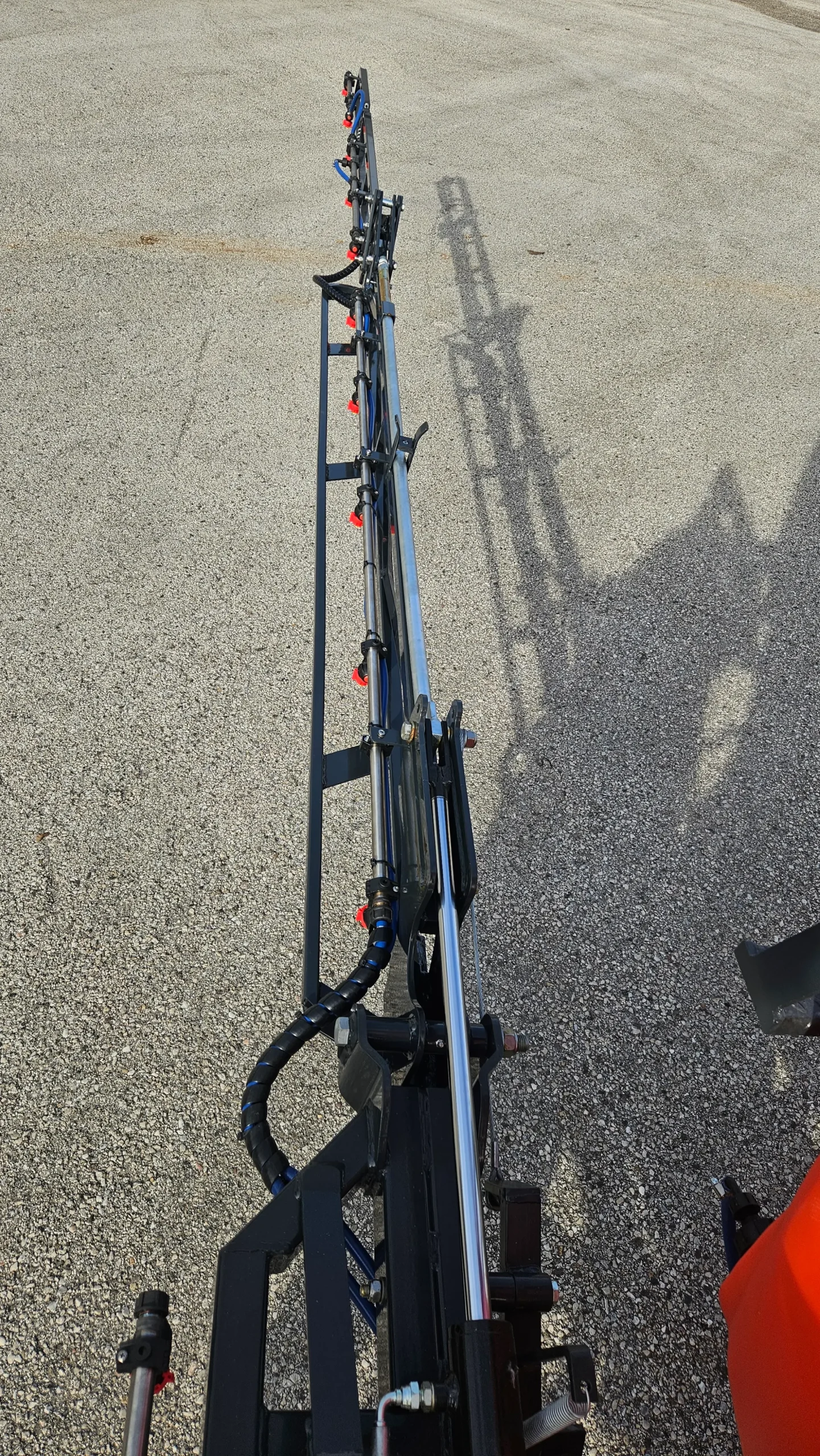

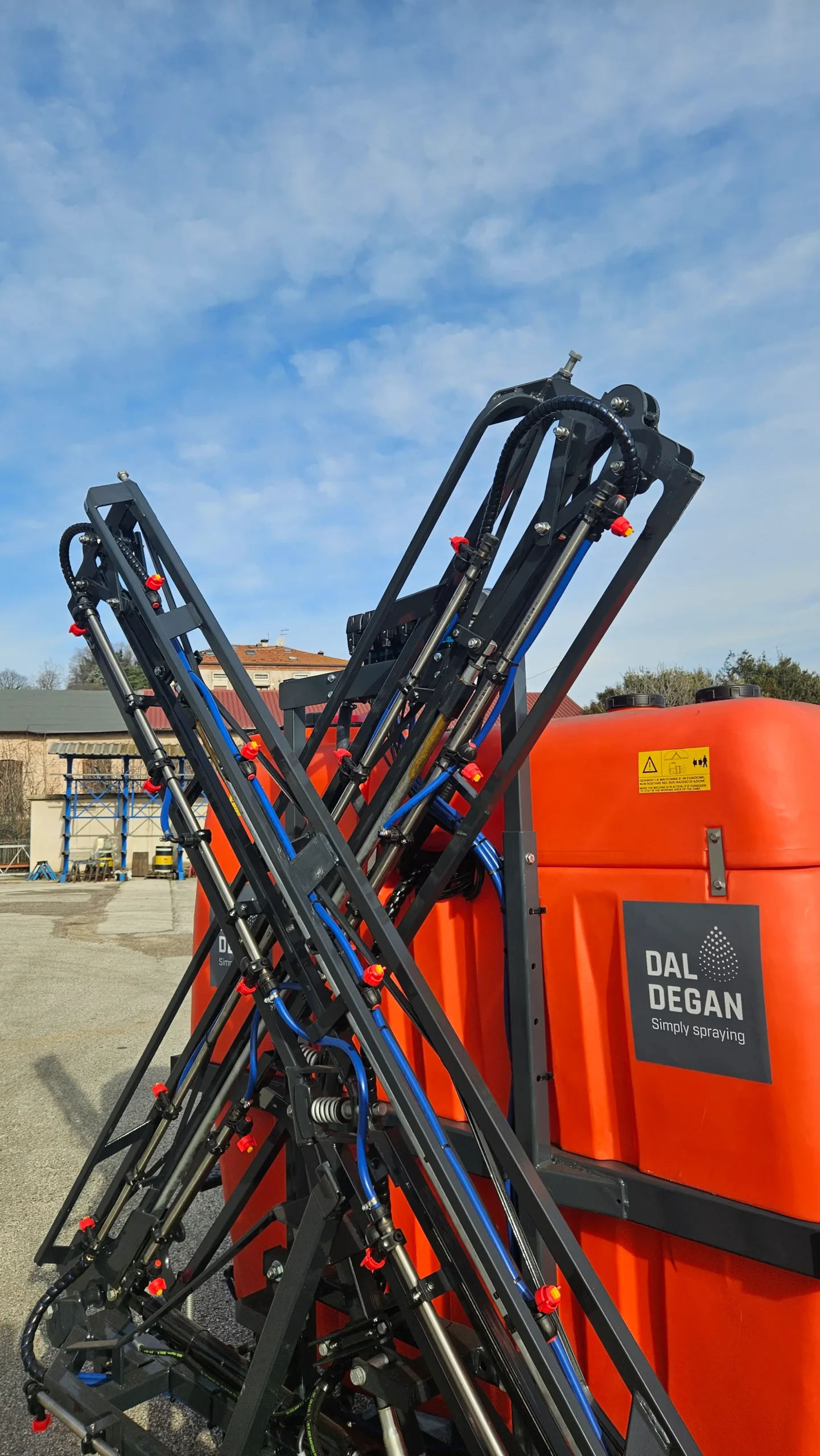

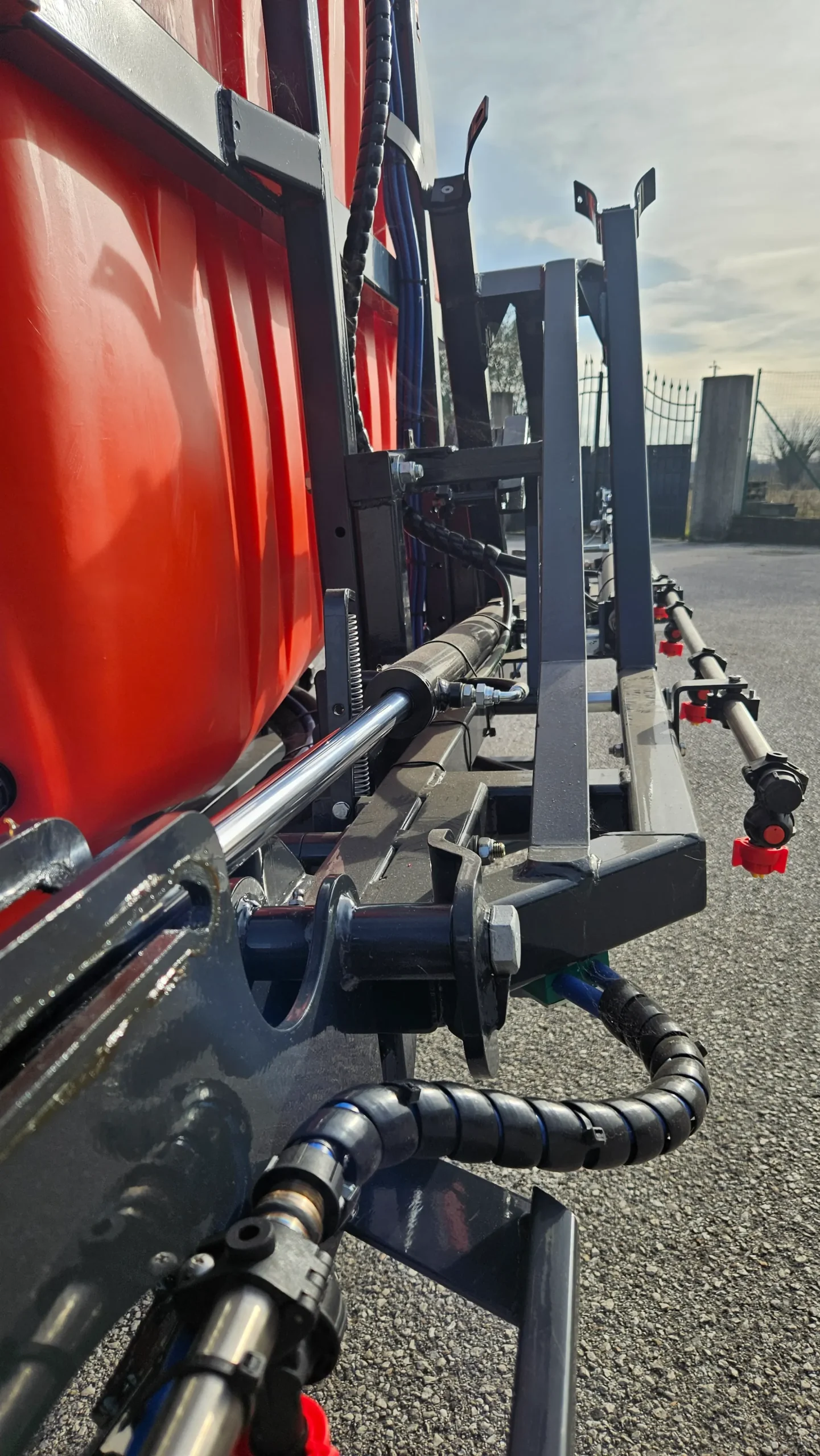

12, 14 or 15-meter KRN hydraulic boom
Two dedicated pistons for arm closure
Integrated self-leveling with automatic lock

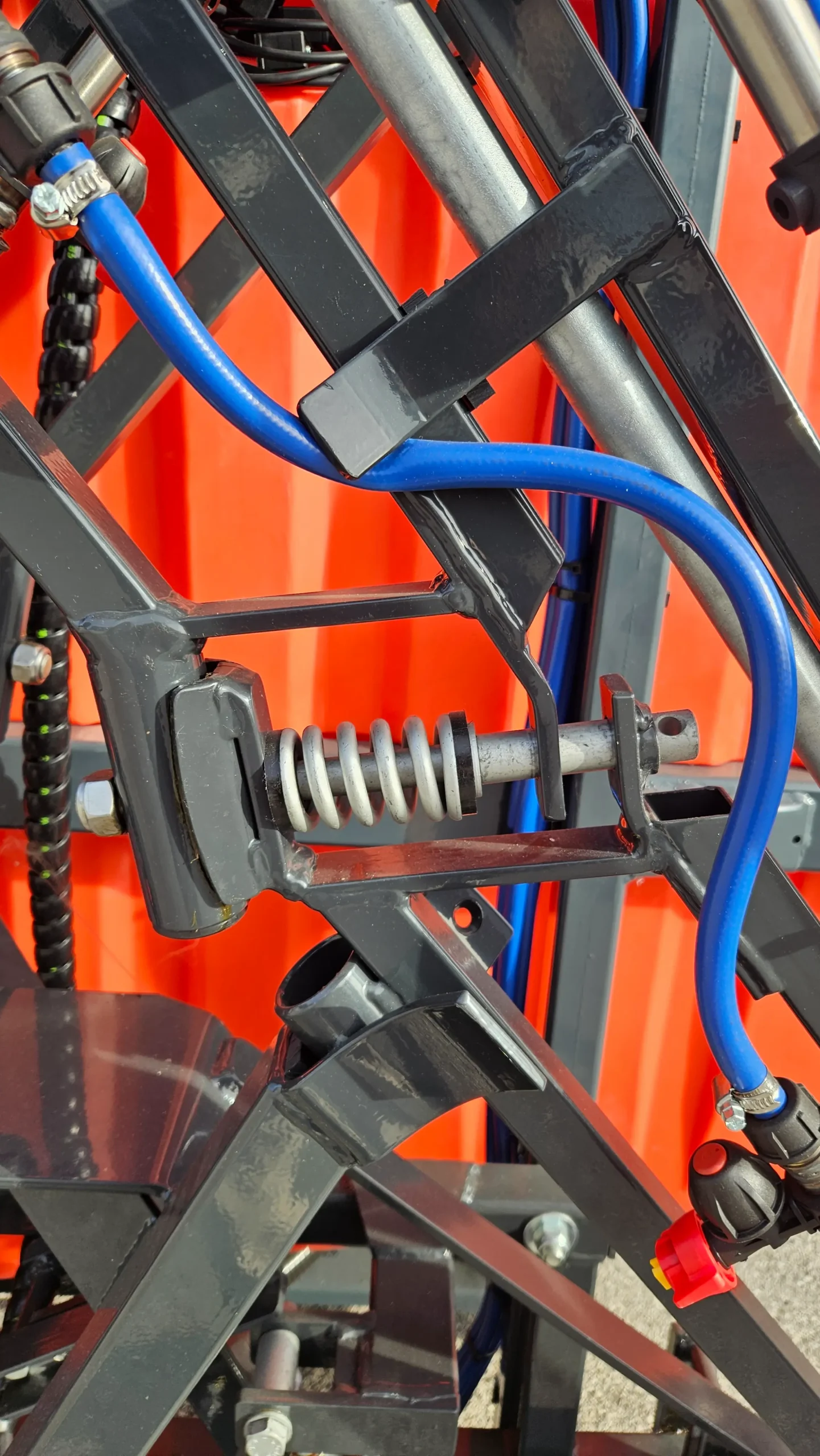

Safety breakaway on end sections
XR Teejet ceramic fan nozzles: superior durability compared to alternative materials
Hot-dip galvanized parts: maximum corrosion resistance and long-lasting durability
Category 1 and 2 3-point hitch: compatibility with compact and medium tractors
Low required tractor power: 60 HP
Low weight: 450-650 kg for maximum fleet compatibility
Compact dimensions with closed boom: 240 × 160 × h260 cm
Optional manual winch or 1 m stroke hydraulic boom lift
Modular platform: from “fully manual” to electronic section control
Expandable with Bravo 180S/400S computer, AEF ISOBUS kit, GPS, and section control
Optional trolley with pivoting wheels for independent movement
