TRAILED ATOMIZER WITH REAR-SUCTION AXIAL FAN — 600, 1,000, 1,500, 2,000 LITERS

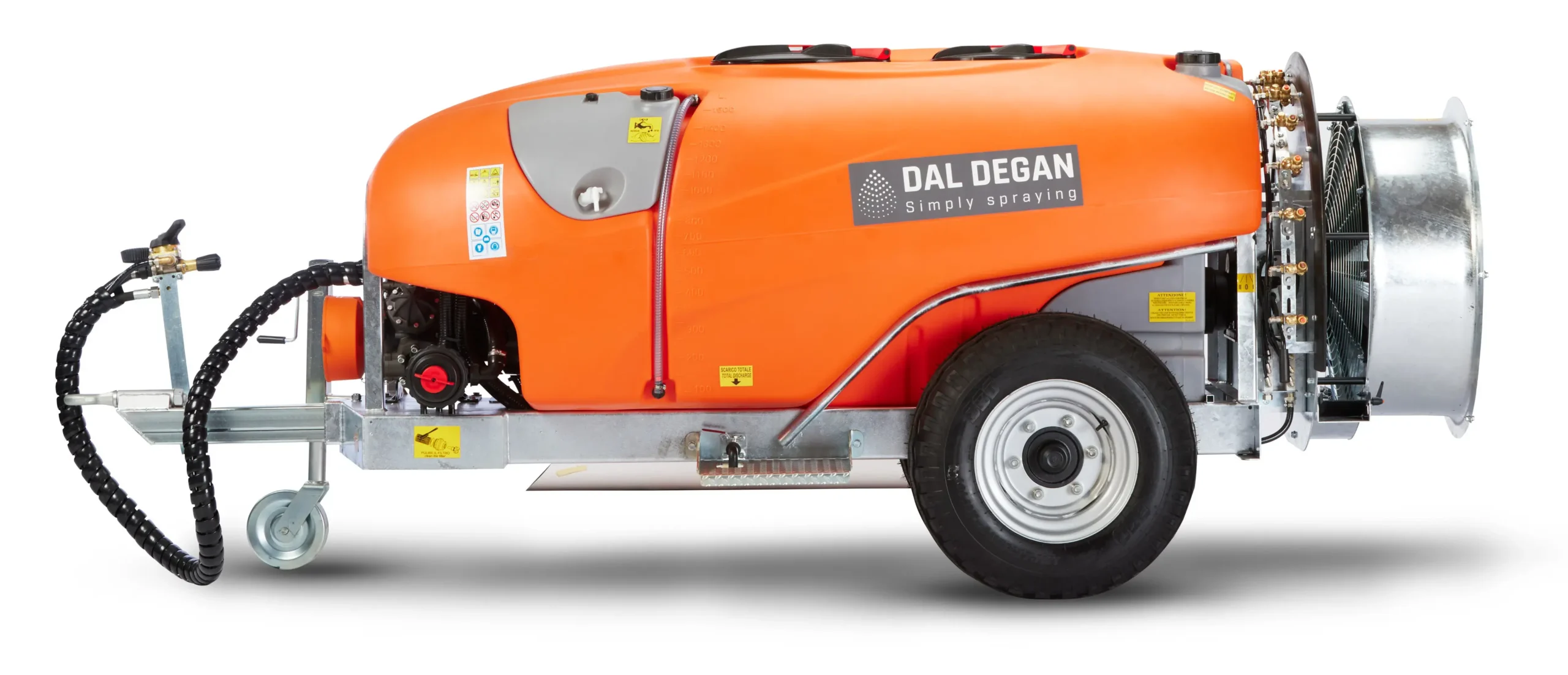

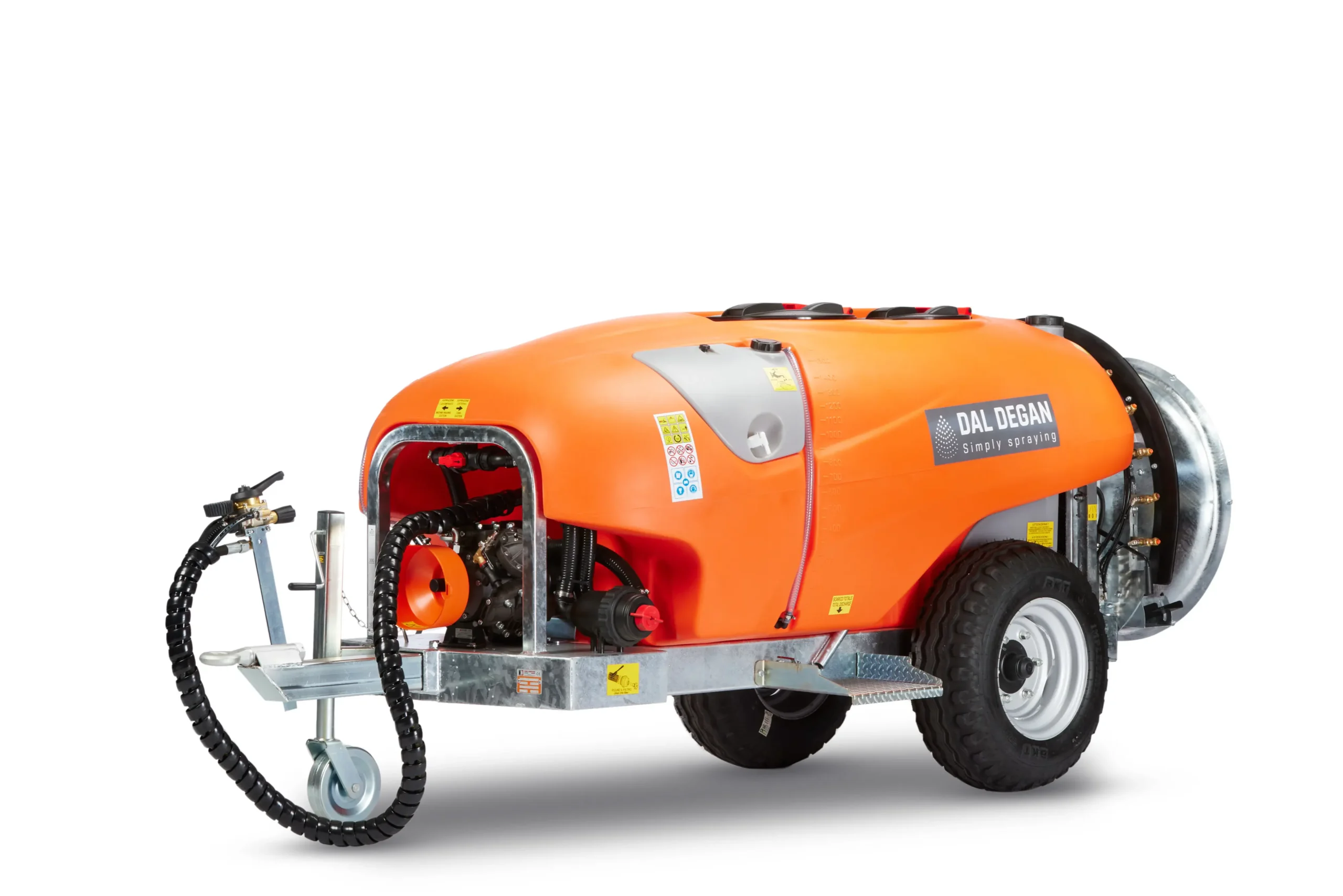

Kronos TR

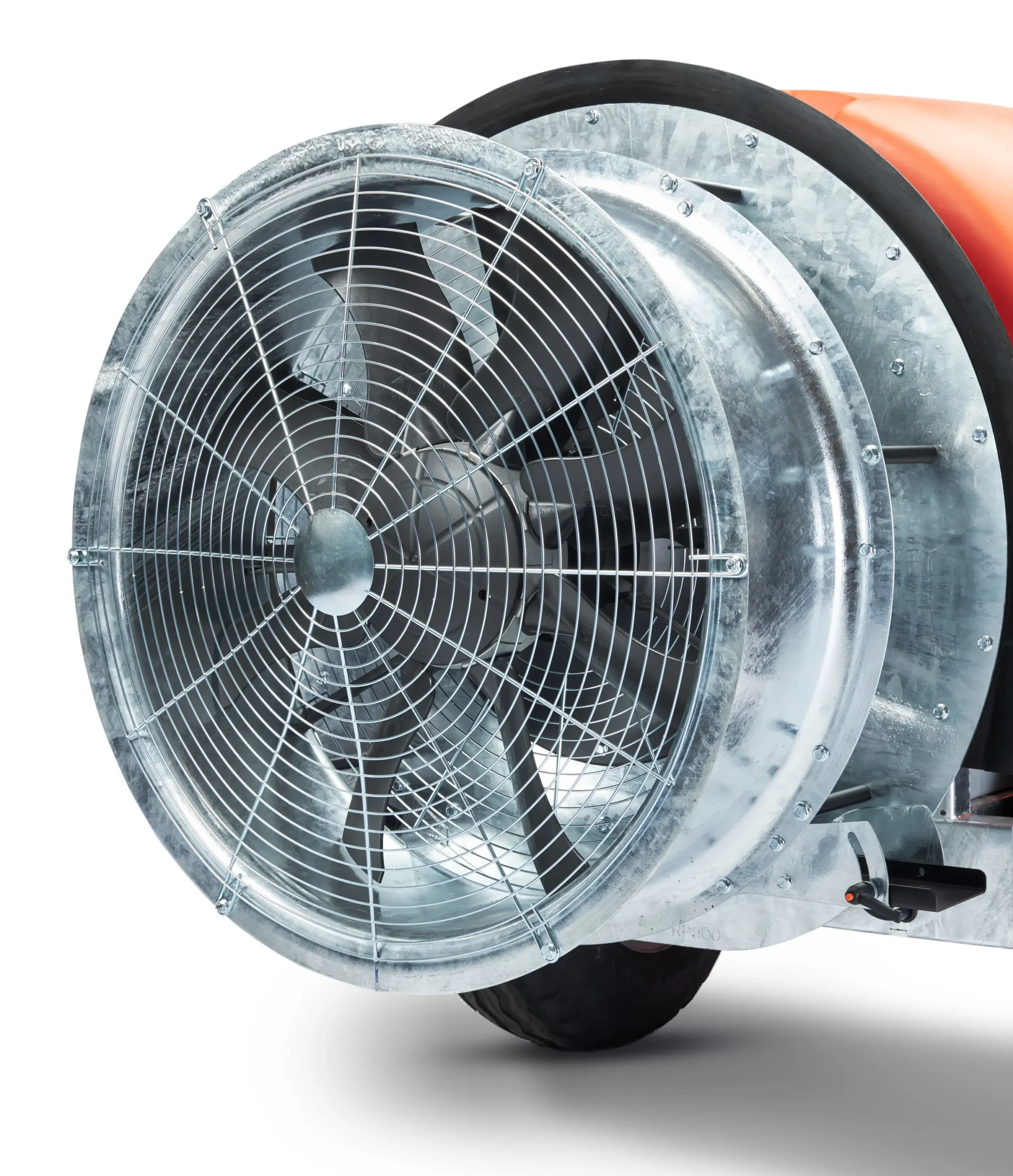

The Kronos TR is the Dal Degan trailed atomizer developed for professional vineyards, orchards, and olive groves requiring high operational autonomy and maximum productivity in phytosanitary treatments. Available with 600, 800, 1,000, 1,500, and 2,000-liter tanks, it is the ideal solution for large areas and contract work. The ventilation system uses a rear-suction axial fan, designed to ensure high performance while maintaining a compact structure that is easy to maneuver even in the narrowest rows. The adjustable helical blades in antibacterial glass-reinforced nylon ensure a powerful and uniform airflow, reducing noise and helping to limit the spread of plant diseases between different plots. The two-speed plus neutral gearbox allows for optimizing the air volume based on the crop and forward speed, reducing fuel consumption and power takeoff from the tractor. The distribution system features double brass nozzle holders with ATR nozzles and an anti-drip system, ensuring high spraying precision and reduced waste. A distinctive feature of the trailed version is the adjustable axle, which allows the track width to be adapted to the tractor’s tracks, limiting soil compaction and promoting more sustainable agronomic management. The high-resistance galvanized frame and polyethylene tank guarantee reliability and long life. Various fan configurations are available, from 600 to 900 mm, to adapt the machine to the different needs of vineyards, orchards, and olive groves. The Kronos TR is the ideal choice for those seeking a professional high-capacity trailed atomizer, designed to ensure uniform coverage, drift reduction, and maximum efficiency in phytosanitary treatments.

Fields of Application

Professional vineyards with espalier, counter-espalier and pergola training systems
Large-scale commercial orchards
Professional olive groves with medium and wide planting layouts
Specialized commercial-scale tree crops
Professional contractors working on different client farms
Structured farms focused on reducing fuel consumption
Sustainable agriculture and conservative soil management (adjustable axle)
Treatments on surfaces requiring 1,000-2,000 liter capacity

Technical Data

TYPE	TRAILED ATOMIZER
TANK CAPACITY	600 – 1,000 – 1,500 – 2,000 L
TANK MATERIAL	COMPACT AND RESISTANT POLYETHYLENE
FRAME	PROPERLY SIZED GALVANIZED STEEL
VENTILATION SYSTEM	AXIAL IMPELLER WITH FRONT INTAKE
AVAILABLE FAN DIAMETERS	600 – 700 – 800 – 900 mm
BLADES	HELICAL NYLON-GLASS WITH ANTIBACTERIAL COMPOUND, ADJUSTABLE
GEARBOX	2-SPEED + NEUTRAL, WITH CUSTOMIZED GEAR RATIOS
NOZZLE HOLDERS	DOUBLE BRASS, OUT-OF-FLOW
ANTI-DRIP DIAPHRAGM	YES, STANDARD
NOZZLE TYPE	ATR (TURBULENCE), WITH FINE ADJUSTMENT
WHEEL AXLE	WIDTH-ADJUSTABLE TO ADAPT TO EXISTING TRACKS
FAN RPM	FROM 1,200 TO 1,640 rpm (depending on configuration)
EMPTY WEIGHT	FROM 330 TO 645 kg (depending on configuration)
LENGTH	FROM 2,500 TO 3,310 mm
WIDTH	FROM 1,300 TO 1,670 mm

Benefits

Four capacities available: 600, 800, 1,000, 1,500 or 2,000 liters
Maximum working autonomy for extended shifts without refilling
Rear intake: shorter machine, better maneuverability
Antibacterial nylon-glass helical blades: does not transmit diseases between plants
Reduced noise thanks to the helical geometry of the blades
2-speed + neutral gearbox with customized ratios
Lower power consumption: lower tractor fuel consumption
Double brass out-of-flow nozzle holders with ATR nozzles
Standard anti-drip diaphragm: no waste during maneuvers
Adjustable wheel axle: adaptation to existing ground tracks
Agronomic advantage: no compaction of new soil areas
Galvanized steel frame: corrosion resistance and multi-year durability
Eight fan configurations for crop-specific sizing
Italian design and Dal Degan engineering based on 150 years of experience
