TRAILED CANNON SPRAYER FOR LONG-RANGE CROP PROTECTION TREATMENTS — 1,500-2,000 LITERS

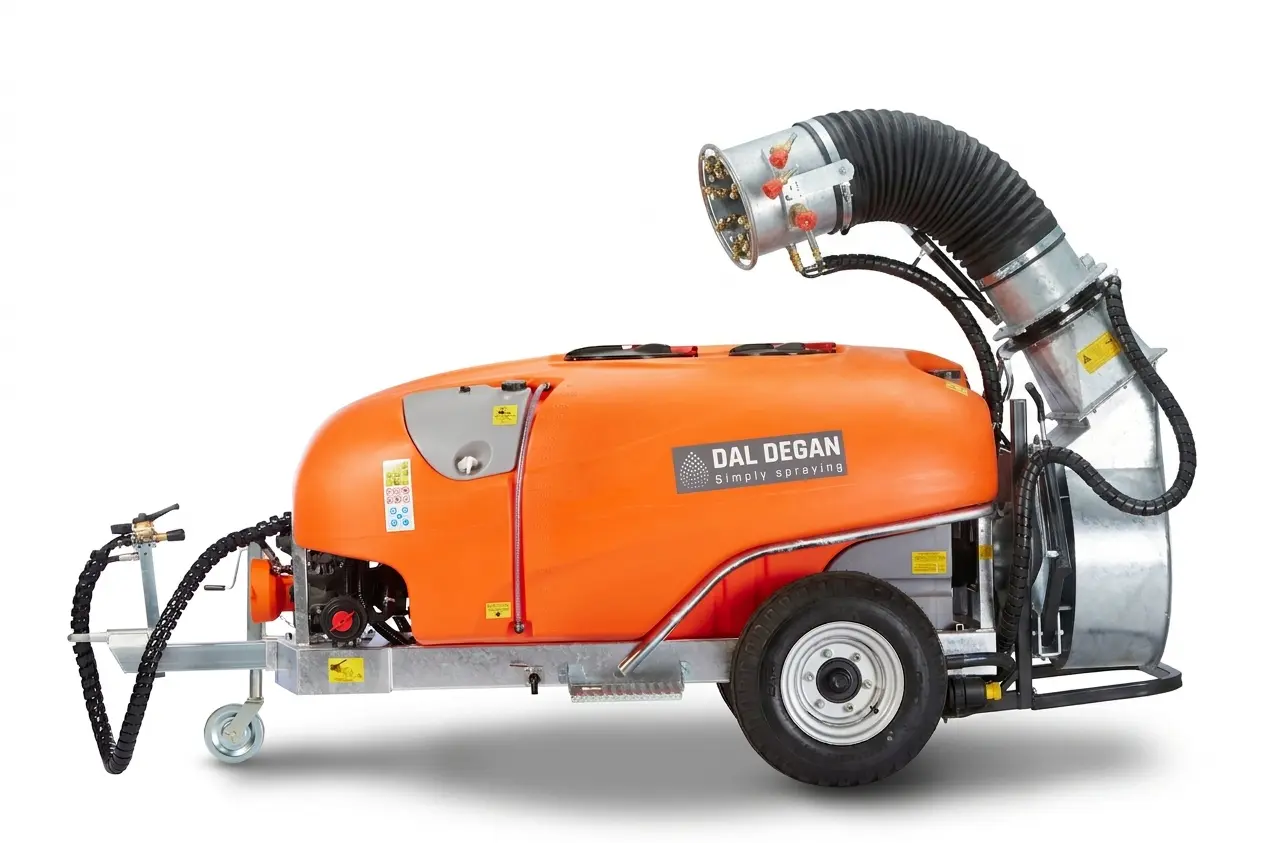

Ulisse TR

Ulisse TR is the Dal Degan trailed cannon atomizer designed to perform professional crop protection treatments on large areas, ensuring high throw distance, jet precision and maximum operational autonomy. Available with 1,500 or 2,000 liter tank, it is the ideal solution for olive groves, tall fruit orchards, palm groves, nurseries, greenhouses and professional public green maintenance. The robust hot-dip galvanized steel frame ensures excellent corrosion resistance and long service life even in particularly humid environments or in the presence of aggressive crop protection products. The main polyethylene tank is designed for total emptying and is completed with circuit washing and hand washing tanks for greater operator safety. The system is equipped with a high-performance Comet diaphragm pump, sized to ensure work continuity even during prolonged treatments. The fan unit with dual 450 mm conveyor generates a powerful and uniform air flow that feeds the adjustable cannon, allowing easy reach of tall vegetation and difficult-to-access areas. The head is equipped with stainless steel nozzle holders and brass anti-drip nozzles, which ensure uniform product distribution and reduce waste and dripping. Electric orientation control directly from the driver’s seat is available on request to increase comfort and operational precision. Ulisse TR is particularly suitable as an olive grove atomizer, palm atomizer, tall fruit orchard atomizer and for interventions against the red palm weevil. Thanks to the high tank capacity and long cannon throw distance, it allows reducing refueling stops and significantly increasing productivity in professional farms and contracting activities. The combination of large autonomy, treatment precision and construction robustness makes Ulisse TR one of the most effective solutions for tree crop protection and large-scale green maintenance.
Fields of Application
  • Extensive professional olive groves with mature canopies
  • Palm groves and urban palm trees — red palm weevil control
  • High-stem fruit orchards: pomegranate, fig, chestnut, walnut
  • Street trees and large public parks
  • Historic gardens and monumental parks
  • Berry and small fruit crops on tall rows
  • Large-scale greenhouse crops
  • Overhead-trained vineyards and high vertical growth systems
  • Hard-to-reach areas and irregular geometries
  • Contractors specialized in tree treatments
  • Municipal green maintenance services for large areas
TYPE TRAILED ATOMIZER WITH CANNON
MAIN TANK CAPACITY 1,500 – 2,000 L
TANK MATERIAL TOTAL DRAIN POLYETHYLENE
CIRCUIT RINSE TANK INTEGRATED
HAND WASH TANK INTEGRATED
FRAME HOT-DIPPED GALVANIZED STEEL PROFILE
PUMP TYPE COMET DIAPHRAGM
FAN UNIT DUAL CONVEYOR Ø 450 MM
CONVEYOR MOBILE, 2/3 MOVEMENTS
CONVEYOR ADJUSTMENT MANUAL (ELECTRONIC ON REQUEST)
NOZZLE HOLDER TUBES STAINLESS STEEL
NOZZLES ANTI-DRIP BRASS
CANNON TERMINAL WITH DIRECTIONAL FLAP
TRACTOR HITCH TRAILED WITH DRAWBAR
CHASSIS CONFIGURATION TWO PNEUMATIC WHEELS
  • Maximum autonomy: 1,500 or 2,000 liters for extended shifts without refilling
  • Long-range cannon: treatments on palms and very tall trees
  • Mobile conveyor with 2-3 movements: precise jet orientation
  • Electronic conveyor adjustment available on request
  • Hot-dipped galvanized steel frame: maximum corrosion resistance
  • Italian-made Comet pump: reliability and spare parts availability
  • Stainless steel nozzle holder tubes: durability and chemical resistance
  • Anti-drip brass nozzles: no product waste, no contamination
  • Directional flap on terminal: jet directionality
  • Dual Ø 450 mm conveyor: powerful and uniform airflow
  • Three integrated tanks: main, circuit rinse, hand wash
  • Complete main tank drainage: easy cleaning and no residue
  • Trailed chassis: weight separated from tractor, compatible with medium power
  • Application versatility: olive groves, palms, trees, parks
  • Professional solution for contractors and municipal green services
