TRAILED MIST BLOWER WITH FRONT-SUCTION AXIAL FAN — 600, 1,000, 1,500, 2,000 LITERS

Platinum TR

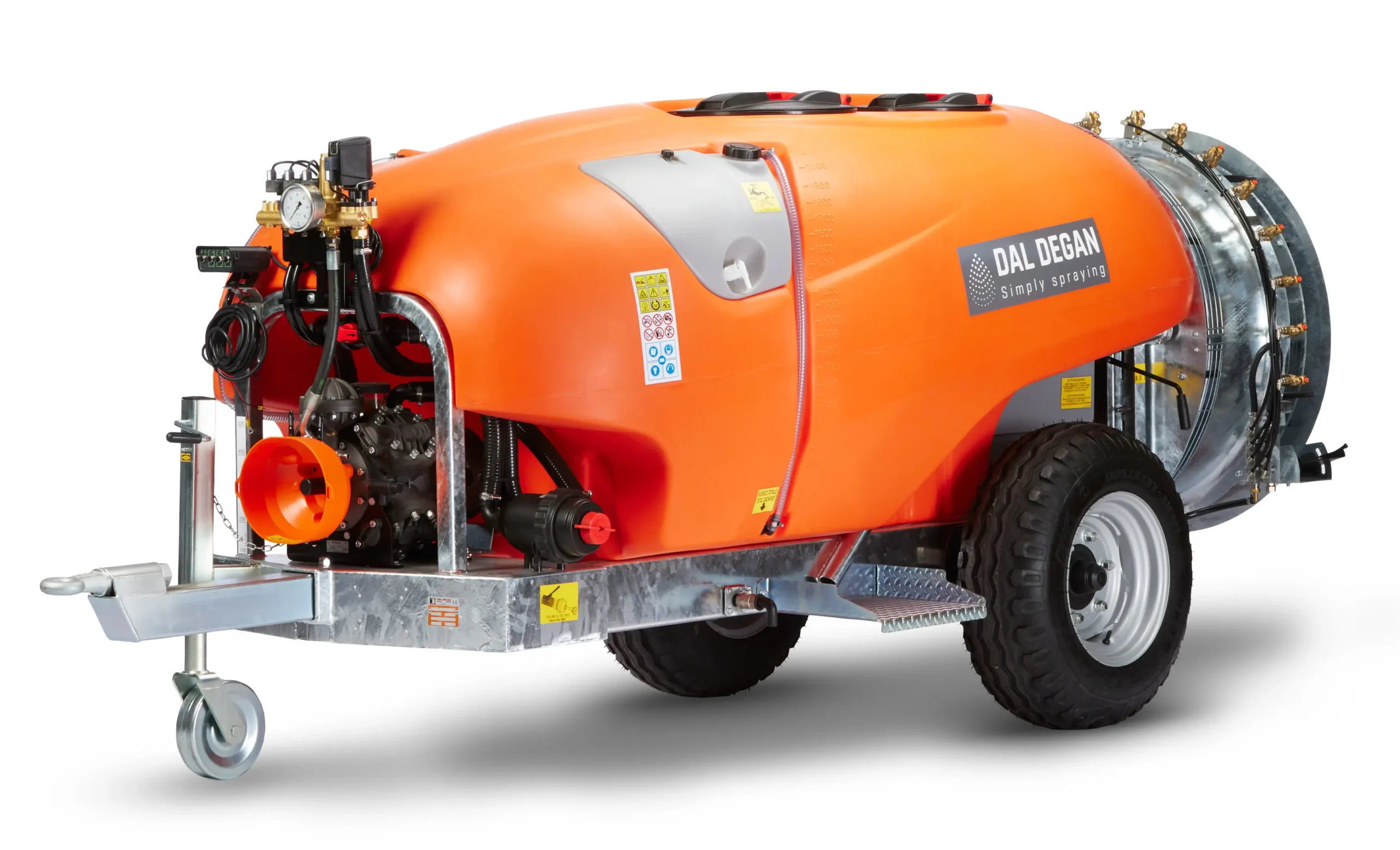

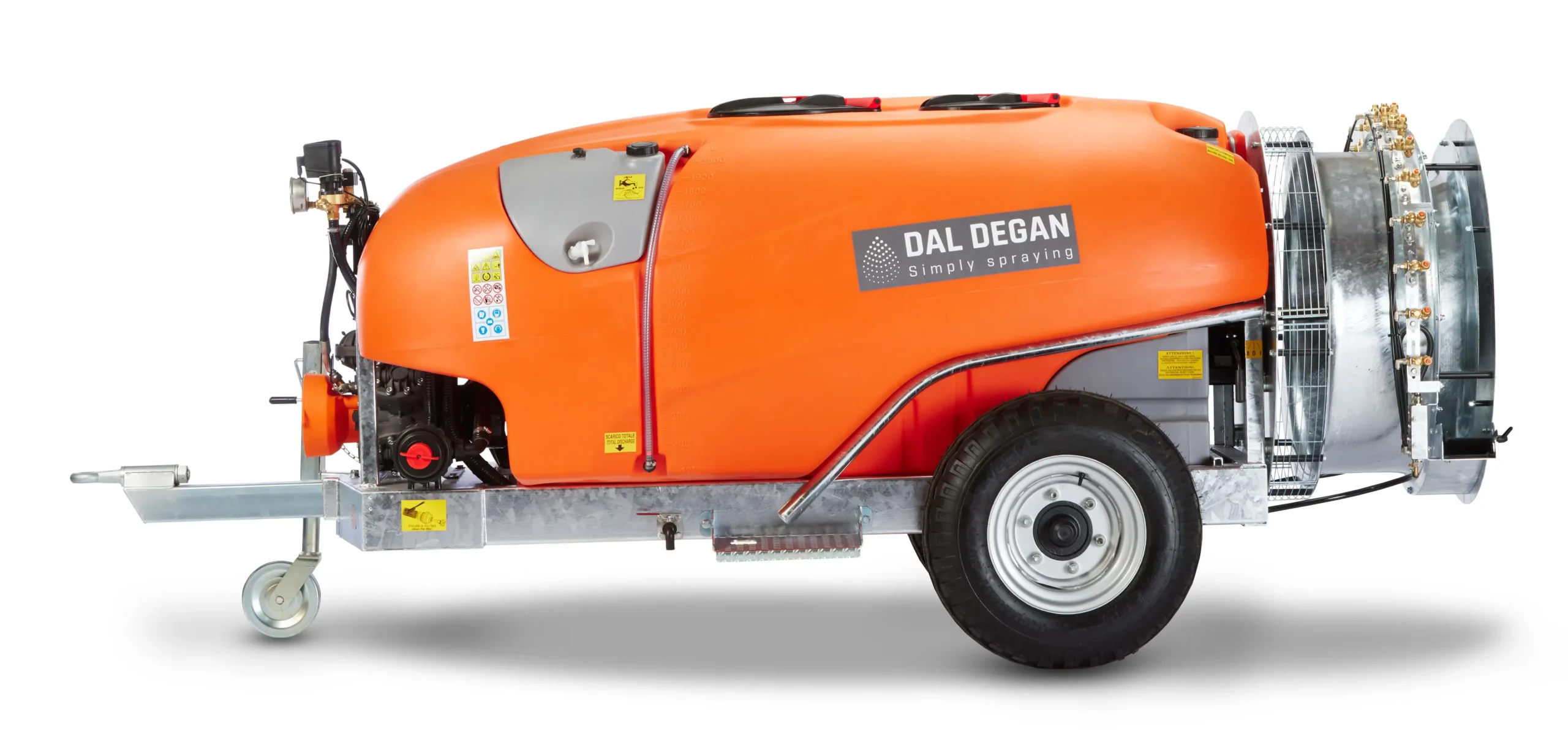

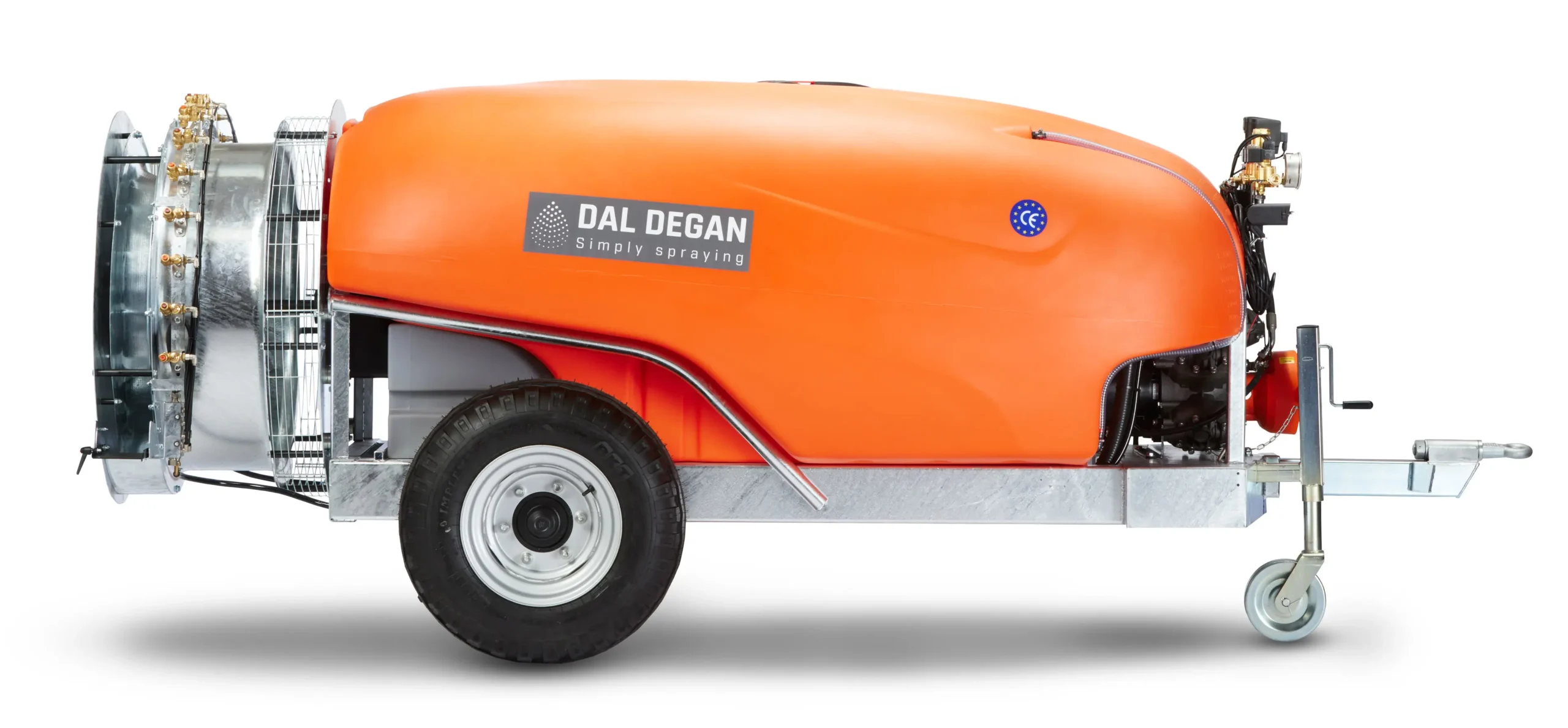

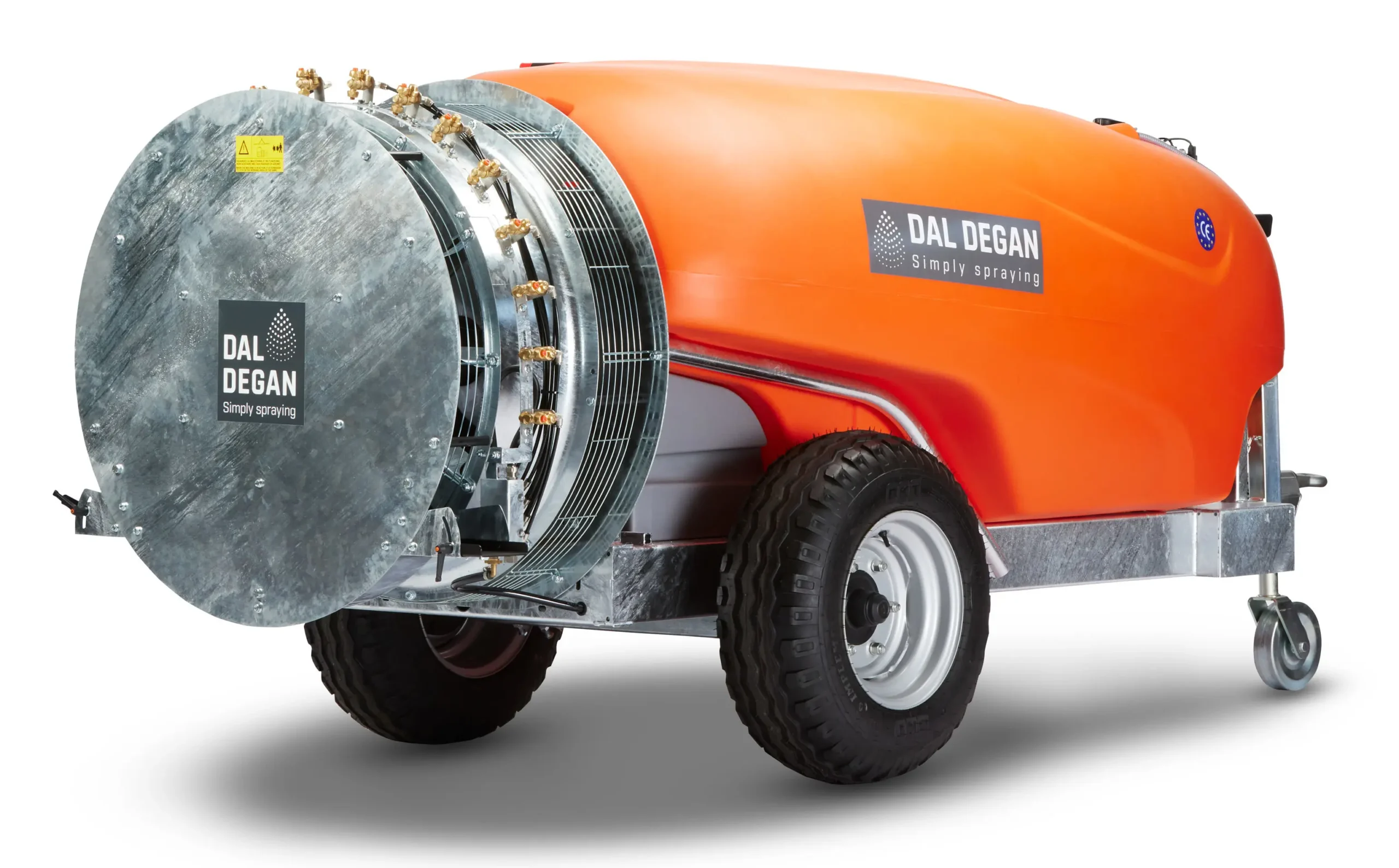

The Platinum TR is the Dal Degan trailed mist blower developed for professional wine, fruit, and olive growing companies requiring high operating autonomy, maximum productivity, and advanced management of phytosanitary treatments. Available with 600, 800, 1,000, 1,500, and 2,000-liter tanks, it is the ideal solution for large agricultural areas and contract work. The ventilation system uses a front-suction axial fan, designed to draw in clean air and ensure uniform product distribution on the vegetation. The adjustable helical blades in antibacterial nylon-glass ensure high aerodynamic performance, reduced noise, and better phytosanitary protection of crops. The two-speed plus neutral gearbox allows the air volume to be adapted to different operating conditions, reducing consumption and improving the overall efficiency of the machine. The distribution system is equipped with double brass nozzle holders, ATR nozzles, and an anti-drip system, ensuring spraying precision, drift reduction, and less product waste. A distinctive feature of the Platinum TR is the brass electric control unit ready for an on-board computer, a solution designed for modern agriculture and digital treatment management. The system allows control of operating functions directly from the cab, monitoring of working parameters, and integration with precision farming systems. The adjustable half-axle allows the track width to be adapted to the tractor’s tracks, limiting soil compaction and improving the sustainability of operations. The machine is completed by a robust galvanized frame and a high-resistance polyethylene tank, designed to ensure reliability and durability over time. The Platinum TR is the ideal solution for those looking for a professional trailed mist blower for vineyards, orchards, and olive groves, with high autonomy, advanced electronic management, and maximum distribution quality.

Fields of Application

Extended professional vineyards with espalier, counter-espalier and pergola systems
Large-scale commercial orchards
Professional olive groves with medium and wide planting distances
Specialized commercial-scale tree crops
Wineries oriented towards precision agriculture
Professional contractors working on different client farms
Structured farms oriented towards fuel consumption reduction
Sustainable agriculture and conservative soil management (adjustable semi-axle)
Phytosanitary treatments with digital traceability and documentation

Technical Data

TYPE	TRAILED ATOMIZER
TANK CAPACITY	600 – 800 – 1,000 – 1,500 – 2,000 L
TANK MATERIAL	COMPACT AND RESISTANT POLYETHYLENE
FRAME	ADEQUATELY DIMENSIONED GALVANIZED STEEL

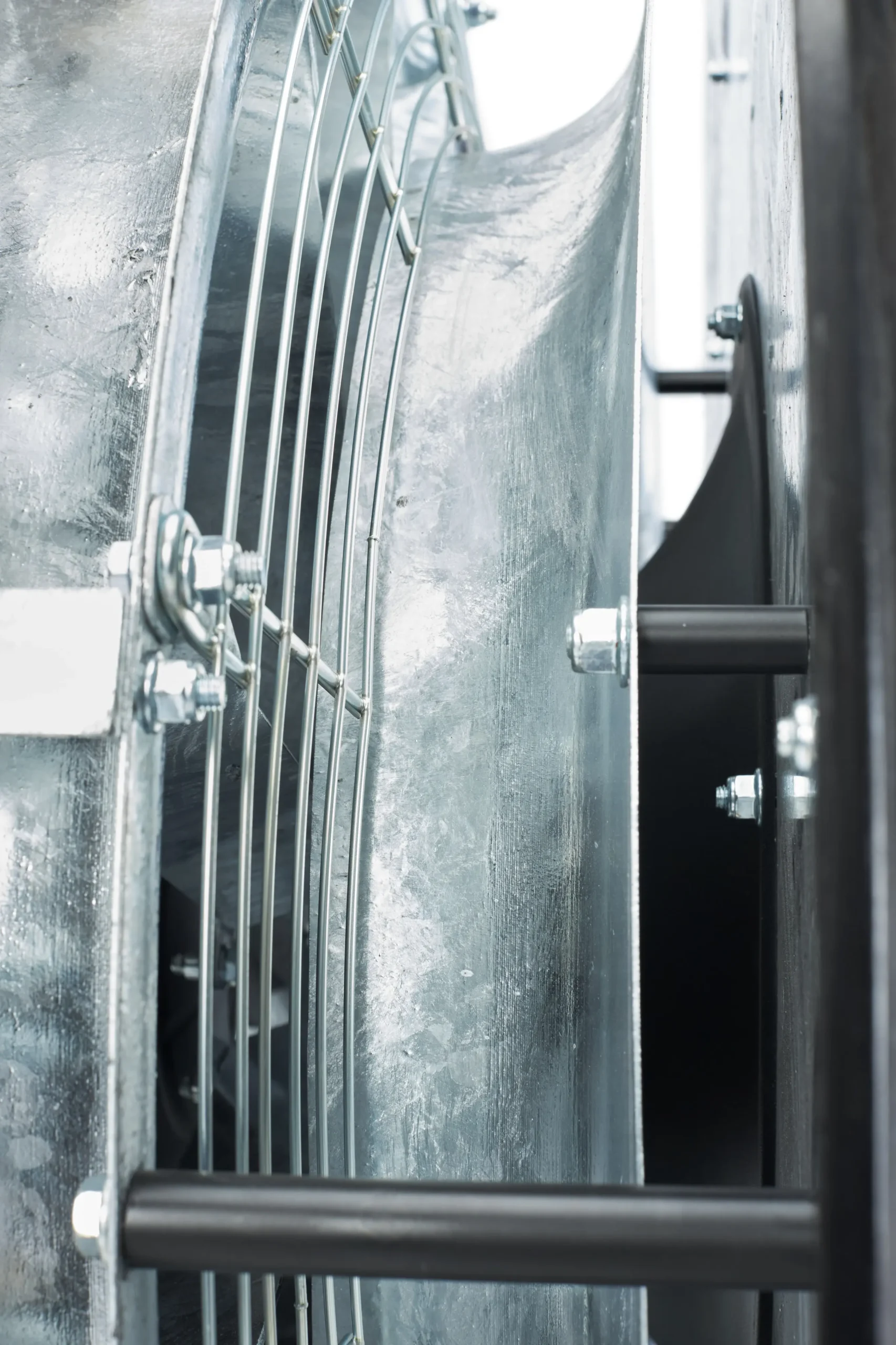

VENTILATION SYSTEM	AXIAL IMPELLER WITH FRONT SUCTION
AVAILABLE FAN DIAMETERS	600 – 700 – 800 – 900 mm
FAN WIDTH	50 – 60 – 70 – 80 – 90 cm (depending on configuration)

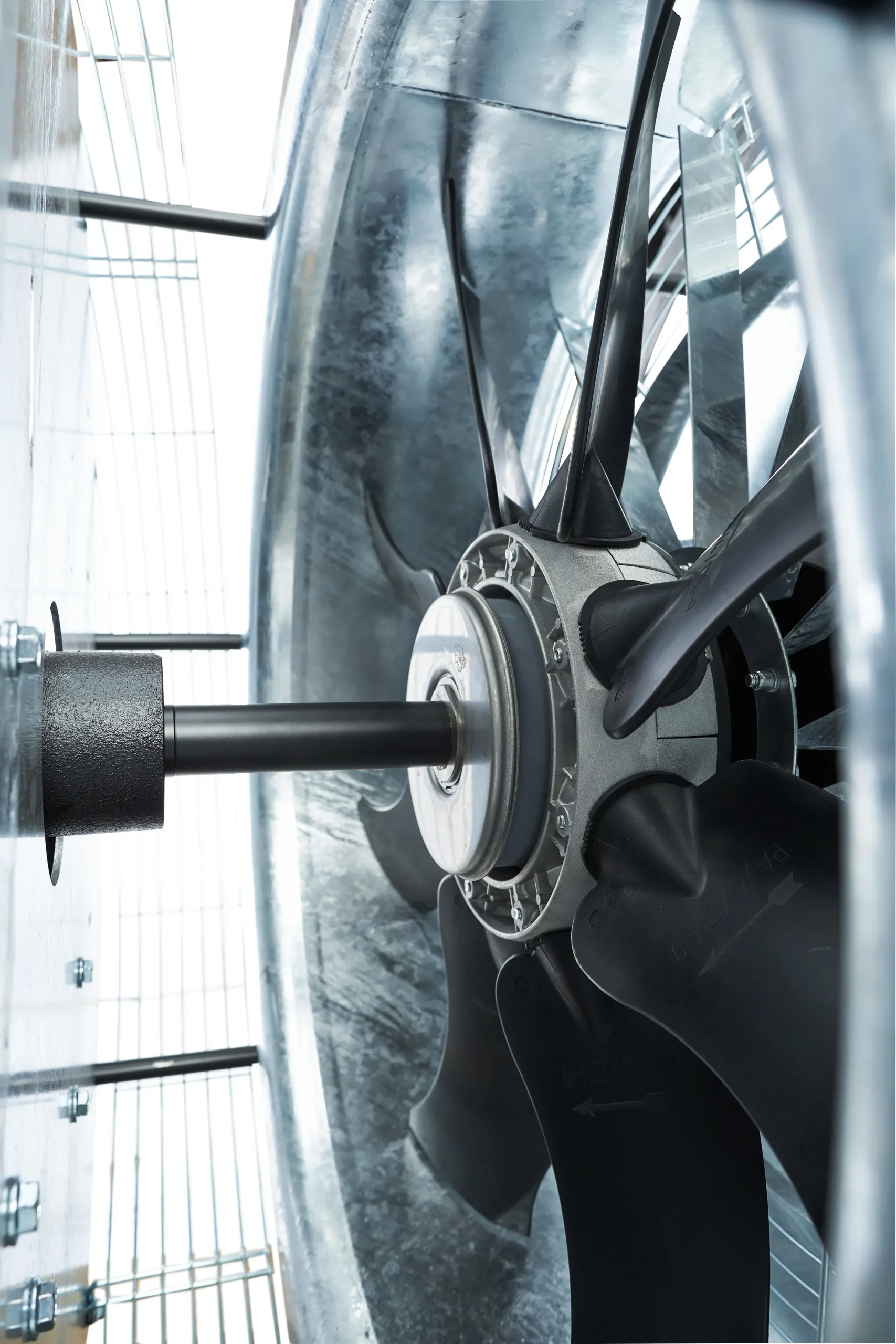

BLADES	HELICAL IN NYLON-GLASS WITH ANTIBACTERIAL COMPOUND, ADJUSTABLE

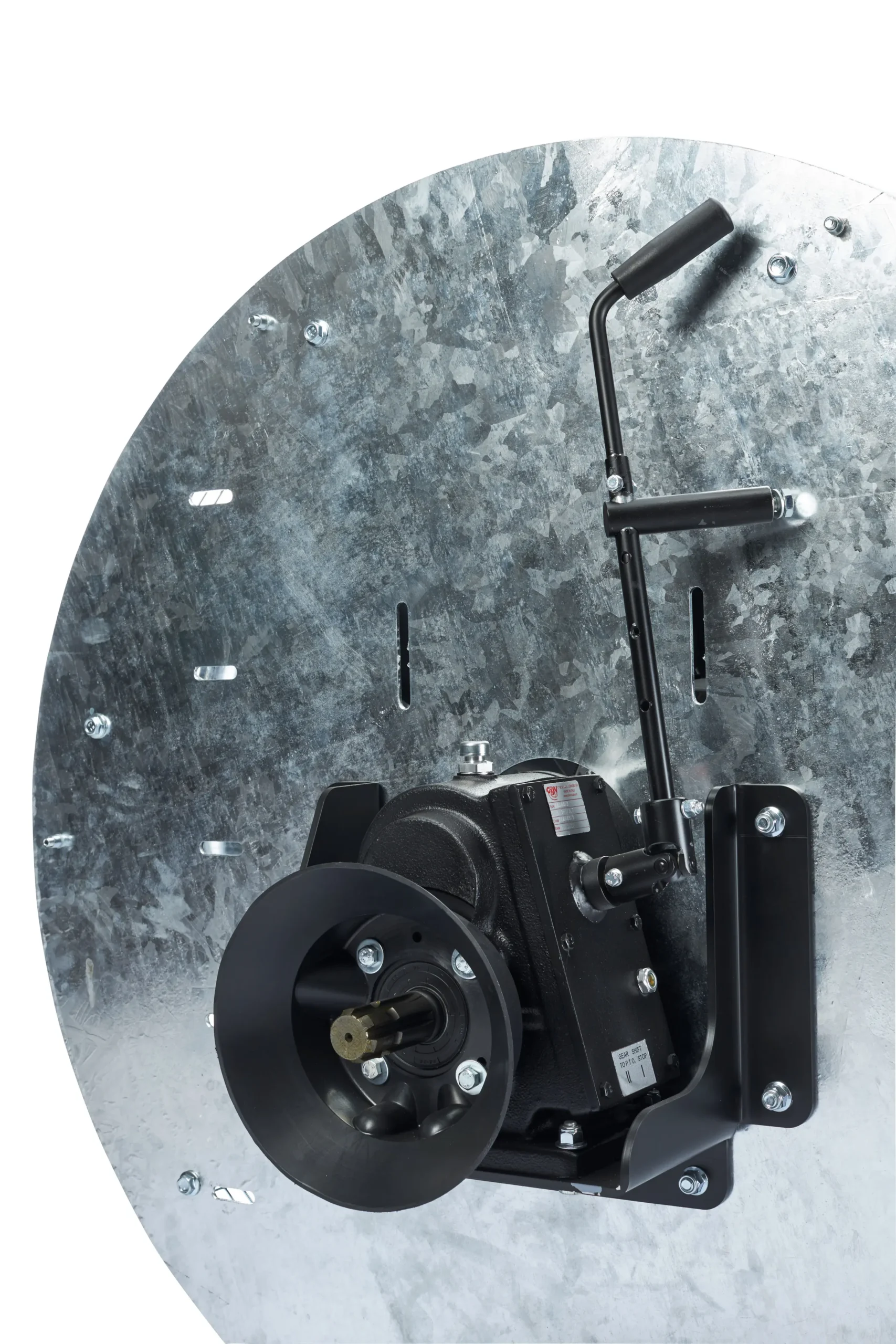

GEARBOX	2-SPEED + NEUTRAL, WITH CUSTOMIZED MULTIPLICATION RATIOS

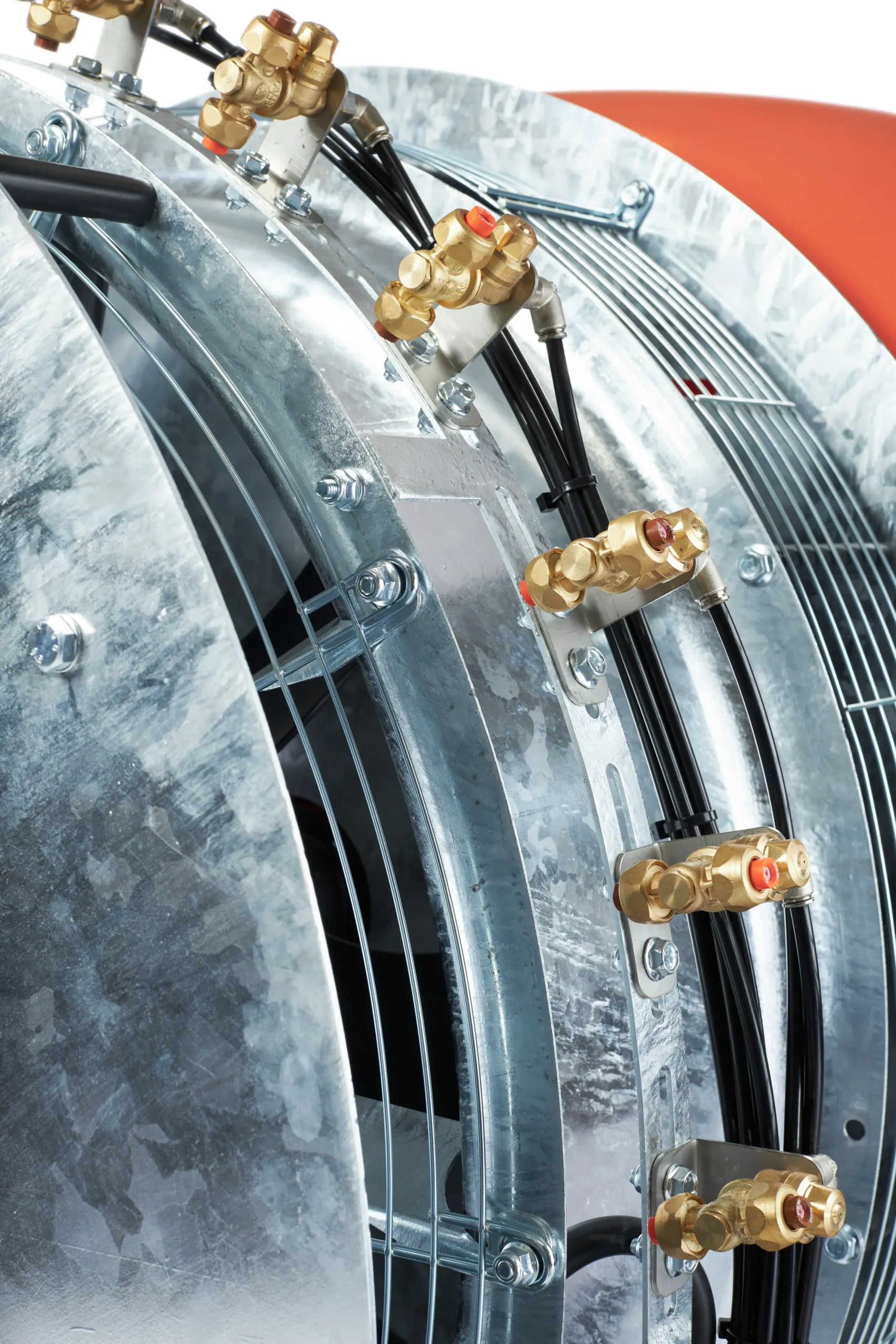

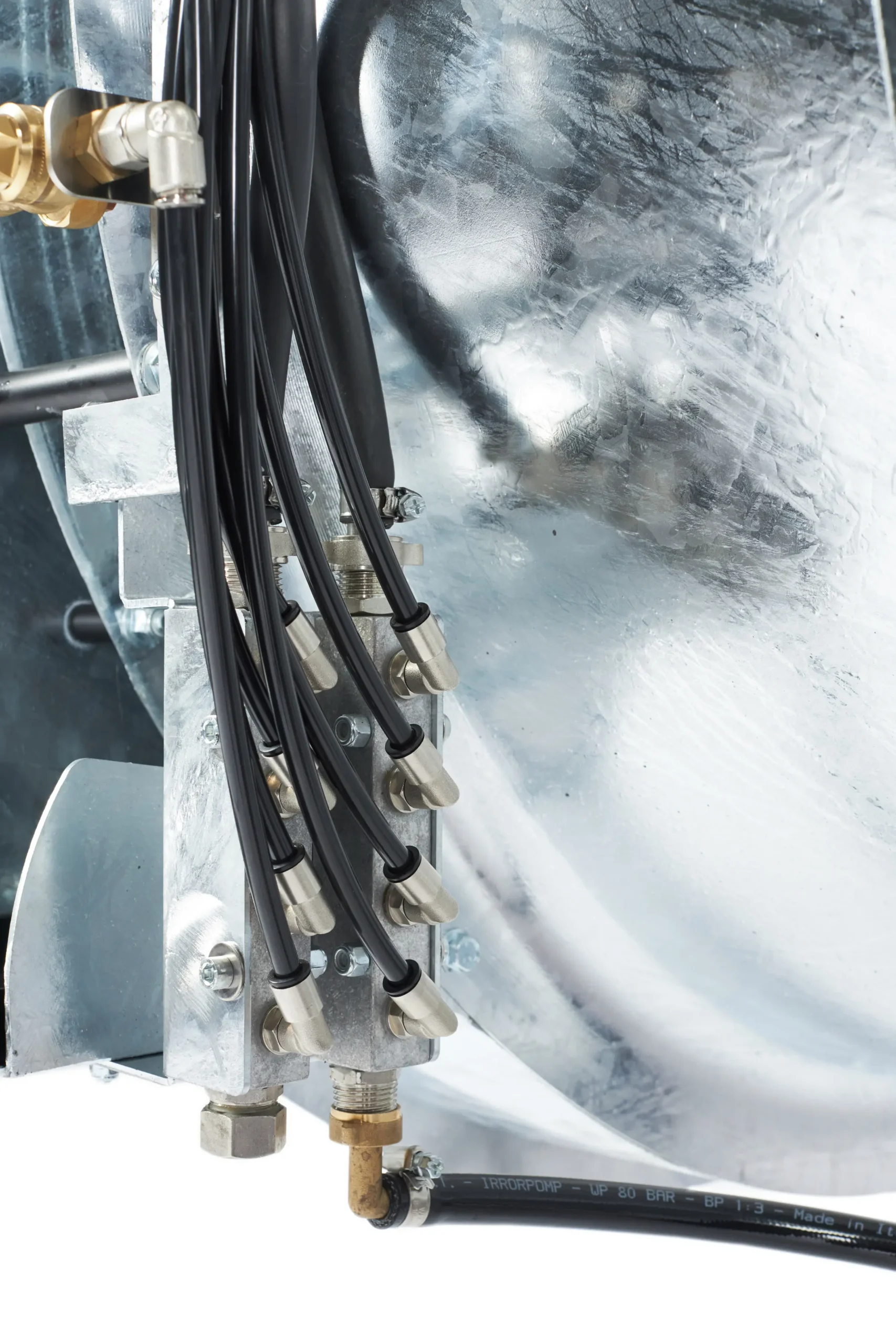

NOZZLE HOLDERS	DOUBLE IN BRASS, OUT OF FLOW
ANTI-DRIP DIAPHRAGM	YES, STANDARD
NOZZLE TYPE	ATR (TURBULENCE), WITH FINE ADJUSTMENT

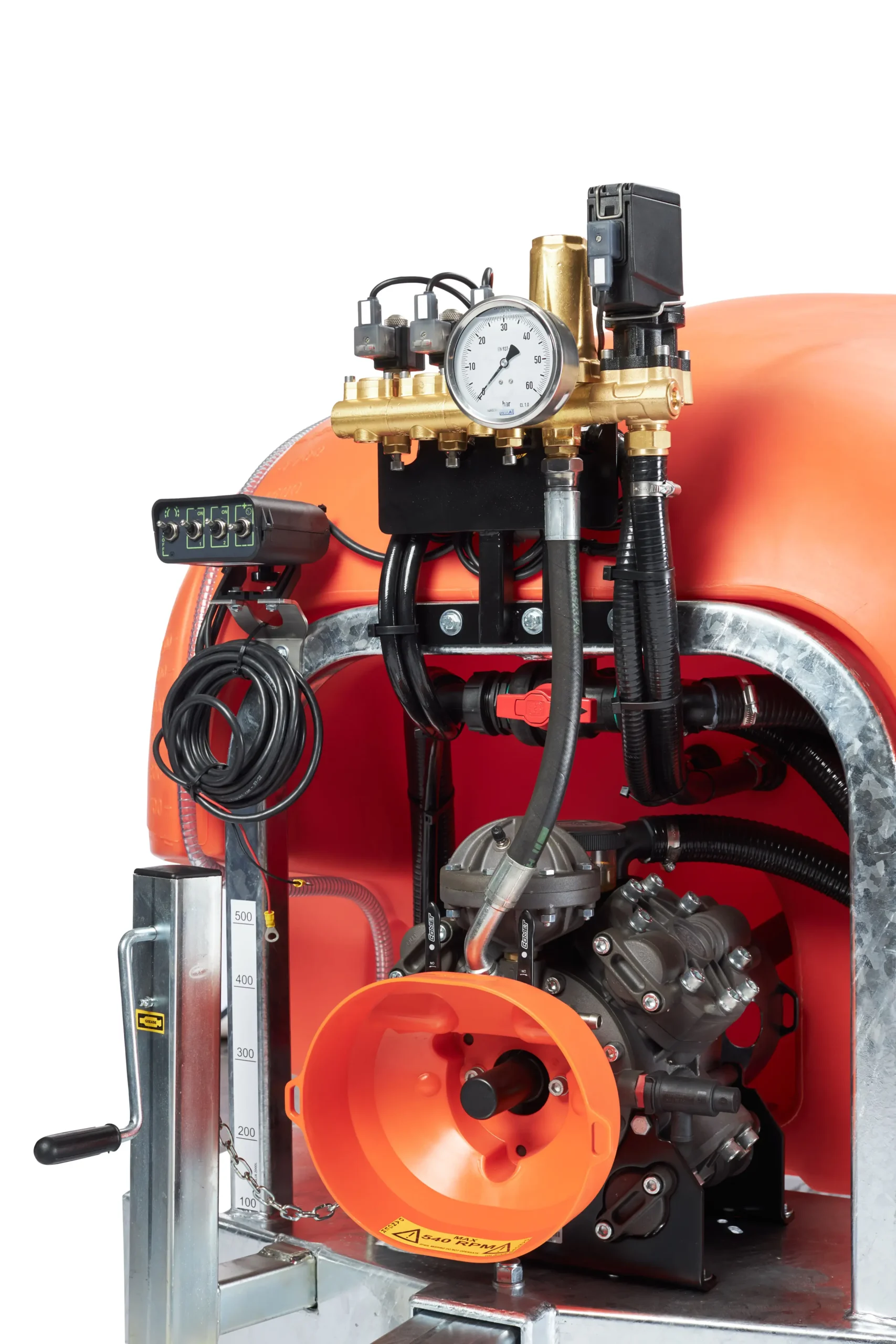

ELECTRIC CONTROL UNIT	IN BRASS, COMPATIBLE WITH ON-BOARD COMPUTER
ON-BOARD COMPUTER	UPON REQUEST
WHEEL SEMI-AXLE	WIDTH ADJUSTABLE TO ADAPT TO EXISTING TRACKS
FAN RPM	FROM 1,200 TO 1,640 rpm (according to configuration)
EMPTY WEIGHT	FROM 320 TO 640 kg (according to configuration)
LENGTH	FROM 2,440 TO 3,270 mm
WIDTH	FROM 1,300 TO 1,670 mm

Benefits

Four capacities available: 600, 800, 1,000, 1,500 or 2,000 liters
Maximum working autonomy for extended shifts without refills
Front suction: clean air intake, reduced flow contamination
Helical nylon-glass antibacterial blades: does not transmit diseases between plants
Reduced noise thanks to the helical geometry of the blades
2-speed + neutral gearbox with customized ratios
Lower power absorption: lower tractor fuel consumption
Double brass out-of-flow jets with ATR nozzles
Anti-drip diaphragm as standard: no waste during maneuvers
Brass electric control unit: corrosion resistance superior to aluminum
Compatible on-board computer: electronic management and digital traceability
Adjustable wheel semi-axle: adaptation to existing ground tracks
Agronomic advantage: no compaction of new soil strips
Galvanized steel frame: corrosion resistance and multi-year durability
Italian aesthetics and Dal Degan design based on 150 years of experience
