TRAILED TOWER MIST BLOWER WITH REAR SUCTION AXIAL IMPELLER — 600, 1,000, 1,500, 2,000 L

Xenon TR

The Xenon TR is the Dal Degan trailed mist blower dedicated to professional farms operating on large-scale vineyards, orchards, olive groves, kiwi, and tree crops. Available with 600, 800, 1000, 1500, and 2000 l tanks, it offers high operational autonomy and ideal distribution quality for crops characterized by tall canopies. A distinctive element of the machine is the combination of a tower with air conveyance and rear impeller suction, an exclusive solution that effectively reaches the upper part of the vegetation while maintaining a more compact structure compared to traditional tower mist blowers. The special internal baffles of the tower, developed through fluid dynamic studies, guide the airflow upwards while maintaining high energy and flow rate. The result is a uniform distribution of the plant protection product even in the highest canopies, improving treatment efficacy and reducing drift. The rear suction axial impeller contributes to the machine’s compactness, facilitating maneuvers at headlands and in narrower rows. The helical blades in antibacterial nylon-glass ensure high aerodynamic efficiency, reduced consumption, and a lower risk of pathogen transfer between different plots. The two-speed plus neutral gearbox allows the air volume to be adapted to different vegetative conditions. The double brass nozzle holders with ATR nozzles and anti-drip system ensure precise and uniform product distribution. The high-resistance galvanized frame, the polyethylene tank, and the adjustable axle complete a machine designed to guarantee productivity, reliability, and respect for the soil structure. The Xenon TR is the ideal trailed mist blower for those seeking maximum autonomy, excellent coverage of tall canopies, and a compact machine, perfect for modern fruit and olive growing systems.

Fields of Application

Large commercial orchards with tall, mature canopies
Professional espalier, counter-espalier and pergola vineyards
Professional olive groves with tall canopies
Specialized commercial-scale tree crops (kiwi, citrus, pomegranate)
Established wine, fruit and olive growing operations
Professional contractors working on different client farms
Farms focused on reducing fuel consumption
Sustainable agriculture and conservative soil management (adjustable axle)
Treatments on high areas of orchards thanks to tower with baffles

Technical Data

TYPE	TRAILED TOWER ATOMIZER
TANK CAPACITY	600 – 800 – 1,000 – 1,500 – 2,000 L
TANK MATERIAL	COMPACT AND RESISTANT POLYETHYLENE
FRAME	APPROPRIATELY SIZED GALVANIZED STEEL

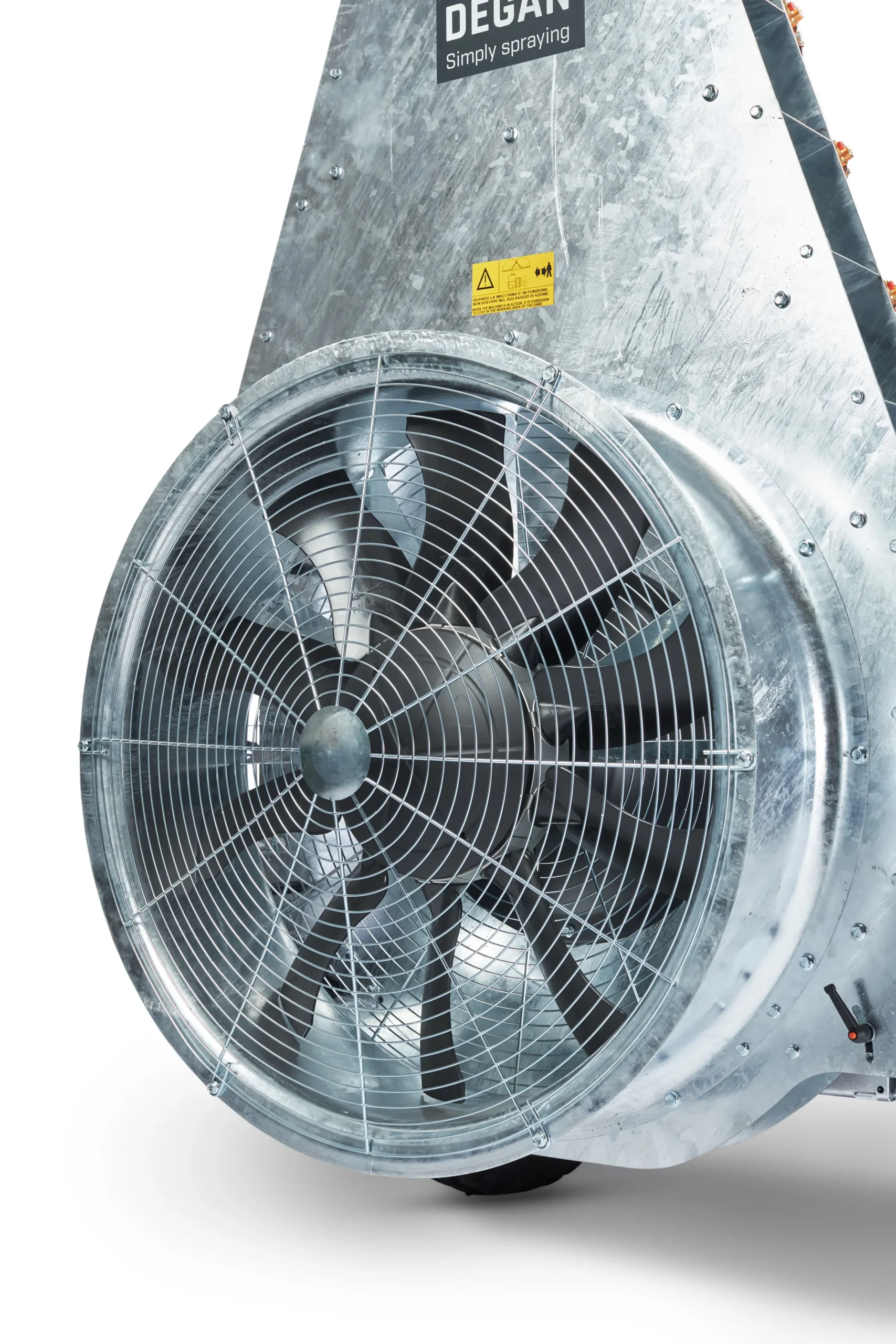

VENTILATION SYSTEM	AXIAL IMPELLER WITH REAR INTAKE

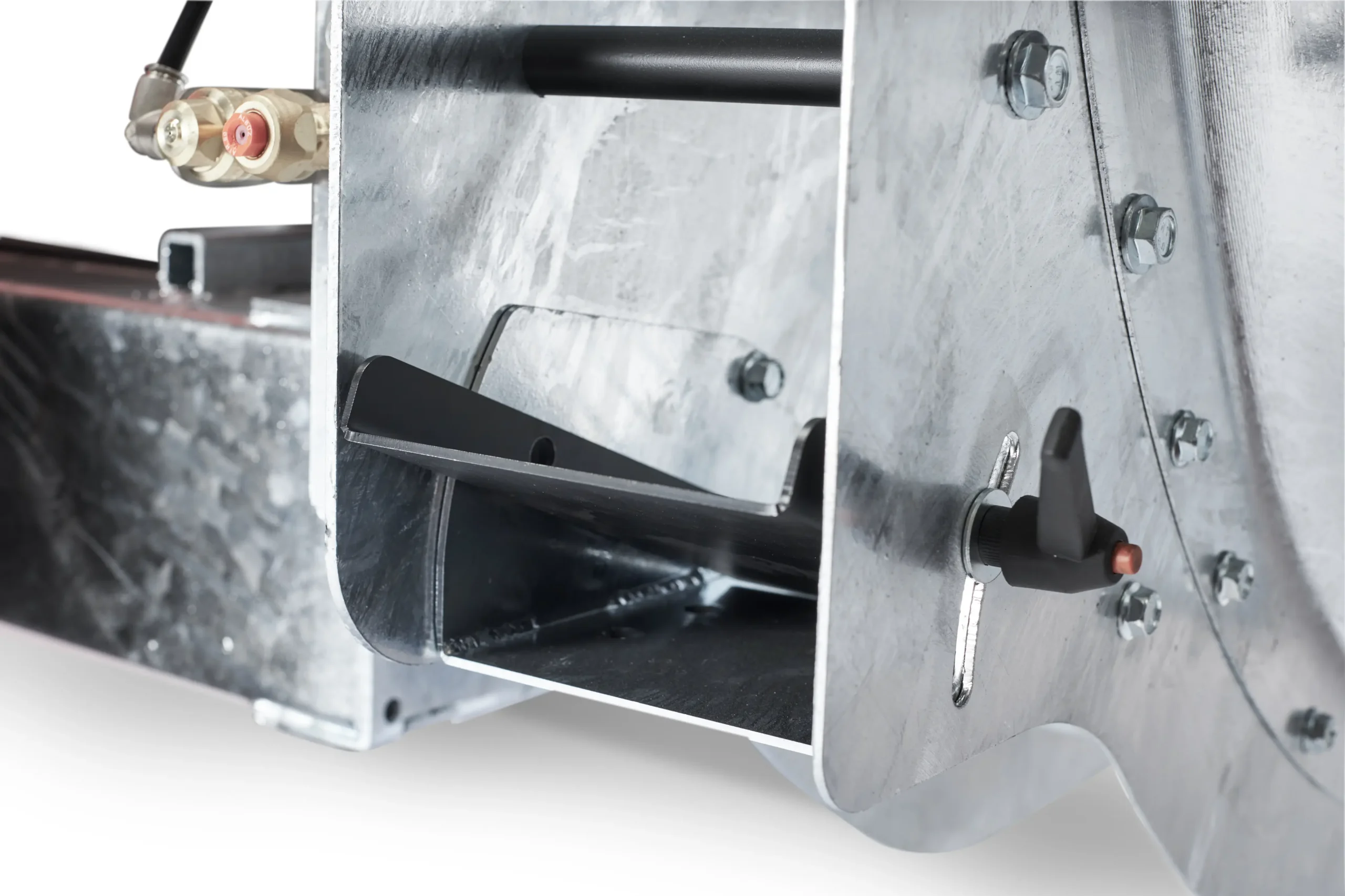

TOWER	WITH FLOW BAFFLES FOR CHANNELING UPPER AIRFLOW
AVAILABLE FAN DIAMETERS	600 – 700 – 800 – 900 mm
BLADES	HELICAL NYLON-GLASS WITH ANTIBACTERIAL COMPOUND, ADJUSTABLE
GEARBOX	2-SPEED + NEUTRAL, WITH CUSTOMIZED GEAR RATIOS

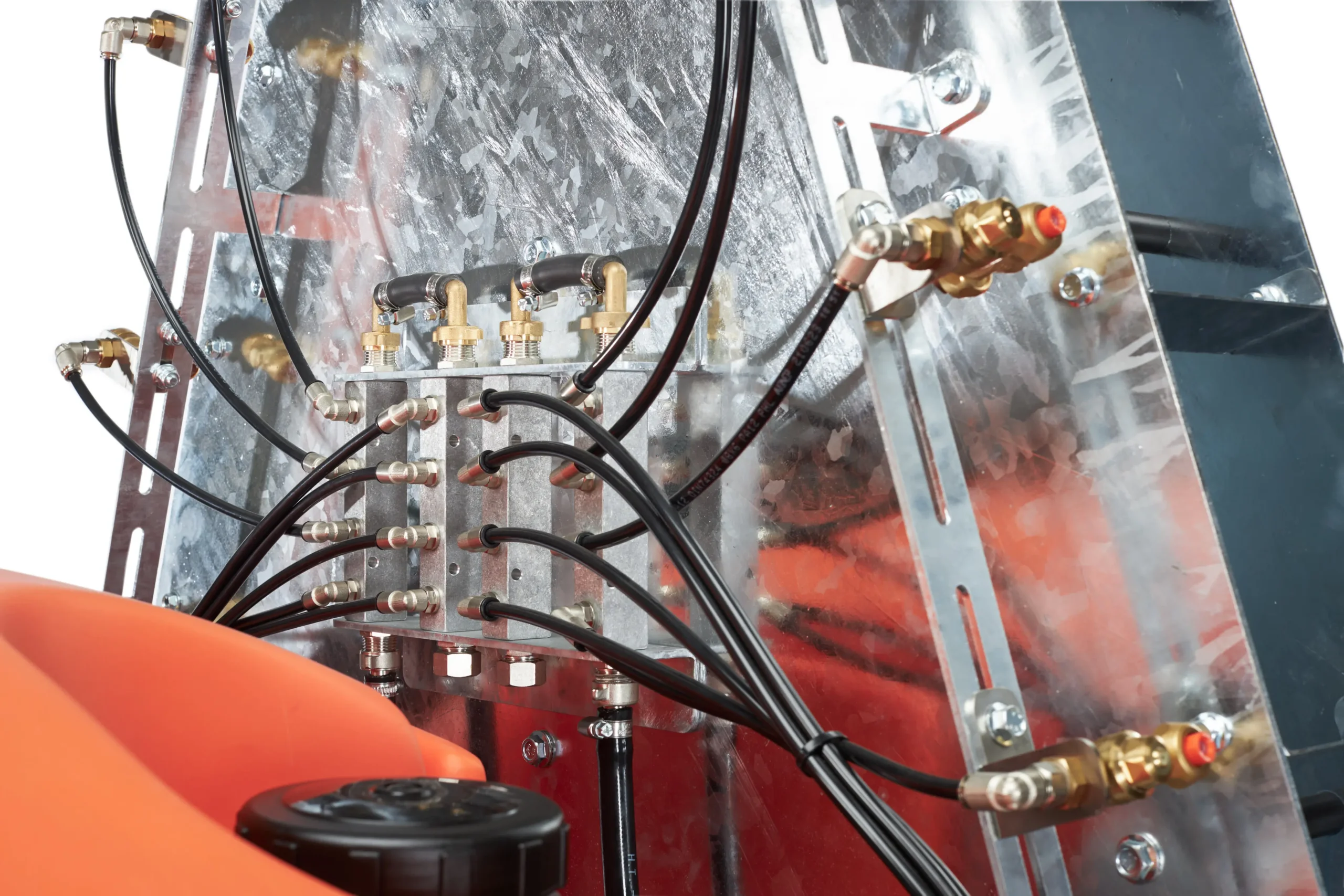

NOZZLE HOLDERS	DOUBLE BRASS, OUT OF AIRFLOW
ANTI-DRIP DIAPHRAGM	YES, STANDARD
NOZZLE TYPE	ATR (TURBULENCE), WITH FINE ADJUSTMENT
WHEEL AXLE	WIDTH-ADJUSTABLE TO ADAPT TO EXISTING TRACKS
FAN RPM	FROM 1,660 TO 2,400 rpm (depending on configuration)
EMPTY WEIGHT	FROM 340 TO 740 kg (depending on configuration)
LENGTH	FROM 2,510 TO 3,325 mm
WIDTH	FROM 1,300 TO 1,670 mm

Benefits

Unique combination: tower + rear intake in the trailed version
Tower with flow baffles: perfect spraying even in high areas of orchards
Rear intake: compact machine in length compared to front-intake equivalents
Four available capacities: 600, 800, 1,000, 1,500 or 2,000 liters
Maximum working autonomy for extended shifts without refilling
Helical antibacterial nylon-glass blades: does not transmit diseases between plants
Reduced noise thanks to the helical geometry of the blades
2-speed + neutral gearbox with customized ratios
Lower power absorption: lower tractor fuel consumption
Double brass nozzle holders out of airflow with ATR nozzles
Anti-drip diaphragm standard: no waste during maneuvers
Adjustable wheel axle: adaptation to existing ground tracks
Agronomic advantage: no compaction of new soil areas
Galvanized steel frame: corrosion resistance and multi-year durability
Italian aesthetics and Dal Degan engineering based on 150 years of experience
