PROFESSIONAL UNIT FOR URBAN PEST CONTROL WITH CENTRIFUGAL TURBINE AND REMOTE-CONTROLLED CANNON HEAD

Eco Pick Spray

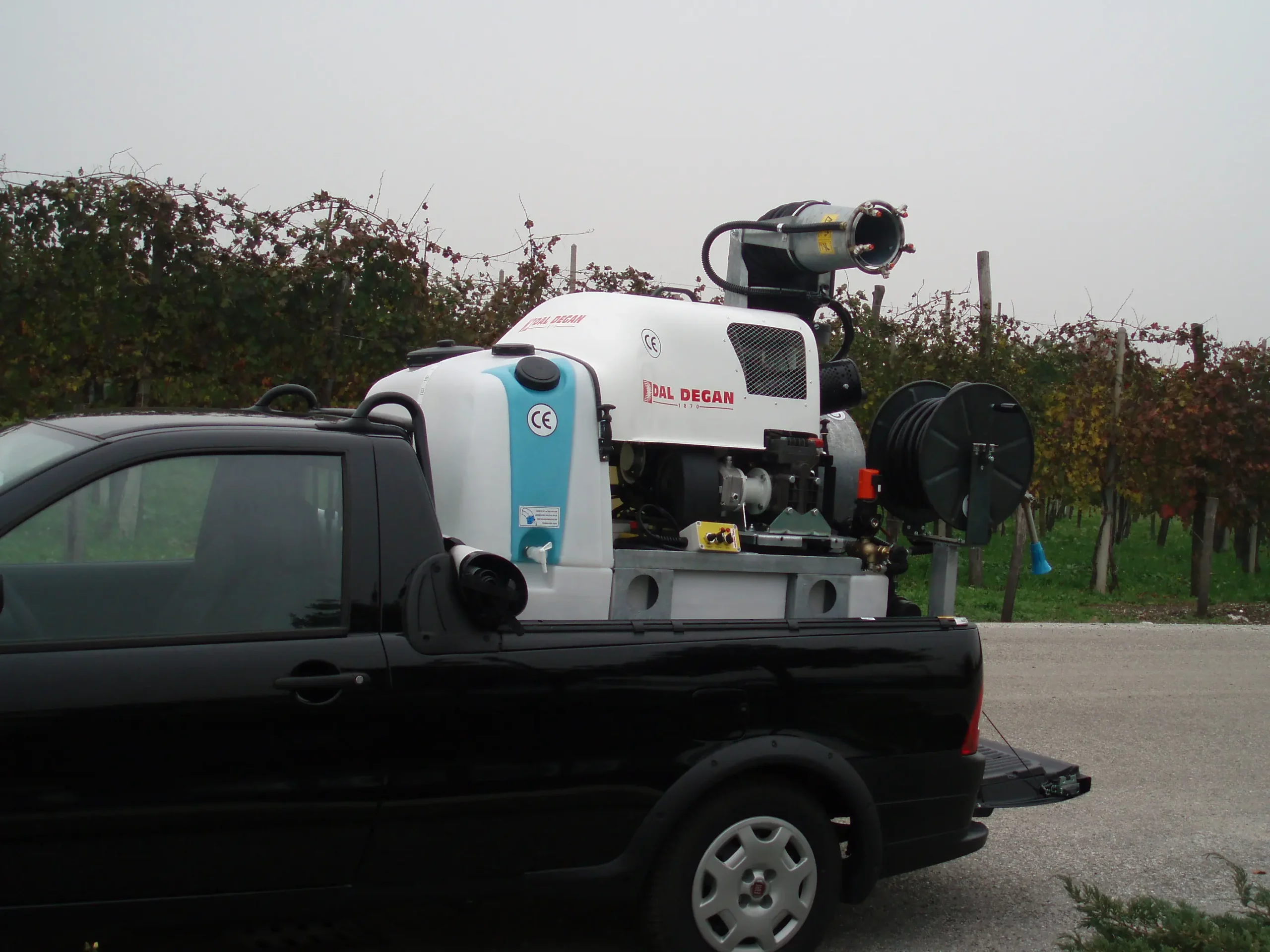

Eco Pick Spray is the professional Dal Degan nebulizer designed for urban pest control, mosquito control, sanitization of large surfaces, and long-range treatments in civil, agricultural, and industrial sectors. It is the flagship model of the Dal Degan range for installation on pick-ups, light trucks, and utility vehicles, developed for professional operators requiring high autonomy, application precision, and maximum target coverage. The supporting structure is made of hot-dip galvanized steel, an industrial-grade construction solution that ensures high corrosion resistance and long operational life. The frame is designed for lifting via forklift, allowing for rapid mounting and dismounting from the carrier vehicle and transforming Eco Pick Spray into a truly professional demountable unit. The unit is equipped with a 28 HP twin-cylinder Lombardini Diesel engine and a Comet APS41 pump with FKM/FPM (Viton® family) membranes, capable of delivering up to 41 L/min with a maximum pressure of 30 bar. The system includes a self-cleaning filter, pressure regulator, brass anti-acid agitator, and glycerin pressure gauge, ensuring reliability and precision even during the most intensive work cycles. The technological heart of the machine consists of the remote-controlled adjustable nebulizer cannon, installed on a Dal Degan rotating slewing ring and operable directly from the vehicle cabin. The cannon head can rotate up to approximately 280° horizontally and 250° vertically, allowing for precise treatment of trees, facades, green areas, attics, industrial plants, and areas difficult to reach with traditional systems. The effective range between 25 and 28 m allows for effective intervention even on high and distant targets. The 400 or 600 L main tank is complemented by an independent 55 L circuit-washing tank and an 18 L hand-washing tank, increasing operator safety and simplifying maintenance and cleaning operations after treatment. Thanks to the combination of power, autonomy, and precision, Eco Pick Spray represents an ideal solution for professional pest control operators, municipal administrations, multi-service companies, civil protection, environmental services, and large livestock farms, proving particularly effective in tiger mosquito control programs, urban sanitization, livestock farm disinfection, and wide-range phytosanitary treatments.

Fields of Application

Urban pest control for cities, neighborhoods, and historic centers
Mosquito control for municipal administrations
Adulticide and larvicide treatments in public areas
Sanitization of large public and private surfaces
Disinfection of livestock farms and shelters
Phytosanitary treatments for public parks and roadside trees
Pest control for industrial areas, depots, and warehouses
Civil protection interventions for health emergencies
Treatments for tall tree canopies thanks to the 25-28 m range

Technical Data

TYPE	PROFESSIONAL UNIT FOR URBAN PEST CONTROL
MAIN TANK CAPACITY	400 – 600 L
TANK MATERIAL	RED POLYETHYLENE, SMOOTH INTERNAL WALLS
TANK DRAINING	TOTAL, CONVERGING BOTTOM AT THE CENTER

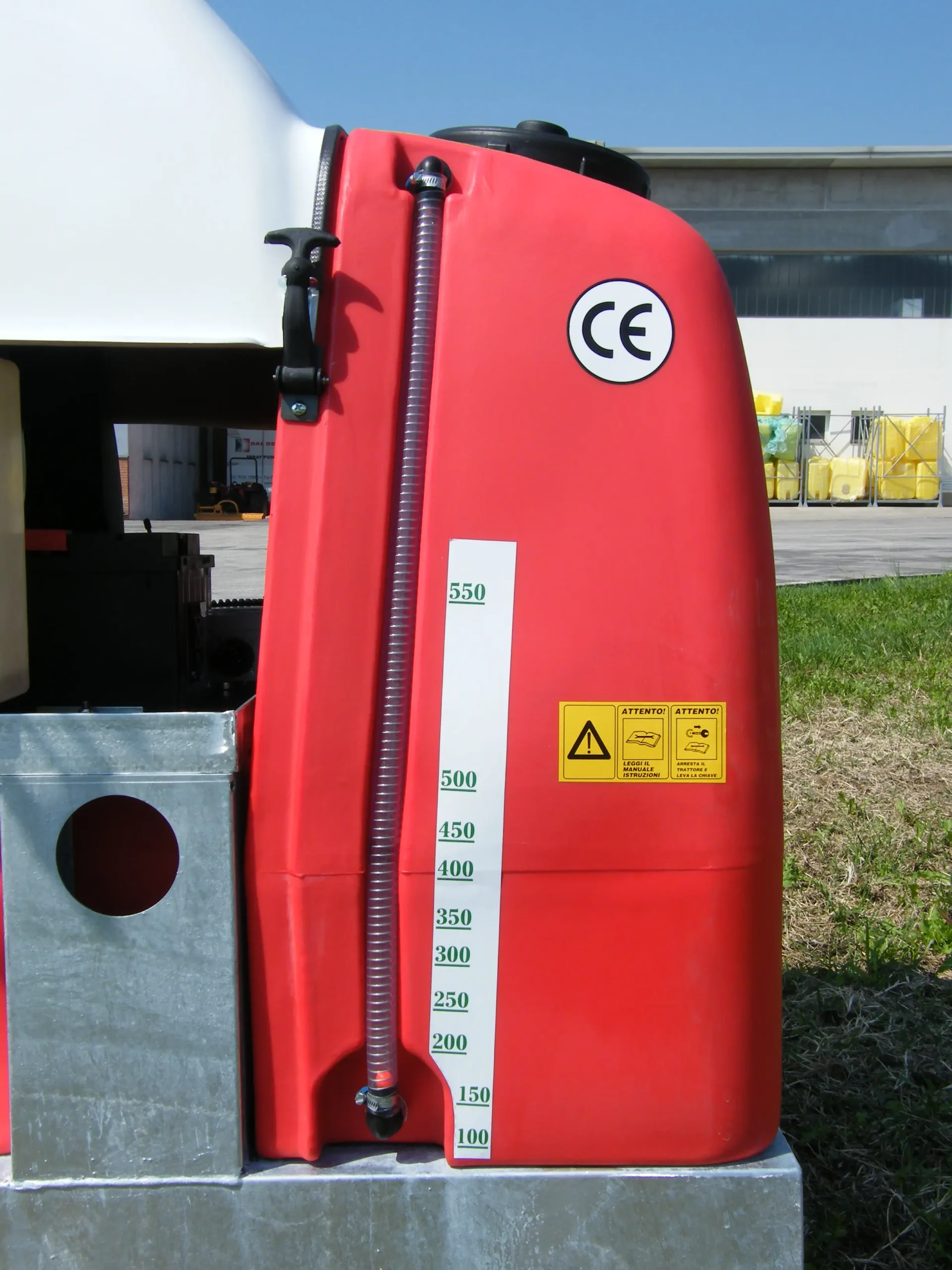

LEVEL INDICATOR	COMMUNICATING VESSELS
CIRCUIT WASHING TANK	55 L, INTEGRATED AND INDEPENDENT
HAND WASHING TANK	18 L, INTEGRATED AND INDEPENDENT
ENGINE	LOMBARDINI DIESEL, 2 CYLINDERS, 28 HP AT 3,000 rpm
ENGINE COOLING	12V ELECTRIC
SILENCING	YES
DIESEL TANK	20 L IN POLYETHYLENE
PUMP	COMET APS41 WITH GEAR REDUCER
PUMP FLOW RATE	41 L/min
MAX PUMP PRESSURE	30 BAR
PUMP DIAPHRAGMS	3, IN VITON
ENGINE-PUMP TRANSMISSION	BELT DRIVEN
PUMP FILTER	SELF-CLEANING
AGITATOR	IN ACID-RESISTANT BRASS
PRESSURE GAUGE	0 – 80 BAR GLYCERIN-FILLED
FRAME	HOT-DIP GALVANIZED STEEL SECTIONS
DEMOUNTABILITY	FORKLIFT TINE POCKETS
ENGINE-PUMP SUPPORT	ON ANTI-VIBRATION MOUNTS
ENGINE-PUMP COVER	FIBERGLASS REINFORCED RESIN
FAN	CENTRIFUGAL TURBINE
CANNON HEAD	FLEXIBLE M30, OMNIDIRECTIONAL ORIENTATION
CANNON HEAD ORIENTATION	~280° HORIZONTAL – 250° VERTICAL, ON BALL BEARING SLEWING RING
CANNON HEAD CONTROL	REMOTE CONTROL FROM THE VEHICLE CABIN
NOZZLES	4 BRASS, DOUBLE DELIVERY, ADJUSTABLE, ANTI-DRIP, WITH SHUT-OFF
INTERNAL SEALS	VITON
EFFECTIVE RANGE	25 – 28 m
CONTROL UNIT	STARTING, PROGRESSIVE ACCELERATION, MOTORIZED VALVE, CONTROL LIGHTS
OPTIONAL HOSE REEL	MANUAL ON SEALED BEARINGS, 50 m HOSE Ø 10 X 19 AT 75 BAR, MITRA SPRAY GUN FOR TALL TREES
OVERALL DIMENSIONS	90 X 130 X 160 cm (without accessories)
EMPTY WEIGHT	360 kg (without accessories)
COMPLIANCE	CE DECLARATION
DOCUMENTATION	USE AND MAINTENANCE MANUAL
WARRANTY	12 MONTHS FROM DELIVERY

Benefits

Professional unit for urban pest control and long-range treatments

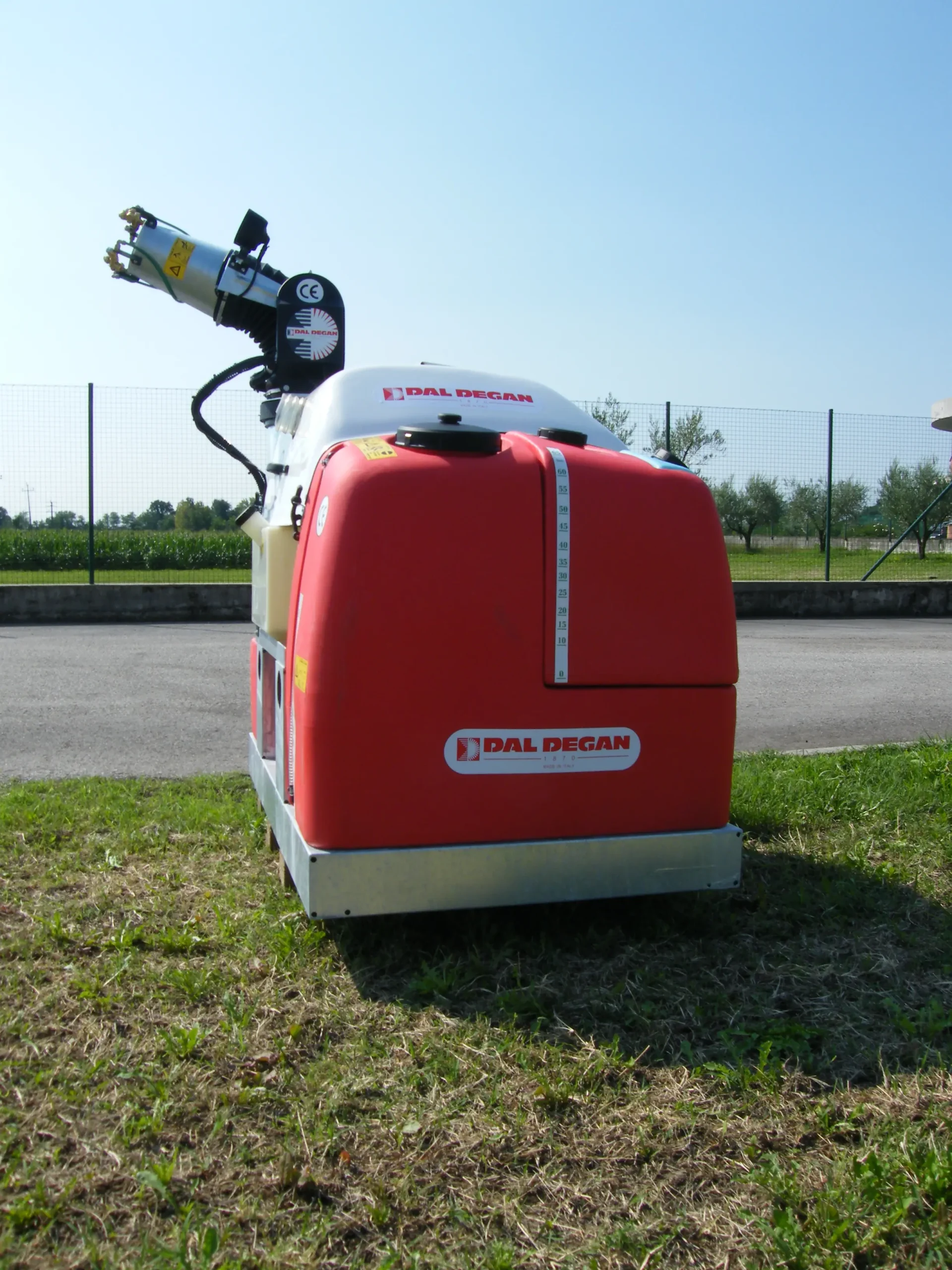

400 or 600 liter main tank in red polyethylene, smooth internal walls
Tank bottom converging at the center for total drainage
Integrated 55 liter circuit washing tank, independent from the main one
Integrated 18 liter hand washing tank, independent from the circuit washing tank
Lombardini Diesel 2-cylinder engine, 28 HP at 3,000 rpm, air-cooled, silenced
12V electric start, 20 liter polyethylene diesel tank
Comet APS41 pump with gear reducer, 41 L/min, 3 VITON diaphragms, maximum pressure 30 bar
Belt-driven engine-pump transmission

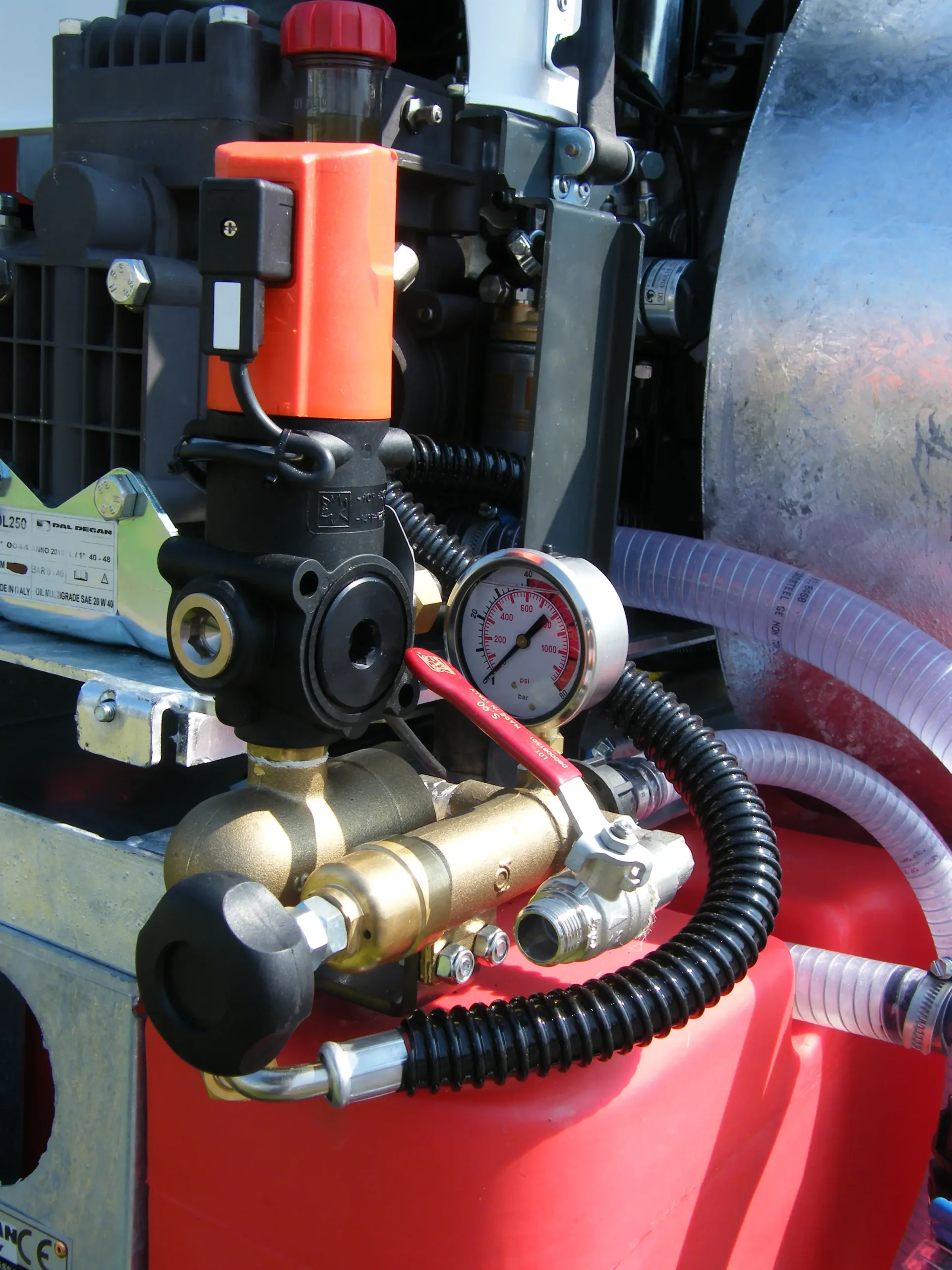

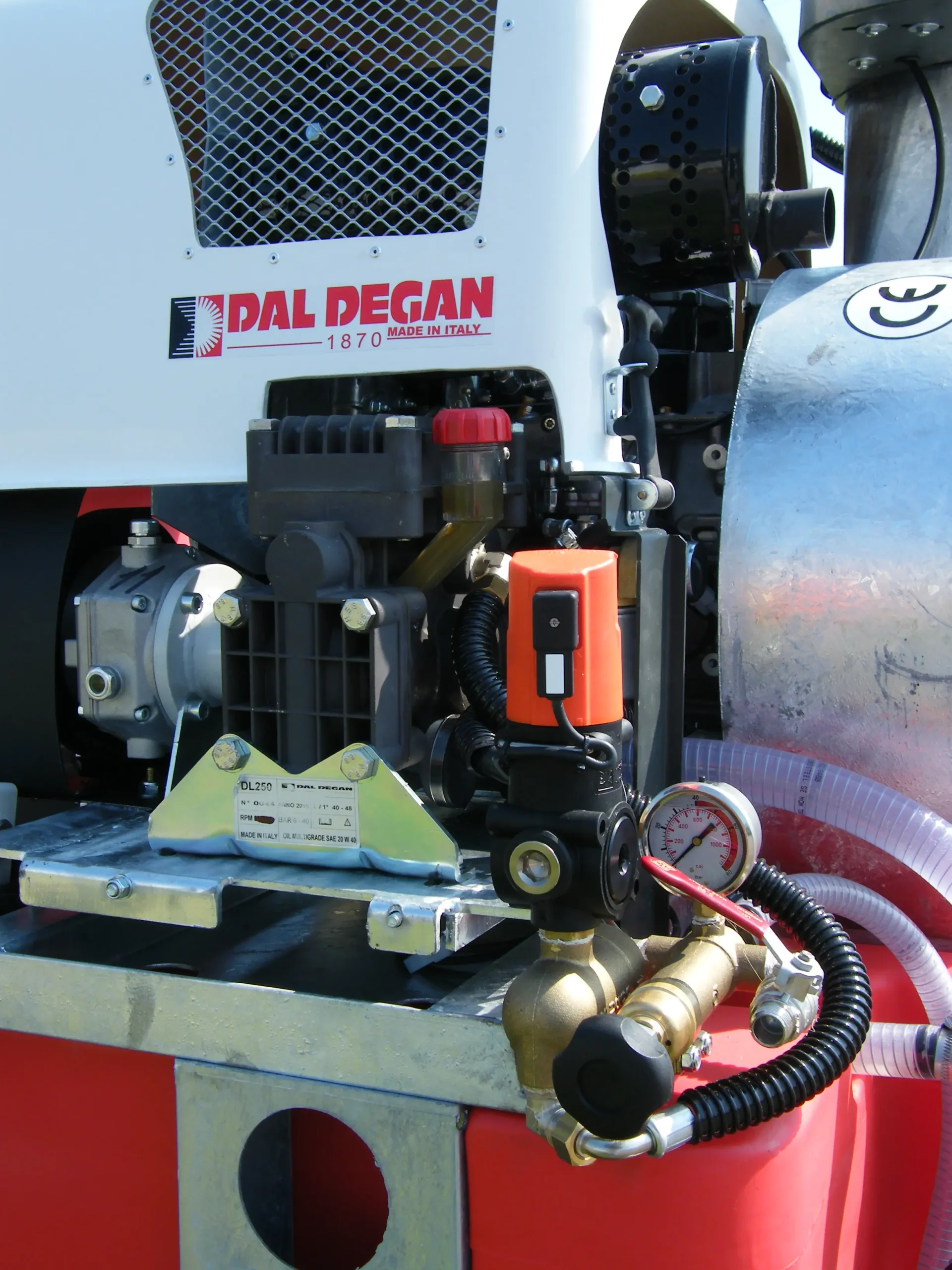

Pressure regulation valve, self-cleaning filter, acid-resistant brass agitator
0-80 bar glycerin-filled pressure gauge
Frame in hot-dip galvanized steel sections
Forklift tine pockets: complete demountability of the equipment
Engine-pump support on anti-vibration mounts
Engine-pump cover in fiberglass reinforced resin

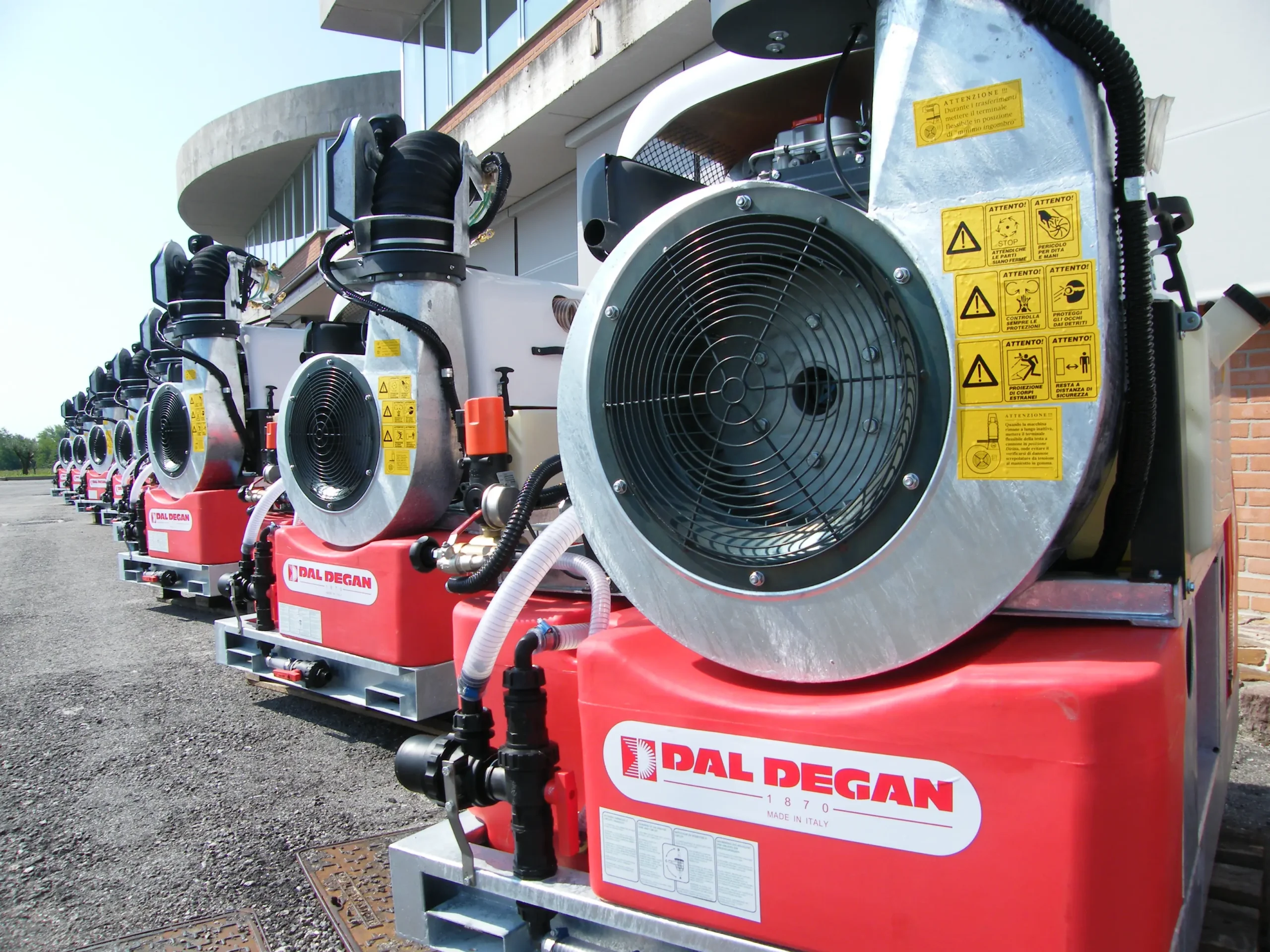

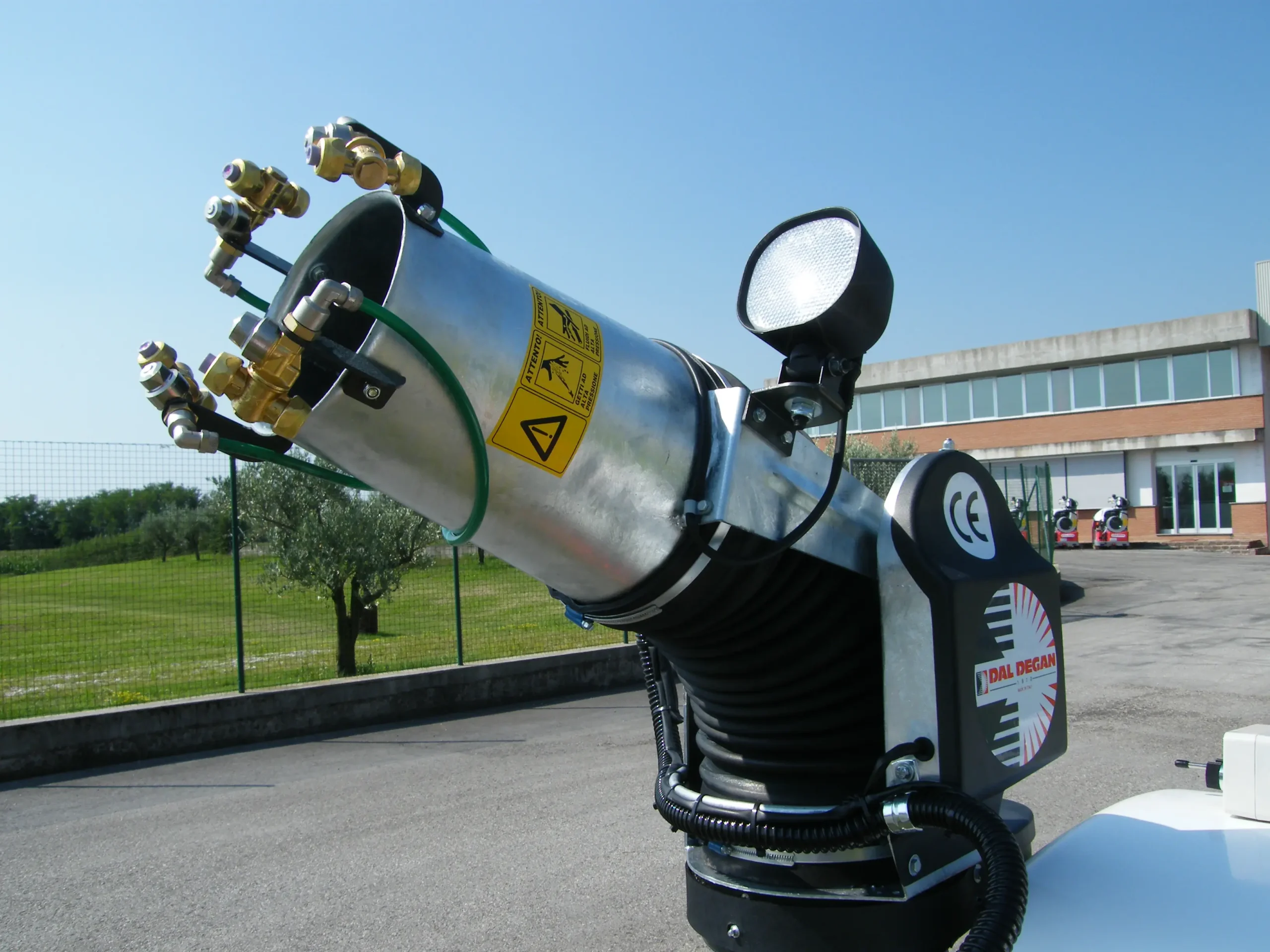

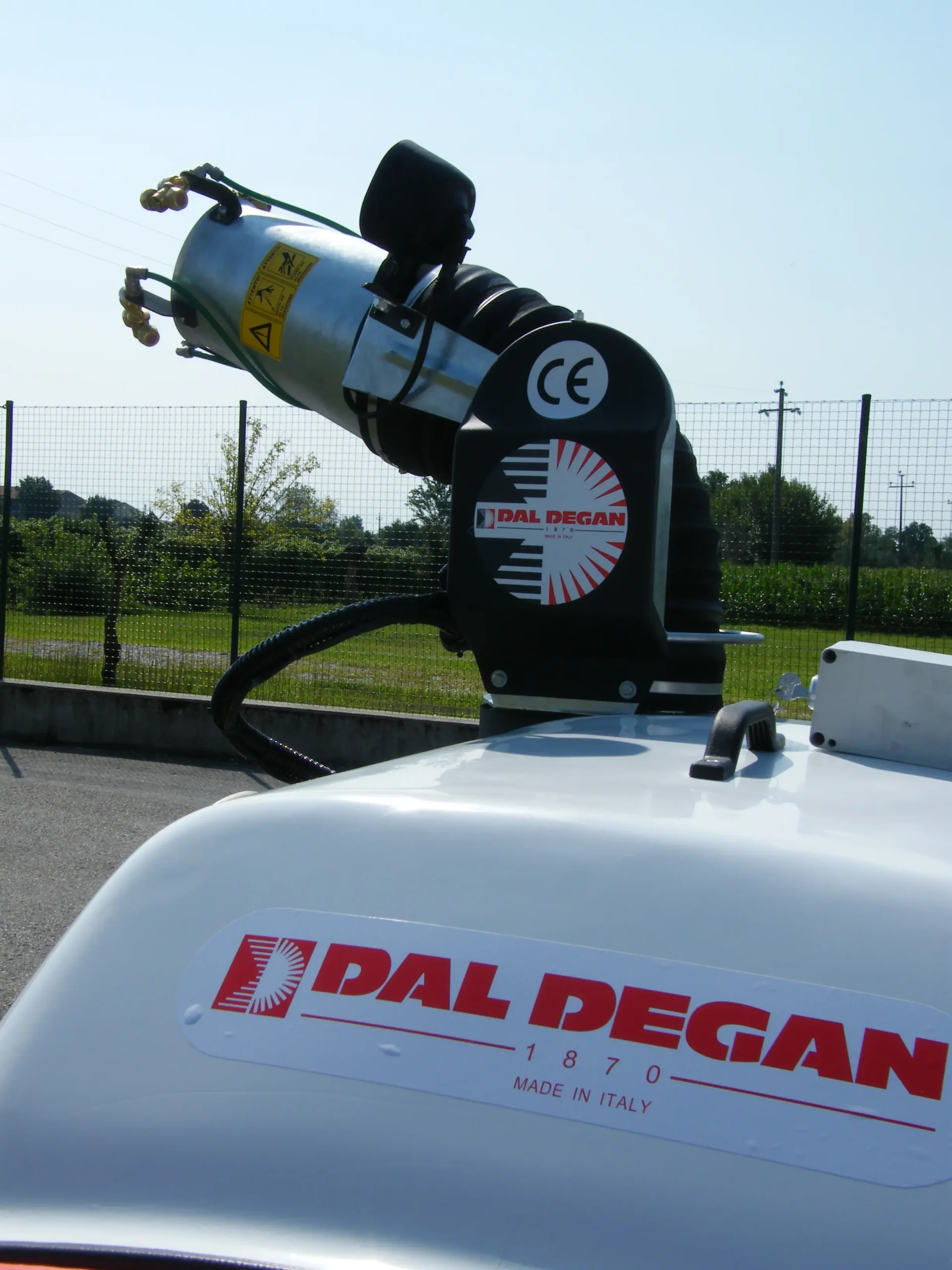

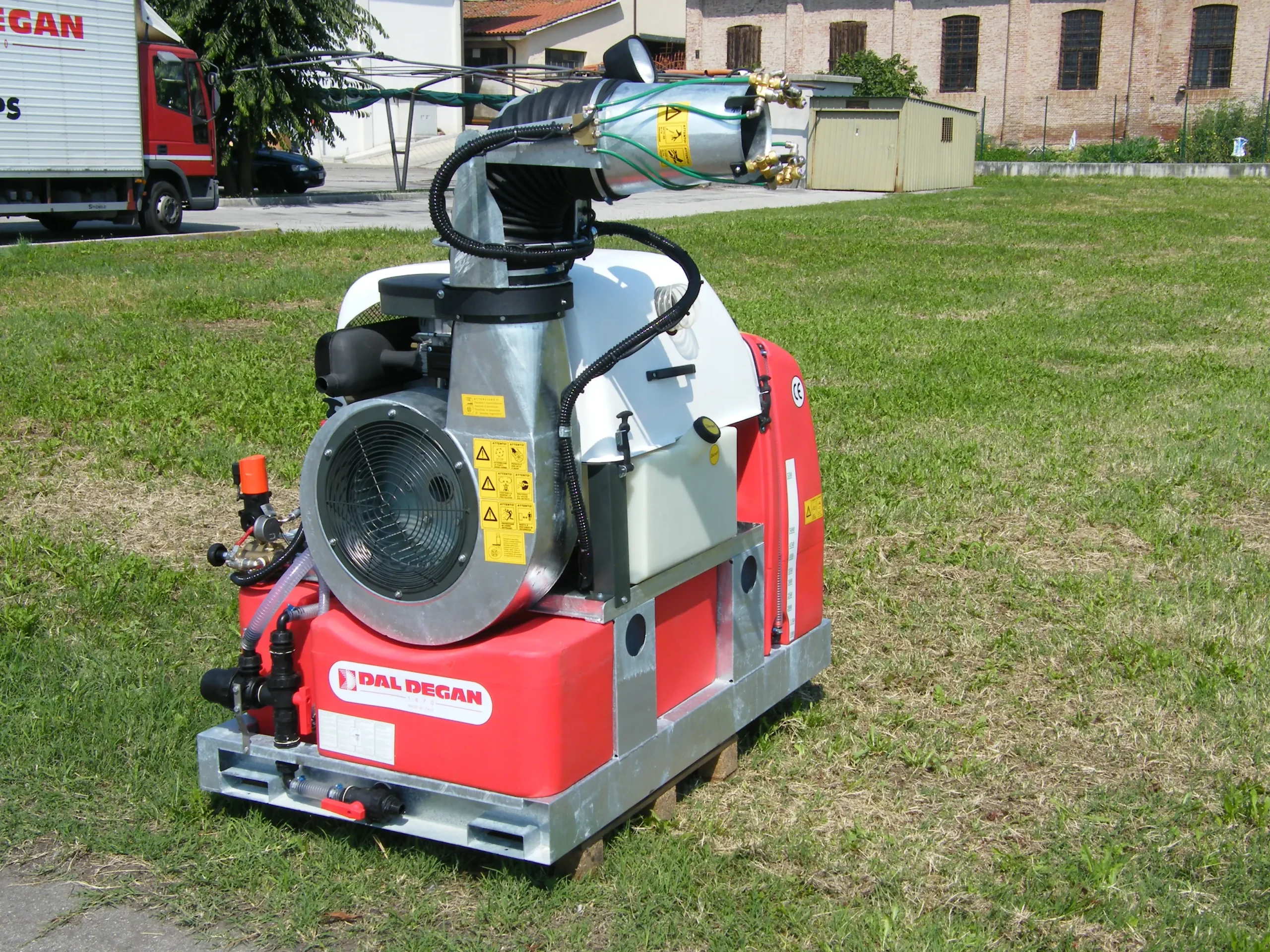

Centrifugal turbine fan with M30 flexible cannon head
Cannon head orientation: ~280° horizontal, 250° vertical

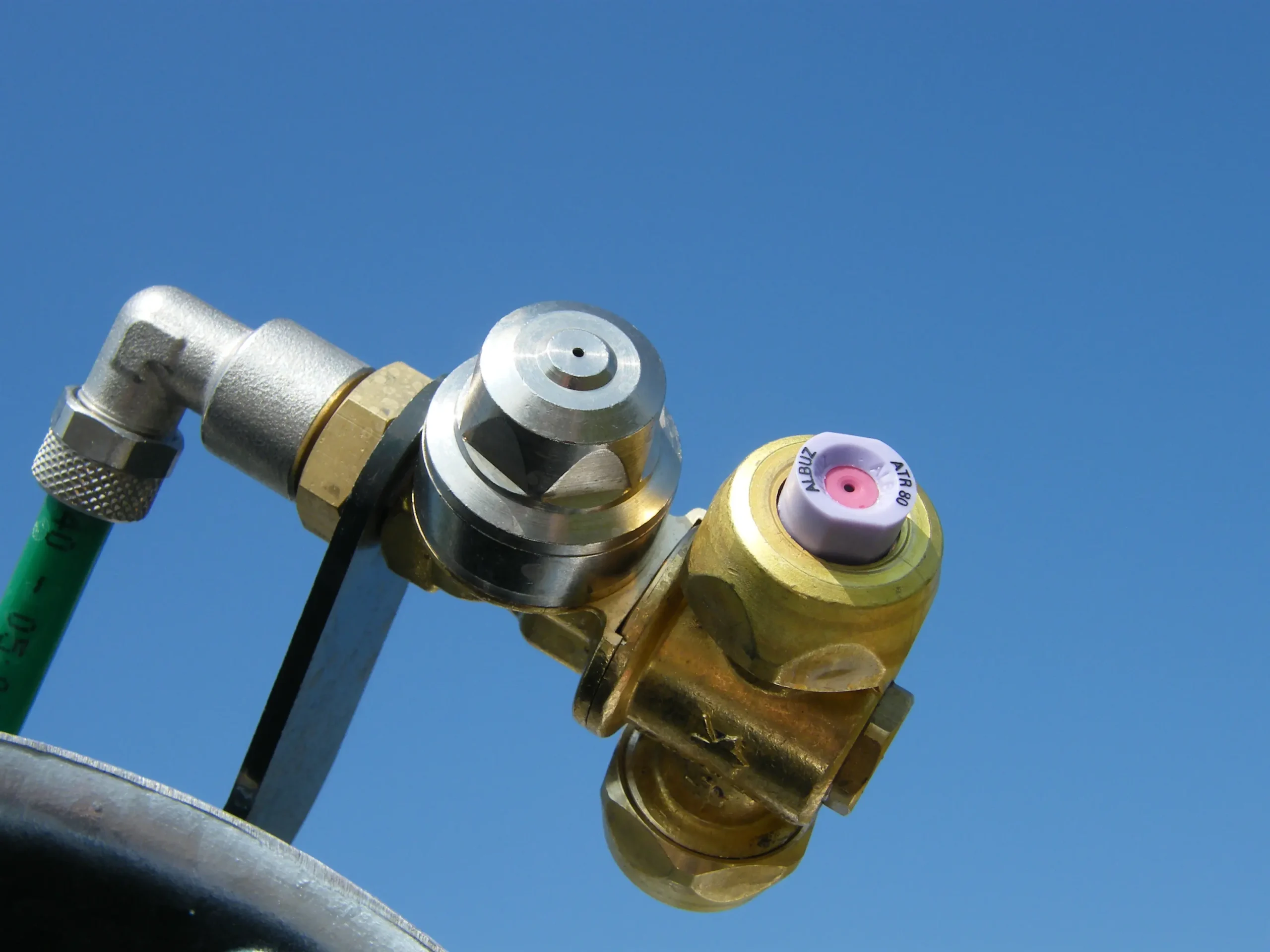

4 brass double-delivery nozzles, adjustable and closable, with anti-drip device
Internal VITON seals
Effective range: 25-28 meters
Control unit with starting, progressive acceleration, motorized valve opening/closing, and control lights

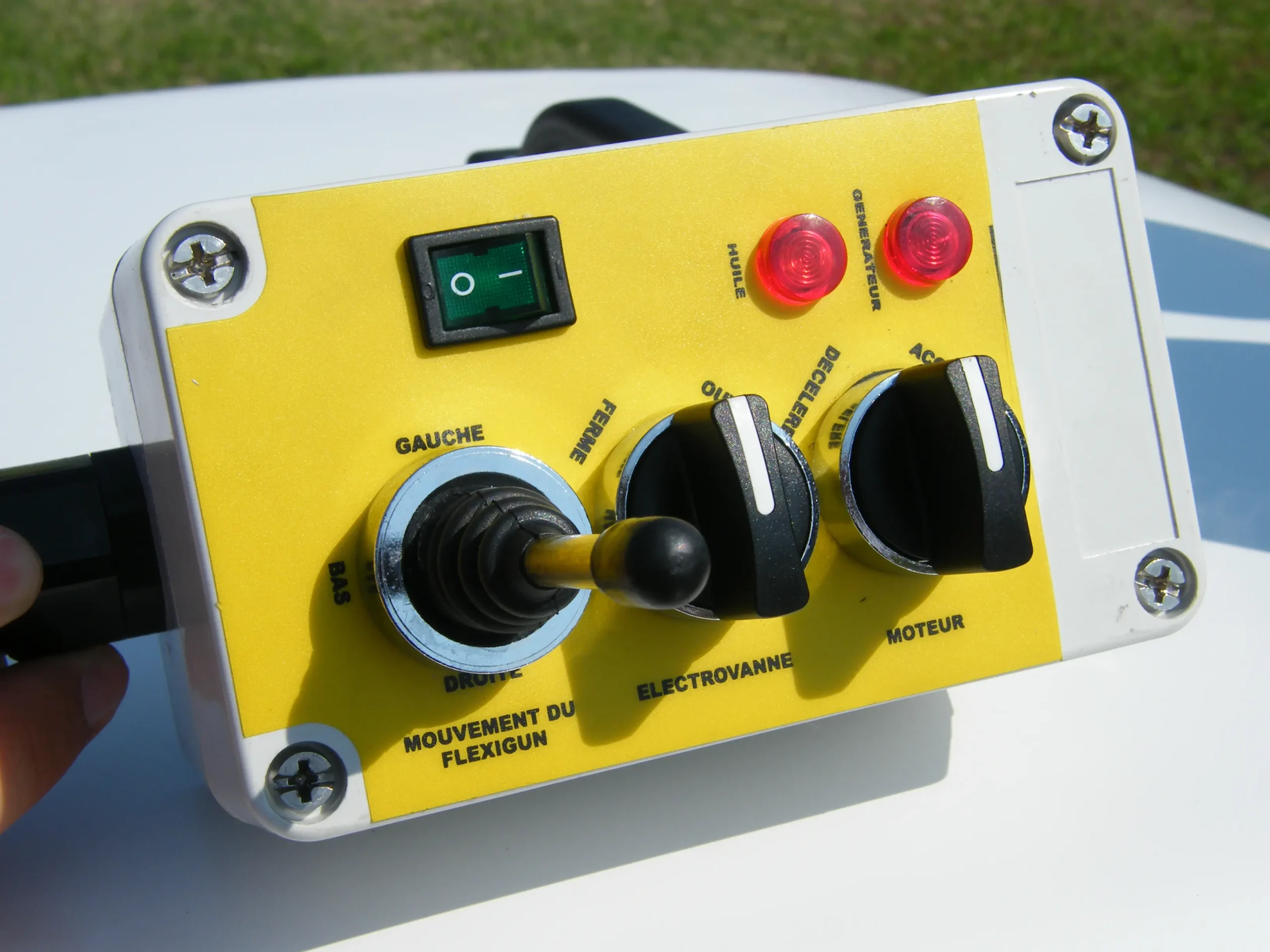

Remote control for cannon head management from the carrier vehicle cabin

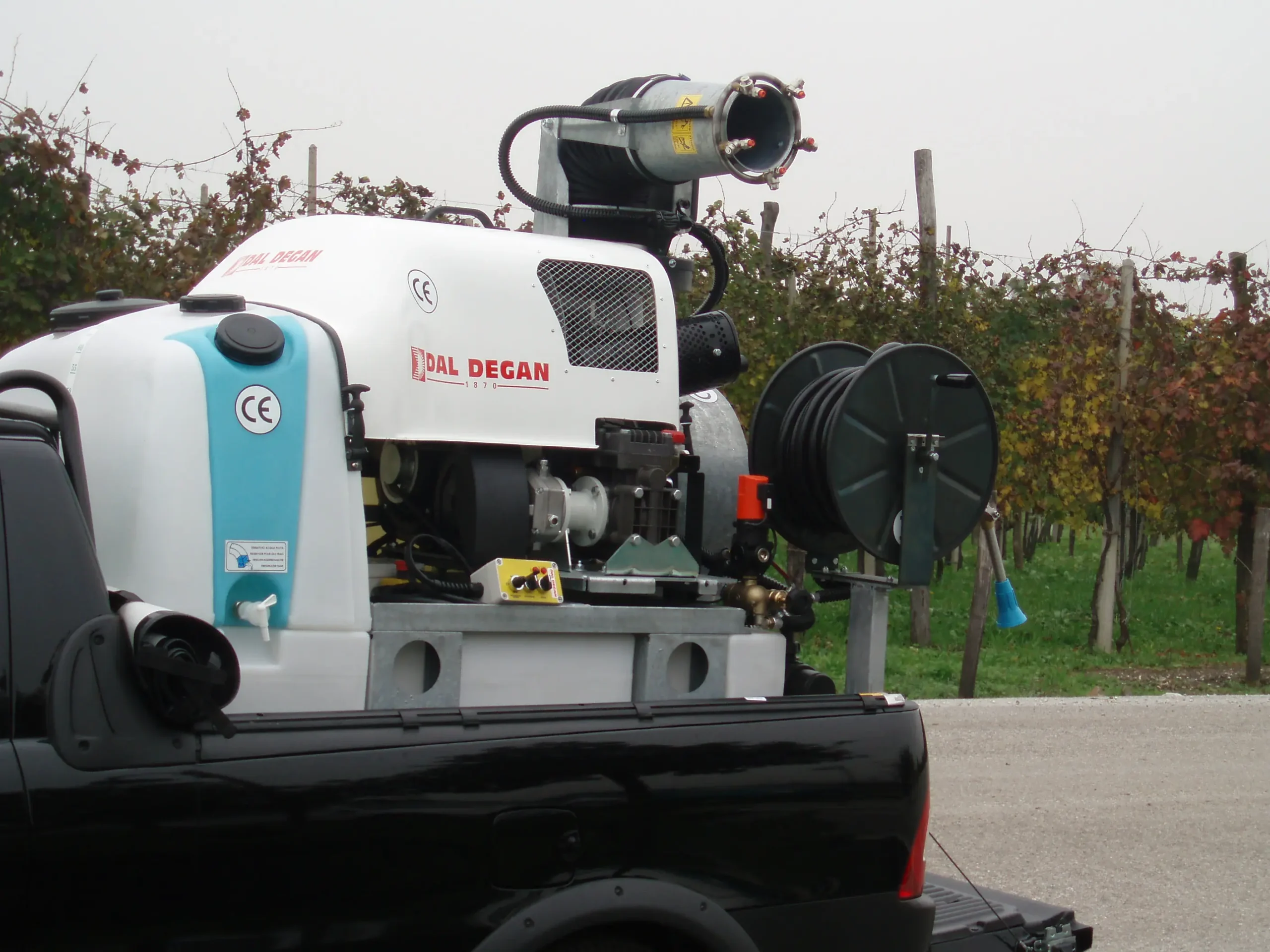

Optional: manual hose reel with 50 m of Ø 10×19 hose at 75 bar and Mitra spray gun for tall trees
CE compliant, complete with use and maintenance manual
